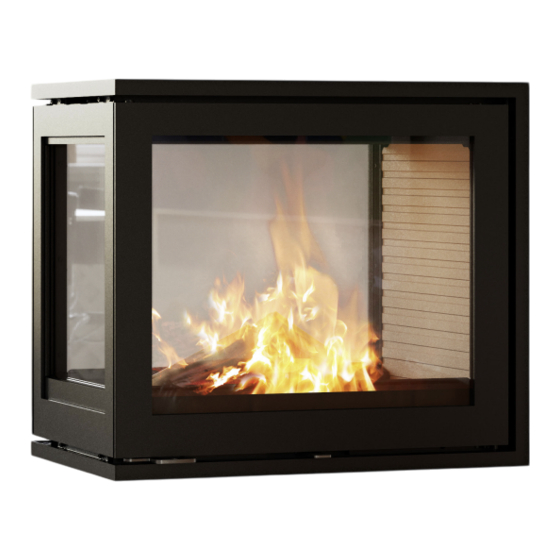

- Page 1 R600RD R600T USER MANUAL (UK)
-
Page 2: Production Number
- so you have all the information together in case of any enqui- ries. INSERT PRODUCTION NUMBER THIS MANUAL APPLIES TO THE FOLLOWING MODELS: • R600RD • R600T R600RD R600T 2 - EN... -
Page 3: Table Of Contents
CONTENT PRODUCTION NUMBER USER MANUAL WOOD Use approved fuels only ......... . The wood must be dry . - Page 4 CONGRATULATIONS ON YOUR NEW FIREPLACE INSERT Congratulations on the purchase of your new wood-bur- ning stove – and welcome to RAIS or attika! High quali- ty, design and function go hand in hand in the fireplace insert you have selected.
-
Page 5: Wood
WOOD It is important for you to use dry, untreated wood and FUEL TYPE Wood logs light the wood correctly so that you wood-burning sto- ve can operate correctly. Which wood you should use DESIGNATION and how to treat it prior to use are shown below. LENGTH <... -
Page 6: Firing
FIRING RECOMMENDED AMOUNT OF WOOD FOR STOKING LIGHTING YOUR STOVE FOR THE FIRST TIME THE FIRE When you use your stove for the first time, it is best to The recommended amount of wood to burn after light a small fire initially so that it “gets used to” the high lighting depends on your stove model. -
Page 7: Setting The Damper
SETTING THE DAMPER It is worthwhile spending some time finding out how best to operate the damper on your stove. This will en- sure your wood burns as effectively as possible and gi- ves you the most beautiful fire. MANUAL AIR DAMPER ADJUSTMENT The three settings on the damper are adjusted by rota- ting it from side to side. -
Page 8: Lighting Your Stove Correctly
LIGHTING YOUR STOVE CORRECTLY IGNITION AND REFUELLING - ”TOP-DOWN” BURNING Follow the instructions 1-5 below for correct ignition and use of the stove. You should never open the door when the flames are high, as they can damage the paint on the stove. Begin by stacking 12 pieces of split firewood in layers of four at the bottom of the stove. - Page 9 LIGHTING YOUR STOVE CORRECTLY Set the air damper to the open position. Light the fire by igniting the two ignition bags pla ced between the layers. Igniting the ignition bags NOTE! - It is important to get the wood burning quickly. When the fire has a firm grip on the sticks, set the air damper to the centre position.
- Page 10 LIGHTING YOUR STOVE CORRECTLY When the last flames have died and there is a nice layer of embers, add two to three pieces of wood. Only add new firewood when there are only embers in the stove, NOT when there are flames and while the fire is in full flame.
-
Page 11: Distance To Furniture
DISTANCE TO FURNITURE DISTANCE TO FURNITURE R600RD R600T Ensure that flammable objects (e.g., furniture) are not closer than the distances specified in the table (fire risk). MODEL DISTANCE TO FURNITURE (MIN.) R600RD 1000 mm R600T 1000 mm WARNING It is important to observe these distances to combustible material as radiation, especially through glass surfaces, can ignite flammable objects around the stove. -
Page 12: Combustion Chamber
COMBUSTION CHAMBER CLEANING THE FLUE It is important to regularly clean the stove and the flue Remove the upper smoke deflector plate by lifting it up to check for blockages before lighting. Especially before on one side and tilting it down on the other side. a new firing season, after a longer period without using the fireplace insert. -
Page 13: Cleaning Your Stove
Ashes are disposed of with normal house- hold waste. GLASS All RAIS and attika stoves come with a glass system, which means that hot air flows down over the glass and removes any soot residues. This happens when the fire is burning correctly and there is a high level of combus- tion in the stove. -
Page 14: Maintaining Your Stove
MAINTAINING YOUR STOVE CHECKING THE CHIMNEY REPLACING SEALS The chimney is what makes your stove work. Remem- Inspect your stove for damage regularly, both inside and ber – even the best stove will not work perfectly unless out, in particular the seals and heat insulating plates. the chimney is drawing correctly and to the necessary The seals must be replaced if they are worn or fractured. -
Page 15: General Information On Your New Stove
Be aware that all exterior surfaces will be hot, so As regards the environment, all RAIS stoves do of cou- do not touch the stove when it is lit. rse meet the very strictest requirements in terms of efficiency and discharge of residual particles, and they... -
Page 16: Nominal Test
NOMINAL TEST GUIDE TO NOMINAL TEST FIRING 1,8 kg Perform the test as described below if you want to do a nominal test firing. Follow the instructions 1-3 be- low for ignition and pre-firing before test firing, where 230 mm the results are measured. -
Page 17: Test Firing
NOMINAL TEST TEST FIRING Place 3 pieces of birch wood without bark with a total weight of approx. 1.8kg (two 650g and one 500g). The wood should have a length of 230 mm and a square cross-section. Set the damper to fully open for 1-2 mi- nutes, then to the centre position for 30 seconds. -
Page 18: Technical Data
Intermittent operation (INT) Fuelling time Recommended wood quantity when filling (Divided into 2-3 pieces of firewood) The diameter of the flue pipe collar 721/846/416 (R600RD) L, H, W Overall dimensions of the appliance (length, height, width) 758/846/416 (R600T) 595/465/274 Combustion chamber... - Page 19 TECHNICAL DATA Set-up distances R600RD R600T Minimum distances from the rear to combustible material 1000 1000 Minimum distances from the sides to combustible material Minimum distances from the top to combustible material at the ceiling Minimum distances from the front to combustible material (Di-...
-
Page 20: Frequently Asked Questions - Faq
Many queries or issues relating to the use of stoves are down to local conditions (such as draughts, for example) room. If you are experiencing a problem for which no answer is given here, please contact your RAIS/attika dealer. 20 - EN... -
Page 21: Warranty
For safety reasons, do not make unauthorised modifications to the stove. Only recommended spare parts may be used. The stove has been tested and approved with the recommended spare parts, and therefore RAIS/attika cannot be held responsible for safety in the event of modifications that contravene the recom- mendations. -
Page 22: Downcycling
DOWNCYCLING DOWNCYCLING When your oven is no longer usable in the distant futu- re, it is important that it is sorted correctly. Below is an overview to help you on your way. A deeper description of the symbols can be found via the QR code Ceramic glass Brass Cast iron... -
Page 23: Spare Parts
If you need new spare parts for your product, you can scan the QR code to see which spare parts we offer. If spare parts other than those recom- mended by RAIS are used, the warranty will be cancelled. All interchan- geable parts can be purchased as spare parts from your RAIS dealer. - Page 24 Article number: 23-6511GB RAIS A/S Industrivej 20 9900 Frederikshavn Denmark www.rais.com...
