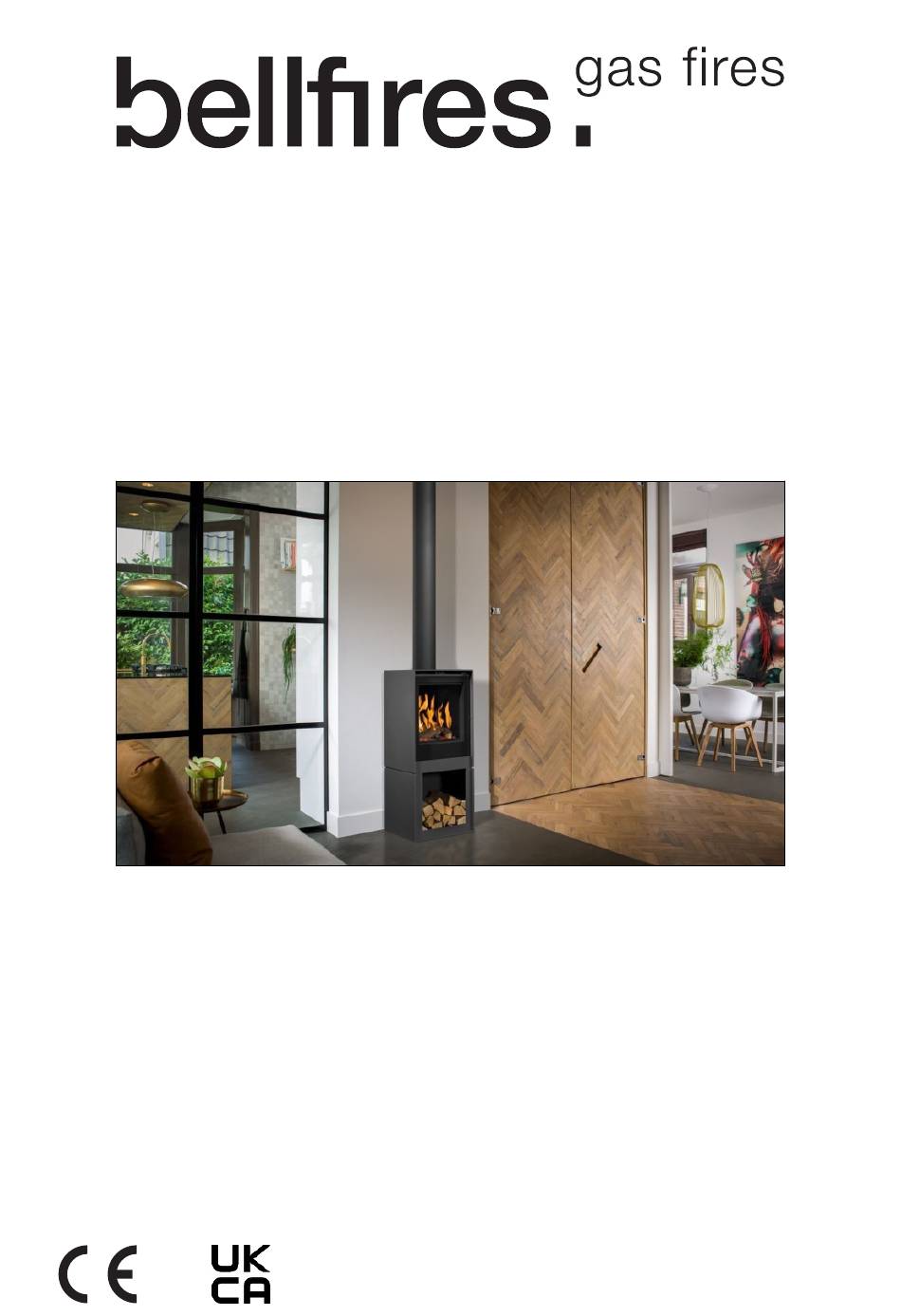

  • Page 1 User manual Box Gas 45 MF Serial number: Production date:...
  • Page 2 Barbas Bellfires BV.This document could contain technical inaccuracies or typographical errors. Barbas Bellfires BV reserves the right to revise this document from time to time in the contents thereof.

  • Page 3: Table Of Contents

    Contents Contents About this document................5 How to work with this document....................5 Warnings and cautions used in this document................5 Related documentation........................ 5 Description....................6 Intended use..........................6 Overview of the appliance......................6 Overview of the remote control....................7 2.3.1 Overview of the buttons....................8 2.3.2 Overview of the display.....................
  • Page 4 Contents Troubleshooting..................24 Troubleshooting table........................ 24 Troubleshooting procedures...................... 24 6.2.1 Replace the batteries of the remote control..............24 Technical data..................26 Technical specification / Product fiche..................26 Warranty Terms..................28 EU-Declaration of Conformity..............30 Box Gas 45...

  • Page 5: About This Document

    • Do basic maintenance This document refers to the Box Gas 45 MF as 'the appliance'. This document is an essential part of your appliance.Read it carefully before you do work on the appliance. Keep it in a safe place.

  • Page 6: Description

    Description Description Intended use Only use the appliance to heat the room in which the appliance is installed. Do not use the appliance for a different purpose. Overview of the appliance Box Gas 45...

  • Page 7: Overview Of The Remote Control

    Description Item Description The heat resistant glass keeps the flue gas- Glass ses inside the appliance and closes the com- bustion chamber off Burner bed Top side of the gas burner and grate Pilot light burner Provides a pilot light A decorative casing around the combustion Box (Optional with a storage module) chamber and control unit...

  • Page 8: Overview Of The Buttons

    Description 2.3.1 Overview of the buttons Item Description Display The display of the remote control. On/off To start and stop the appliance. Countdown timer To set to countdown timer mode. Thermostatic mode To set to thermostatic mode. To set different options. Program mode To set to program mode.

  • Page 9: Overview Of The Display

    Description 2.3.2 Overview of the display Item Description To show that the remote control is locked, so children cannot use Child proof Countdown timer To show that the countdown timer is set. Program mode To show that the program mode is set. Program number To show that program 1 or 2 is active Temperature...

  • Page 10: Program Mode

    Description 2.4.2 Program mode In this mode you can set two different programs. You can use these programs to start and stop the appliance at a set temperature on specific times and days. 2.4.3 Eco mode In this mode the flame height changes between minimum and maximum height for the duration of a cycle: •...

  • Page 11: Overview Of The Fan/Light Module

    Optionally, a wifi-box can be connected to the Connection for a wifi-box (SI) receiver to control the appliance with a smart- phone or tablet with the Bellfires app. Connection for the fan/light module (MOD- To control the light function and optionally to...

  • Page 12: Safety

    Safety Safety Safety devices on the appliance Name Description Prevents unforseen discharge of gas from the main Thermo-electric pilot light shut off burner. If an overpressure occurs in the appliance, the door opens for a short duration. When the door opens, a Overpressure door loud noise can occur.
  • Page 13 Safety • Dispose of batteries as chemical waste. • Dispose of ceramic heat-resistant glass as household waste. Do not dispose of ceramic heat-resistant glass in a glass recycling container. • Dispose of an obsolete appliance according to instructions of the authorities or the fitter.

  • Page 14: Operation

    Operation Operation Preparation before first use 4.1.1 Do a check on the appliance Make sure that the appliance is not damaged. Make sure that the glass is not damaged. Make sure that the pilot light operates correctly. 4.1.2 Prepare the appliance Warning: •...

  • Page 15: Set The Remote Control Settings

    Operation Note: • The main burner burns at maximal height after start-up. • If the pilot light goes out and you start the appliance too early, the remote control will start but the fire will not burn. Restart the remote control. •...

  • Page 16: Operate The Appliance

    Operation Operate the appliance 4.3.1 Operate the appliance with the remote control Table 1: Start and stop the appliance Action Preconditions Steps Result The remote control • You hear a short Start the appliance is set to the one-but- beep. with one-button opera- ton operation.
  • Page 17 Operation Table 2: Set the appliance to different modes Action Preconditions Steps Result Set the appliance to Push and hold stand-by mode until only the pilot light burns You can only use the off function of the remote control. Push Start the child proof mode at the same...
  • Page 18 Operation Action Preconditions Steps Result Start the countdown timer mode Push Stop the countdown timer mode Push Table 3: Start and stop the rear burner Note: When you start the appliance also the rear burner is automatically set to maximum. Note: When the batteries of the receiver are empty, the rear burner will stay in the last selected setting.
  • Page 19 Operation   Table 4: Adjust the flame height Note: When you start the appliance the flame height is automatically set to maximum. Action Preconditions Steps Result Decrease the flame Push and hold height until you have the de- sired flame height Increase the flame Push and hold height...
  • Page 20 Operation   Table 5: Start and stop the light and adjust the brightness Note: The Light works independently of the Pilot flame. Note: If the main burner and pilot light are switched off, with button , the light will switch off automatically. Action Preconditions Steps...

  • Page 21: Change The Settings

    Operation Note: To save energy, the pilot-flame automatically extinguishes when the appliance is not used for a period of 5 days. To avoid this, make two automatic start- 4.4.2 stop actions per week in program mode. See chapter Change the settings 4.4.1 Set the temperature for the thermostatic mode Push and hold the thermostatic mode button until the...

  • Page 22: Set The Countdown Timer Mode

    Operation Select the minutes on which the appliance starts up and push the program mode button. 10. Select the hour and minutes for the stop time of the appliance. 11. If you do not want program 2 active in program mode, wait for the blinking to stop to save the settings.

  • Page 23: Maintenance

    Maintenance Maintenance Maintenance schedule Caution: Clean the glass when it is dirty. If the glass is not cleaned when it is dirty the glass can become permanently dull. Task Frequency Procedure Clean the appliance Daily Refer to section Maintenance by your fitter Yearly Refer to your fitter/dealer Clean the appliance...

  • Page 24: Troubleshooting

    Troubleshooting Troubleshooting Troubleshooting table Problem Possible cause Possible solution The pilot light does not come on after three attempts. The burner does not operate within 10 seconds of firing the • Close the gas supply pilot light. • Contact your fitter. When the burner starts you hear a 'boom' sound.
  • Page 25 Troubleshooting Remove the cover of the remote control. Remove all batteries. Install new batteries. For approved batteries, refer to section Close the cover of the remote control. Box Gas 45...

  • Page 26: Technical Data

    Technical data Technical data Technical specification / Product fiche Table 6: Box Gas 45 MF (MagniFire) - GB, IE, ES, IT Natural gas Butane/ Propane Name Bellfires Bellfires Model Box Gas 45 MF Box Gas 45 MF Country GB, IE, ES, IT GB, IE, ES, IT Product Identification Number...
  • Page 27 Technical data Natural gas Butane/ Propane Auxiliary electricity consump- 0 kW 0 kW tion in standby mode • Preparation manual • Preparation manual The specific precautions that • Installation and mainte- • Installation and mainte- shall be taken when the local nance manual nance manual space heater is assembled, in-...

  • Page 28: Warranty Terms

    Complaints will only be accepted if they are reported to the Bellfires dealer,together with the serial number of the Bellfires appliance which is stated on the frontof the user manual. In addition, the original receipt (invoice, receipt, cash receipt) showing the date ofpurchase must also be submitted.
  • Page 29 Article 5: Warranty period This warranty will only be granted during the warranty period. The body of the Bellfires appliance is guaranteed for a period of 10 years againstconstruction and/or material faults, starting from the moment of purchase. For other parts of the Bellfires appliance, a similar warranty applies from the momentof purchase for a period of two years.

  • Page 30: Eu-Declaration Of Conformity

    EU-Declaration of Conformity EU-Declaration of Conformity Box Gas 45...
  • Page 31 EU-Declaration of Conformity Box Gas 45...
  • Page 32 Your Bellfires dealer 30.01.2024 - 345649 - 26-003...
