Connect a CSG2500 Appliance
This article describes how to connect a Cloud Services Gateway (CSG) 2500 appliance to an AC power source and to a
management console.
Versa Networks recommends that you use an uninterruptible power strategy that prevents power interruptions. A UPS
can isolate unpredictable power outages or blackouts, brownouts, lightning, power surges, or spikes.
Step 1: Connect Earth Ground to a CSG2500 Appliance
1. To ensure proper operation of a CSG2500 appliance and to meet safety and electrostatic discharge (ESD)
requirements, you must connect the appliance to earth ground before you connect power to the appliance.
2. Ensure that the rack is properly grounded and in compliance with ETSI ETS 300 253. Verify that there is a good
electrical connection to the grounding point on the rack and that the grounding point has no paint or isolating
surface treatment.
3. Attach the grounding wire (#18 AWG) to the grounding point on the device's rear panel.
4. Connect the other end of the wire to rack ground.
Caution: The earth connection must not be removed unless all supply connections are disconnected.
Step 2: Connect AC Power to a CSG2500 Appliance
Before you begin connecting AC power to a CSG2500 appliance, ensure that you have:
• Electrostatic discharge (ESD) wrist strap.
https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_2500_Series/Planning_and_Installation/04_Connect_a...

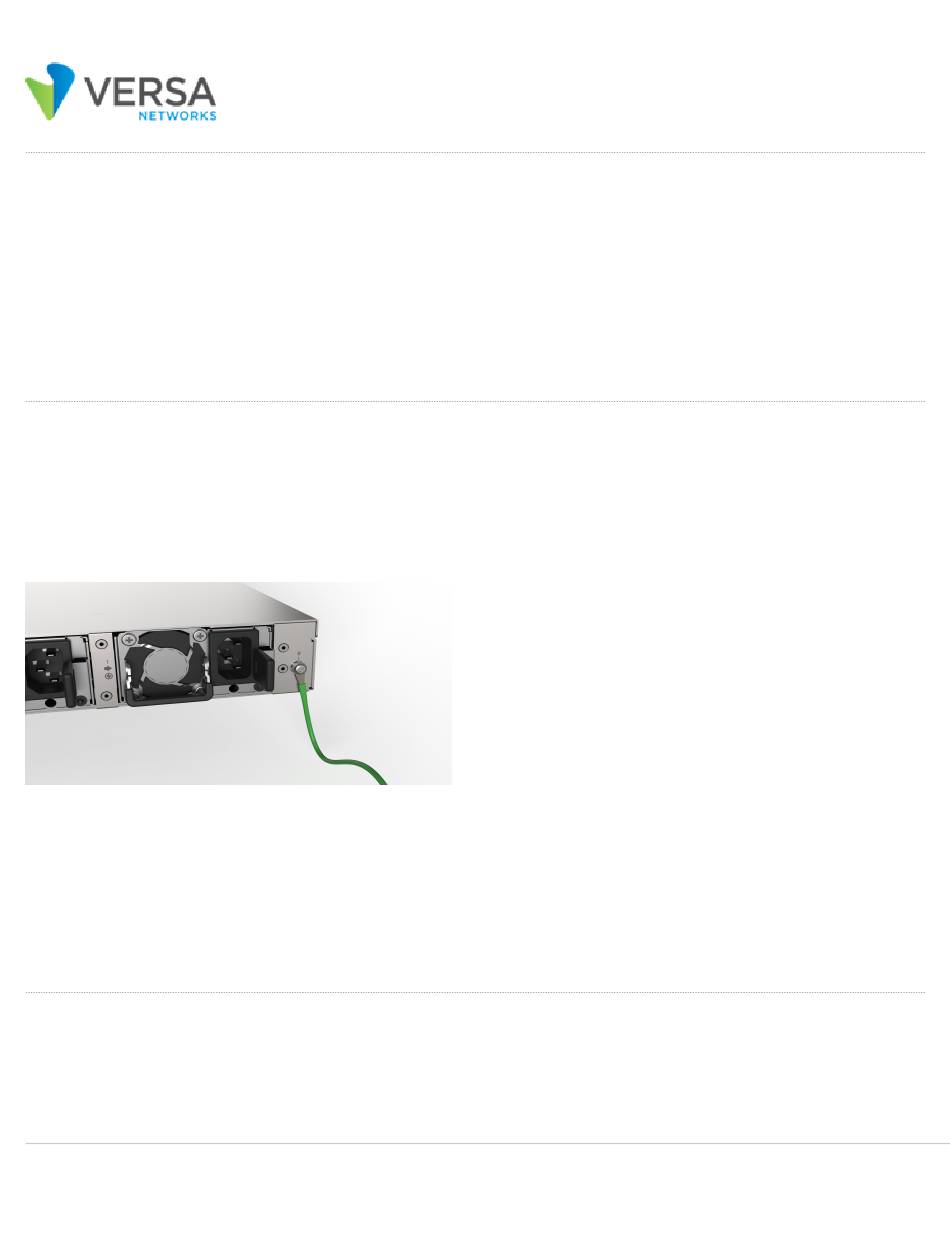

Figure 1: Connect Earth Ground to a CSG2500 Appliance
Updated: Sun, 11 May 2025 21:47:57 GMT
Copyright © 2024, Versa Networks, Inc.
1
Advertisement
Related Manuals for Versa Networks CSG2500
Summary of Contents for Versa Networks CSG2500
- Page 1 Step 1: Connect Earth Ground to a CSG2500 Appliance 1. To ensure proper operation of a CSG2500 appliance and to meet safety and electrostatic discharge (ESD) requirements, you must connect the appliance to earth ground before you connect power to the appliance.
- Page 2 Figure 2: Connect AC Power to a CSG2500 Appliance Step 3: Check that the CSG2500 Appliance Is Powered On To check the CSG2500 appliance is powered on, check that the Power LED is on. When the appliance is operating normally, the power LED is green.
- Page 3 • Parity: None • Flow control: None To connect a management console to a CSG2500 appliance: 1. Open the PuTTY application. The PuTTY configuration window displays. 2. In the Category navigation pane, click Session, and then in the Connection Type menu, click Serial.
- Page 4 4. In the Serial Line To Connect To field, enter the COM port to which your device is connected. The default COM port is COM1. https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_2500_Series/Planning_and_Installation/04_Connect_a… Updated: Sun, 11 May 2025 21:47:57 GMT Copyright © 2024, Versa Networks, Inc.
- Page 5 5. In the Configure the Serial Line section, enter the following information. • In the Speed (Baud) field, enter the digital transmission speed. For CSG2500 appliance, the speed must be 115200 baud. • In the Data bits field, enter the number of data bits used for each character. The recommended value is 8.
- Page 6 6. Optionally, in the Category navigation pane, click Session, and then in the Saved Sessions field, enter a name to save the session settings. 7. Click Save. 8. To open the session, click Open. https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_2500_Series/Planning_and_Installation/04_Connect_a… Updated: Sun, 11 May 2025 21:47:57 GMT Copyright © 2024, Versa Networks, Inc.
- Page 7 9. Log in to the appliance CLI. Please consult Versa technical support for default credentials. https://docs.versa-networks.com/Hardware/Cloud_Services_Gateway_2500_Series/Planning_and_Installation/04_Connect_a… Updated: Sun, 11 May 2025 21:47:57 GMT Copyright © 2024, Versa Networks, Inc.
