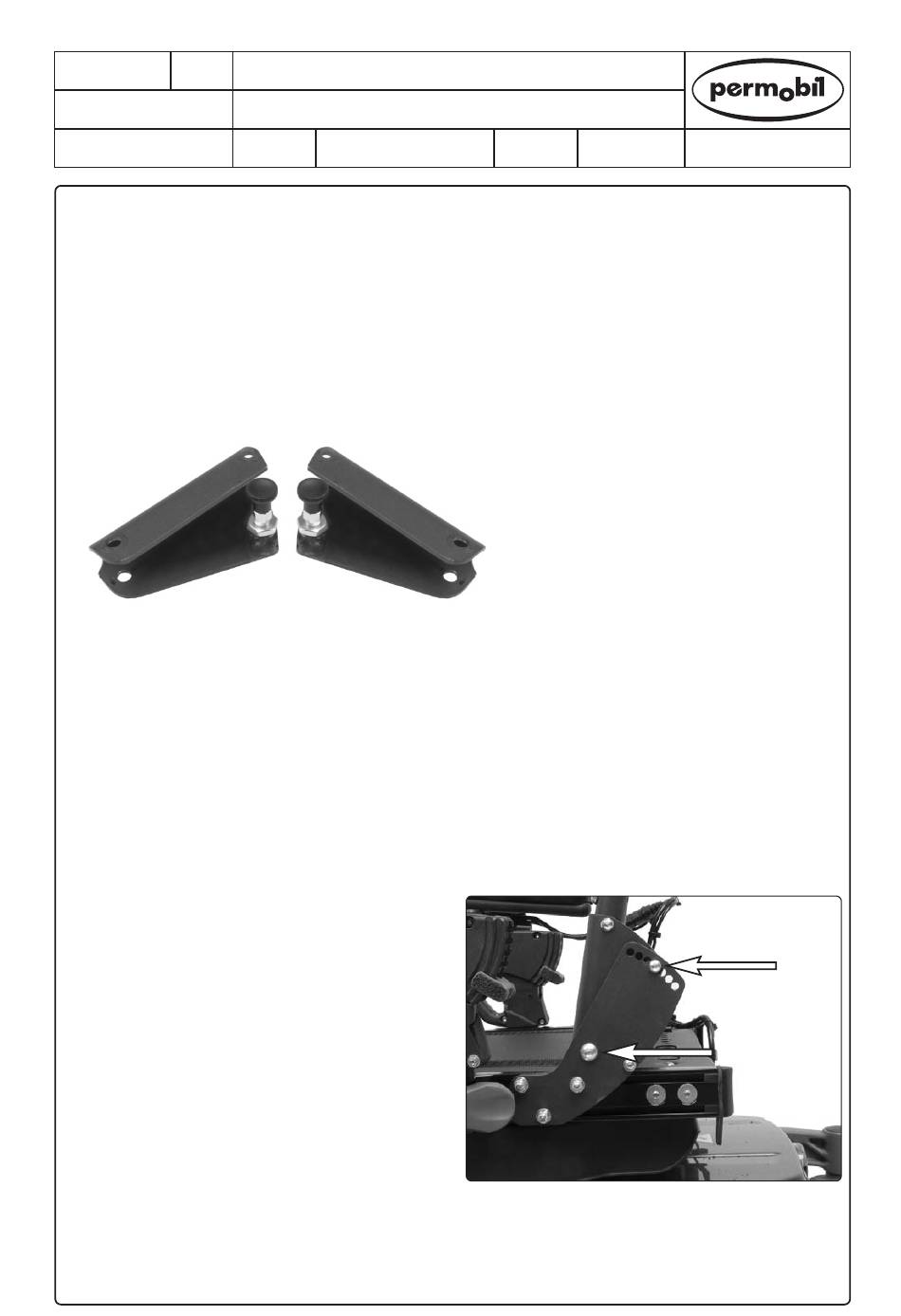

Manual back rest adjustment on PS Junior
Order no.: 104616-99-0
List of parts that should be in the set.
Read the instructions carefully before starting assembly.
Assembly
1. Remove the back rest, it is fitted with two
screws and nuts on the left and right side of
the seat, see fig.
Preform By
Approved Date
ggg
ggggggg ggg
TSN
Approved By
2 st
Back rest bracket with
manual adjustment.
The back rest is fitted with two screw and nuts on
the left and right side of the seat.
Page
1/4
