Sunricher SR-2421-ZG-TY Instruction Manual

Zigbee to DALI+0/1-10V 2 in 1 Converter
Important: Read All Instructions Prior to Installation

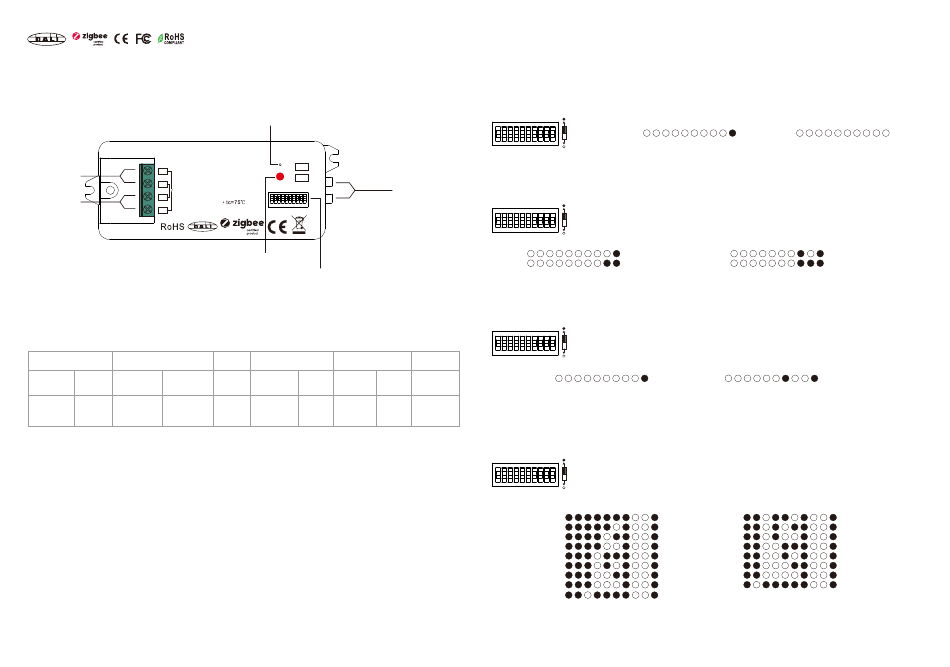

Function introduction
110-240V ZigBee to DALI+0/1-10V
L
2 in 1 Converter with Relay
power input
Input Voltage: 110-240V AC
N
Output Current: 1x5A max
N
Relay output,
ta:-20℃-+50℃
max. 5A
L1
Program key, for network pairing, touchlink and factory reset of the device
Dip switches to select DALI or 0/1-10V output, DALI DT6 or DT8 color type, DALI address
or group control mode, DALI address to be controlled, DALI group to be controlled
Product Data
Input Output, DALI
DALI current
DALI PS
Signal
Power
consumption
current
Zigbee
110-240VAC Max. 50mA Max. 4mA
2.4GHz
• Zigbee to DALI+0/1-10V 2 in 1 converter based on zigbee 3.0
• Zigbee signal input, DALI signal output to DALI line or 0/1-10V signal output, 110-240VAC power input
• With max. 5A relay output and metering function
• Compatible with Tuya Zigbee gateway and controlled through Tuya Smart App
• DALI signal or 1-10V signal output selectable by DIP switch
• Built-in DALI bus power supply, no extra DALI bus PS required
• With max. 50mA DALI bus power current output
• To supply control current to up to 25 DALI control gears
• DALI DT6 or DT8 device type selectable by DIP switch under DALI mode
• Color control according to DALI specifications of Device Type 8,
• Color type: Tc, XY coordinates, RGBW selectable by DIP switches
• DALI address control mode or group control mode selectable by DIP switch
• Enables to select the DALI address (00-63) to be controlled by DIP switches
• Enables to select the DALI group (0-15) to be controlled by DIP switches
• Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
• Enable to control all devices on DALI line via broadcast
• Waterproof grade: IP20
09.2421ZGTY.04791
LED indicator
DALI
0/1-10V
DA/-
Prog.
DA/+
DALI Add.
0/1-10V output (+, -)
1 2 3 4 5 6 7 8 10 9
Output,
Output, relay
Environment
0/1-10V
Switching
Operating Relative
Current
Current
voltage temperature humidity
Max. 20mA 110-240VAC Max. 5A -20℃-+50℃ 8% to 80%
Safety & Warnings
• DO NOT set the DIP switches with power applied to the device.
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Operation
1) Select
DALI or 0/1-10V Output Using Dial Switch 10
Dial up
1 2 3 4 5 6 7 8 9 10 Dial down
Note: please first select output signal by the dial switch.
DALI (DA, DA)
2) Select DALI Device Type (DT6/DT8 Color Type) to be Controlled Using Dial Switches 8-9
or
Dial up
1 2 3 4 5 6 7 8 9 10 Dial down
1 2 3 4 5 6 7 8
DIM
DT8 Tc
Note: once DALI output is selected, please then select the DALI device type you would like to control by
the dial switches.
3) Select DALI Address or Group Control Mode Using Dial Switch 7
Dial up
1 2 3 4 5 6 7 8 9 10
Dial down
Others
1 2 3 4 5 6 7 8
Address Mode
Dimensions
Note: once DALI device type is selected, please then select address control mode or group control mode
by dial switch.
95x37x20
mm
4) Select the DALI Group to be Controlled Using Dial Switches 2-6
Note: here device type is selected as DIM as an example, please select your correct DALI device type.
Dial up
1 2 3 4 5 6 7 8 9 10 Dial down
Controlled group
1 2 3 4 5 6 7 8
0
1
2
3
4
5
6
7
8
Note: 1) once DALI device type and group control mode are selected, please then select the DALI group
(0-15 selectable) to be controlled on DALI line by dial switches.
2) The control gears that are assigned to the selected DALI group on DALI line will be controlled.
3) The control gears shall be first grouped by a DALI master controller, please refer to the user manual of
corresponding master controller.
1 2 3 4 5 6 7 8 9 10
DALI 0/1-10V
9 10 1 2 3 4 5 6 7 8
DT8 XY Coordinates
DT8 RGBW
9 10 1 2 3 4 5 6 7 8 9
Group Mode
Controlled group
9 10 1 2 3 4 5 6 7
9
10
11
12
13
14
15
Broadcast
1 2 3 4 5 6 7 8 9 10
9 10
10
8 9 10
