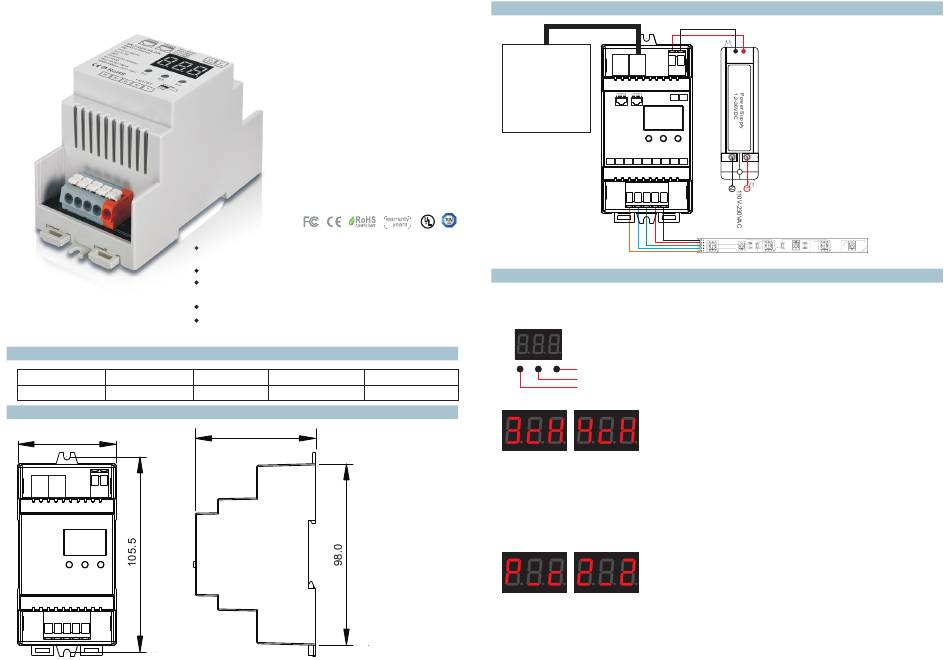

Sunricher SR-2102RJ45-DIN Manual

Easy DMX512 Decoder

Parameter

Part No. Input Voltage
SR-2102RJ45-DIN 12-36VDC

Product Size

53.0

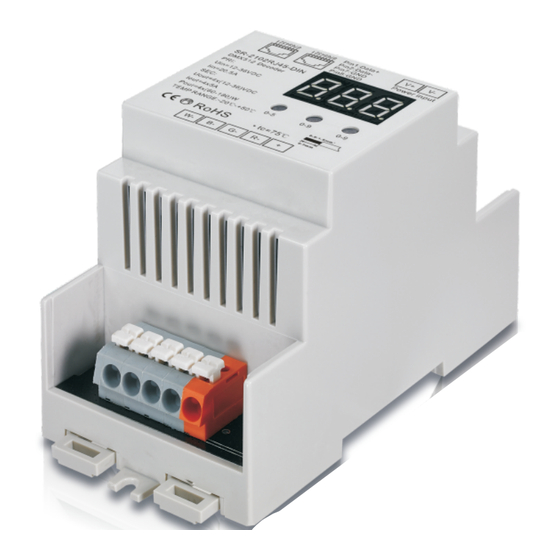

SR-2102RJ45-DIN
Standard DMX512 compliant control interface, enable to set the DMX
address freely. And show address Via digital numueric display.
Three-channel/ four-channel output selectable.
Two types available(Constant Voltage, Constant Current),suitable for
different LED lamps.
To work with power repeater to expand output power unlimitedly.
Compatible with SR-2811DMX,SR-2201DMX,SR-2812,SR-2816 and
any good quality DMX Master
Output Current Output Power
constant voltage
4x(60-180)W
4x5A
65.0

Wiring diagram

DMX Master
5
ISO9001：2008

Using instruction

Operation

Through buttons to set desired DMX512 address, 1 key is to set "hundreds" position, 2 is to set "ten" position, 3
is to set "a" bit.
Remarks
To open the connection of DMX512 controller, then it can work correctly.

Choose Channel

Press button " 2 "and button " 3" at the same time for 2 seconds, cH digital display flashes, then press button"1"
to choose 3/4, 3 means total 3 channels, 4 means total 4 channels. Press any button for >2 seconds to confirm
the 3 or 4 channels. The factory preset default is 4 channels outputs.

Set DMX address

Press 1st button for 2 seconds, digital display flashes to set the required DMX address, then press any button
for >2 seconds to confirm.

Choose PWM frequency

Press 1st button and 3rd button for 2 seconds, digital display flashes to show P-c.
P means PWM frequency, press 1st to show "1", means 1500Hz, "2" means 200Hz.
c means dimming options, press 3rd to show "1", means logarithmic dimming, "2" means linear dimming.
The factory preset default is PWM frequency 200Hz with linear dimming. 2-2
Pin1:Data+
Pin2:Data- V+ V-
Pin7:GND
Power input
Pin8:GND
SR-2102RJ45-DIN
0-5 0-9 0-9
W- B- G- R- +
RGB/W or CDW LED strip
"3" button
"2" button
"1" button
