Summary of Contents for HAMPTON BAY SANSRA 04860

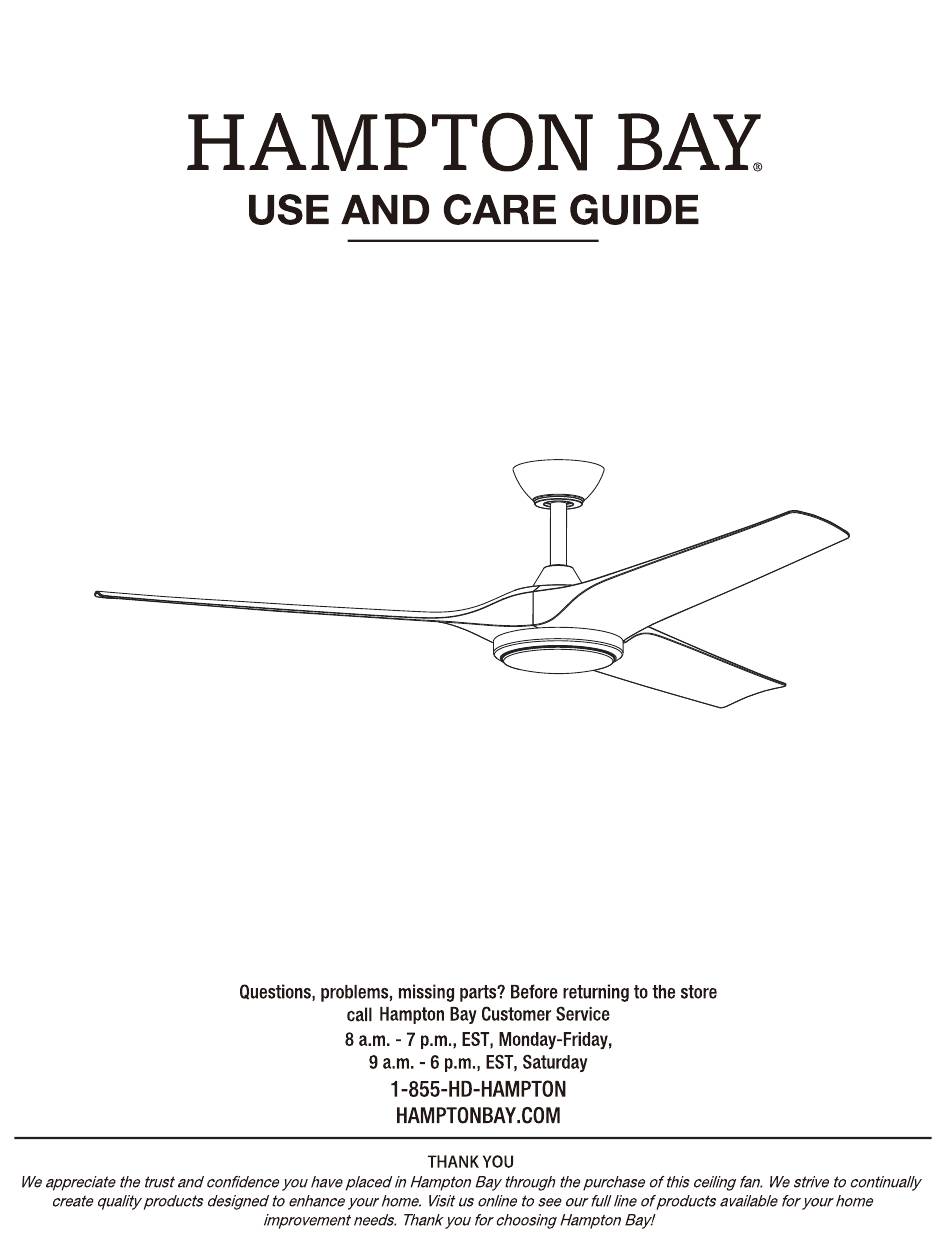

- Page 1 SKU #1012 002 057 #1012 206 311 Model#04860/04861 SANSRA 60 INCH CEILING FAN...
- Page 4 0.06 2.82 2800 9.73 kgs 6.57 kgs 60 in. 0.18 12.05 5344 2.59 cu ft. (14.48 lbs) (21.44 lbs) 0.40 24.69 6635...
- Page 5 Quantity Part Description Blade screw (1/4 in. x 15 mm) (3/16 in. x 9 mm) Flywheel screw Mounting bracket screw (preassembled) Balance kit (not to scale) Wire nuts Cross pin (not to scale) (preassembled) Hitch pin (preassembled) Lock pin (not to scale) (preassembled) Hanger ball set screw (preassembled) Fan motor assembly coupling set screw (preassembled) Light kit screw (preassembled)
- Page 6 Light Plate 18W LED assembly Remote control Remote control wall cradle with toggle switch spacer included Receiver 1.5V AAA battery Extension power cord use for longer downrod(longer downrod not included)
- Page 8 □ Loosen the two set screws (JJ) from the fan motor assembly (H) coupling. Remove the hitch pin (GG) and lock pin (HH) from the fan motor assembly (H). □ Remove the hanger ball (E) from the downrod (F) by loosening the hanger ball set screw (II), and removing the cross pin (FF), then sliding the hanger ball (E) off Pass the 120-Volt supply wires through the center hold in...
- Page 9 Slip the coupling cover (G), canopy cover (D) and Lift the fan motor assembly (H) into position, and place canopy (C) onto the downrod (F). Carefully reinstall the the hanger ball (E) into the mounting bracket (B). Rotate hanger ball (E) onto the downrod (F), and ensure that the the downrod (F) until the check groove drops into the cross pin (FF) is in the correct position, the set screw (II) registration slot (OO) and seats firmly.
-
Page 10: Making The Electrical Connections
Making the electrical connections WARNING: Do NOT install this fan with variable speed wall control or wall-mounted dimmer switch. It may permanently damage the fan's remote control and cause the fan's function to fail. ON / OFF switch NO Variable NO Dimmer switch Ground Black... -
Page 11: Dual Switch
Single Switch Connections Dual Switch Connections On a single switch the fan and light can be turned on or off On a dual switch the fan and light can be turned on or off together. Make wire connections as follows, using the wire separately. - Page 12 Place the canopy cover (D) on the canopy (C), and rotate the canopy cover (D) clockwise until it locks into position.
- Page 13 Remove the six blade preassembled screws(longer) (AA) from the top of the fan motor assembly (H) and the six flywheel screws (shorter) (BB) from the bottom of the fan motor assembly (H). Keep the screws for subsequent steps. Fasten the blade to the fan motor assembly (H) using four screws, two longer blade screws (AA) for the top of the fan motor assembly (H) and the other two flywheel wheel screws (BB) for the bottom of the fan motor assembly (H).
- Page 14 Remove three light kit screws(KK) from the fan motor assembly Place the light plate (I) to the fan motor assembly . Secure by tightening the three light kit screws (KK) previously removed. While holding the 18W LED assembly (J) under your fan, firmly snap the wire connection plugs together. Attach the 18W LED assembly (J) to the light plate (I) by twisting tightly.
-
Page 15: Operation
Operation SETTING UP THE TRANSMITTER NOTE: The remote has been pre-paired in the factory for your convenience. NOTE: Batteries will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children. -
Page 16: Operating Your Fan And Remote Control
Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. NOTE: On each start up of your ceiling fan, the fan blades will oscillate back and forth. This is a NORMAL OPERATION for DC motor ceiling fans as they go through a calibration cycle. - Page 17 Operation (continued) WARM/COOL WEATHER OPERATING INSTRUCTIONS Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, numbers of fans. NOTE: The fan reverse buttons must be pressed while the fan is running. creates a cooling effect. This allows you to set your air conditioner on a warmer setting without affecting your comfort.
- Page 18 Operation (continued) Mounting the remote wall cradle NOTE: The remote wall cradle is designed to allow you to access an existing switch. The remote wall cradle can be mounted on the wall or to the face plate of a standard toggle Toggle switch face plate switch or a paddle switch.
- Page 20 Make sure the frequency switches are set correctly. Do not connect the fan with wall mounted variable speed control(s). Make sure the frequency switches are set correctly. Reset the transmitter by going through the transmitter "PAIRING PROCESS". This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result Fan moves backwards and of the DC motor aligning the internal magnetic poles for proper motor operation.
- Page 21 Quantity Part Description Blade screw (1/4 in. x 15 mm) (3/16 in. x 9 mm) Flywheel screw Mounting bracket screw (preassembled) Balance kit (not to scale) Wire nuts Cross pin (not to scale) (preassembled) Hitch pin (preassembled) Lock pin (not to scale) (preassembled) Hanger ball set screw (preassembled) Fan motor assembly coupling set screw Light Plate...
- Page 22 04860/04861 Minka Lighting LLC.
