Network bridge module (version 2)

Advertisement

Quick Links

No: 24572 – 06/24 rev. 2
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMBC-300
Country of Origin: China or Mexico • Pays d'origine: Chine ou Mexique • País de origen: China o México
LMBC-300-U is BAA and TAA compliant (Product produced in the U.S.)
This unit is pre-set for Plug n' Go™ operation, adjustment is optional.
For full operational details, adjustment and more features of the product, see the
DLM System Installation Guide provided with Wattstopper room controllers, and also
available at www.legrand.us/wattstopper.
Installation shall be in accordance with all applicable regulations, local and
NEC codes. Wire connections shall be rated suitable for the wire size (lead and
building wiring) employed.
For Class 2 DLM devices and device wiring: To be connected to a Class 2 power
source only. Do not reclassify and install as Class 1, or Power and Lighting Wiring.
The LMBC-300 Network Bridge module provides a network connection for a group of Wattstopper Digital Lighting Management (DLM)
Local Network room level devices. The DLM local network must include at least one LMRC-100 series or one LMRC-200 series room
controller. Connecting the LMBC-300 to the DLM local network then to either the DLM Segment Manager or a third party system using
the BACnet protocol exposes the status and parameters of all connected devices to the broader network.
Determine a suitable location for the LMBC-300. This will usually be in the plenum associated with the DLM local network devices you
are adding to the broader network (although it may be convenient to locate in a more easily accessible space like a hallway outside a
classroom). The LMBC-300 is UL2043 Plenum rated. A DIN rail mounting plate is provided with the LMBC for enclosure mounting if
needed.

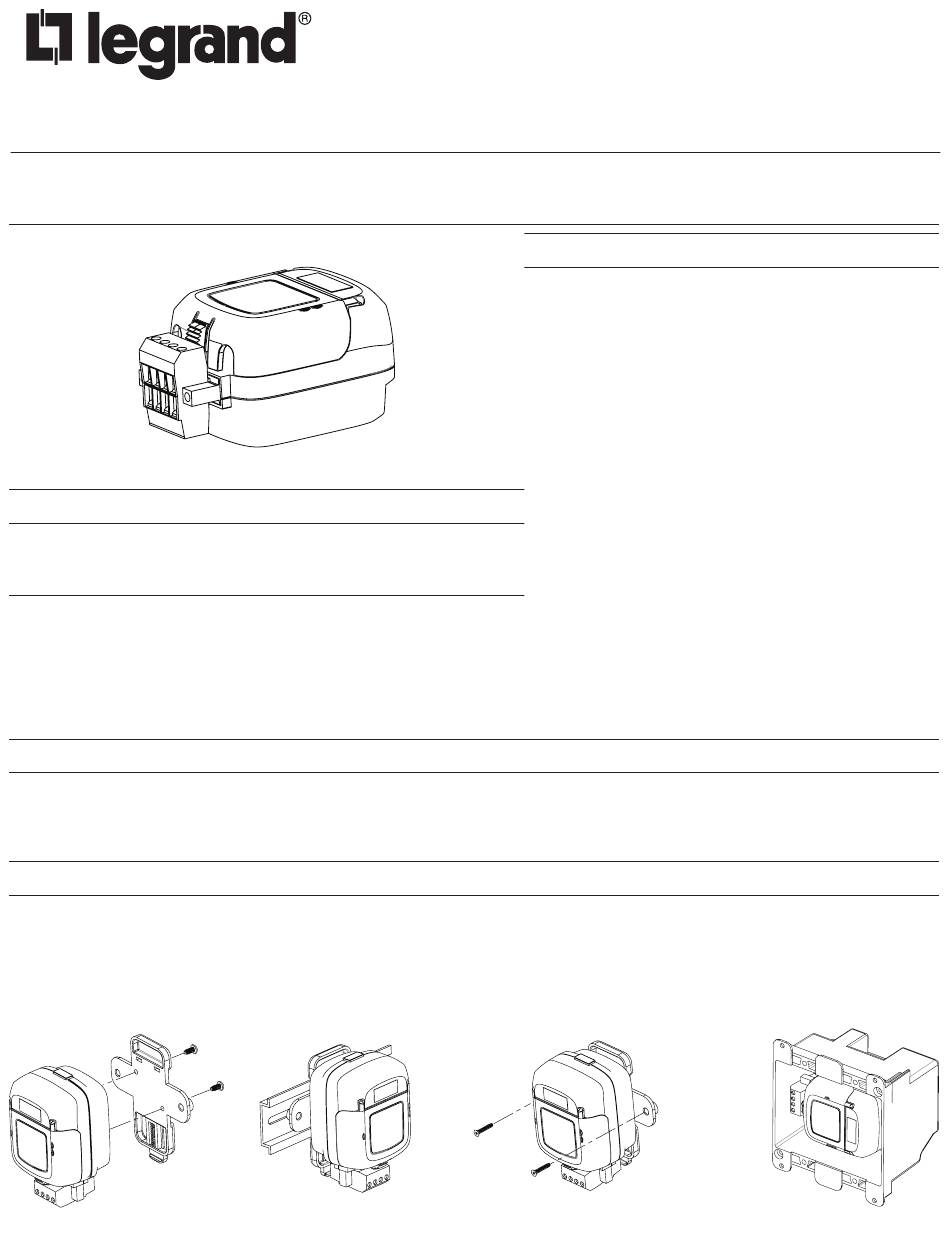

If code requires that the LMBC-300 be mounted in an enclosure, it can be mounted inside a 4" x 4" junction box, inside a 2 1/8" deep (or
deeper) 2-gang wall box, in a 4" octagonal box, or on a 35m DIN rail inside a building automation panel.
Attach DIN rail clip
DESCRIPTION AND OPERATION
MOUNTING AND INSTALLATION
Option 1: Attach to DIN rail
Wattstopper
DLM - Network Bridge Module (Version 2)
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
SPECIFICATIONS
Voltage .............................................................................. 24VDC
Current Consumption ...........................................................36mA
Power Supply ................................. Wattstopper Room Controller
Connection to the DLM Local Network .................... 2 RJ-45 ports
Segment Network
Conforms to BACnet MS/TP master communication protocol
Baud rates (selectable) .......... 38,400 default, 9,600; 19,200;
..................................................... 57,600; 76,800 or 115,200
DLM Local Network characteristics when using LMRC-11x/2xx
room controllers:
Low voltage power provided over Cat 5e cable (LMRJ);
max current 800mA. Supports up to 64 load addresses,
48 communicating devices including up to 4 LMRC-10x
series and/or LMPL-101 controllers.
Free topology up to 1,000' max.
Environment ................................................. For Indoor Use Only
Operating Temperature .................32° to 158°F (0° to 70°C)
Storage Temperature ...................23° to 176°F (-5° to 80°C)
Relative Humidity .......................5 to 95% (non condensing)
Other:
RoHS compliant
UL2043 Plenum rated
Patent Pending
Option 2: Mount to wall
®
Inside a 2-gang
J- box (no clip)
