Summary of Contents for jbc PHSE

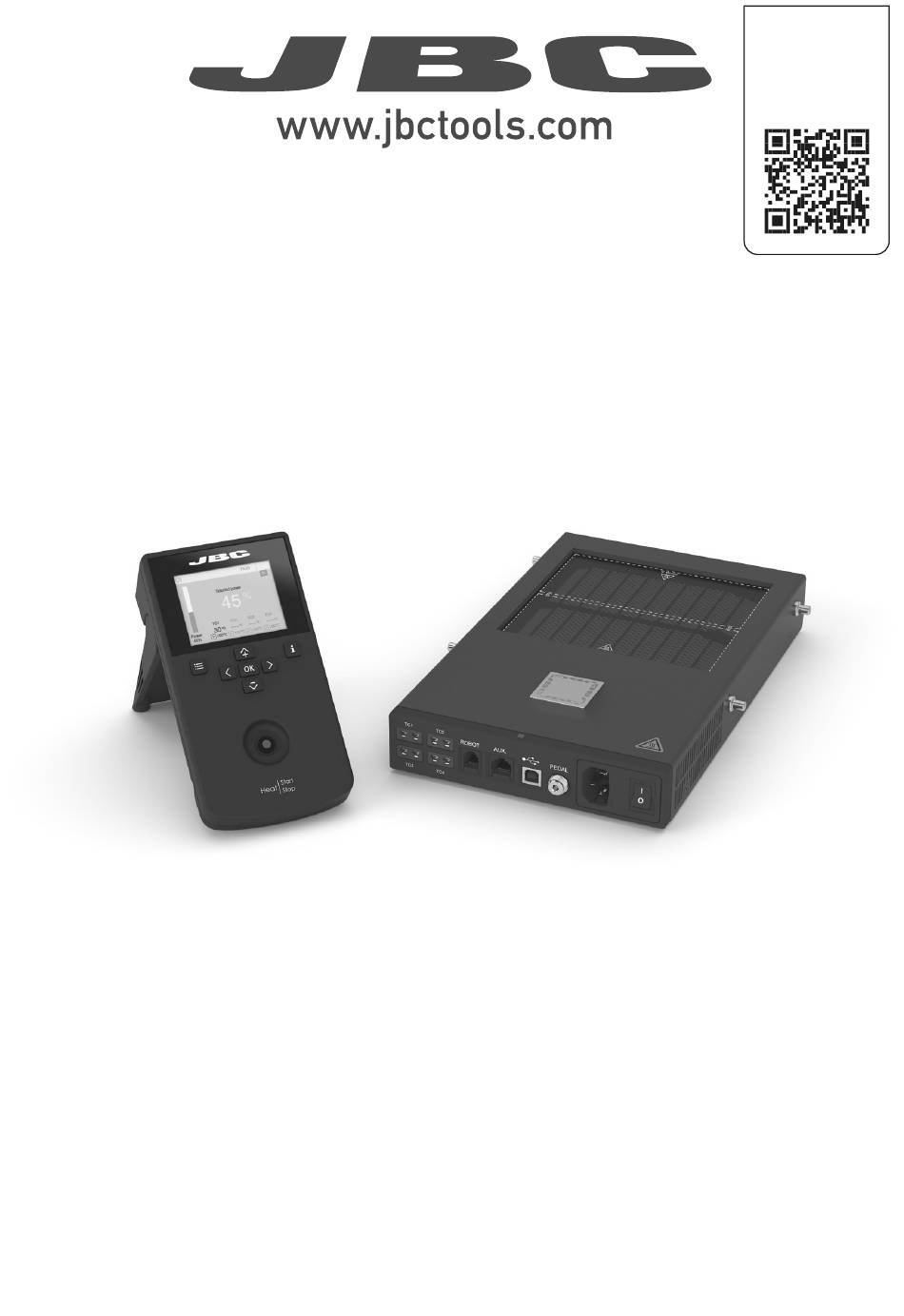

- Page 1 Product website 130 mm INSTRUCTION MANUAL PHSE Preheater for PCBs up to 13x13cm/5x5”...
-
Page 2: Packing List
This manual corresponds to the following references: PHSE-9B (100 V) PHSE-1B (120 V) PHSE-2B (230 V) Packing List The following items are included: PHSE Preheater Unit ......1 unit Console ............1 unit Ref. ACE-A RJ45 Cable ..........1 unit Power Cord ..........1 unit Ref. 0019914 Ref. -
Page 3: Features And Connections
para manuales - negro plano 200 mm Features and Connections 130 mm 130 mm Preheater Unit Heating Areas 100 mm Zone B 80 mm Zone A Fixing brackets for PHSS Support 60 mm Led Status Indicator Thermocouple Connectors x4 50 mm (Type K) Main Switch RJ12 Connector... -
Page 4: Status Indicator
Status Indicator The led status indicator indicates as follows the status of the preheater: Blue: The unit is resting, not heating. On the display, the symbol “Stop” (1) is shown. Green: The unit is running and heating accordingly Led status indicator to the operating mode. -
Page 5: Troubleshooting
para manuales - negro plano 200 mm Work Display 130 mm 130 mm The console offers an intuitive user interface, which provides quick access to station parameters. Status 100 mm Indicator 19:29 Status Bar 80 mm Max. Heating Instant Power Rate Supplied to Heater... -
Page 6: Recommended Guidelines
Setting Thermocouples Function Select Thermocouples from the Work mode menu to set them up. The thermocouples (TC) can work in three different ways depending on what is needed. · Control: the unit maintains the selected temperature. · Protection: the Heater Unit stops if the TC reaches the selected temperature. ·... -
Page 7: Work Mode
para manuales - negro plano 200 mm 19:29 Work Mode 130 mm 130 mm Temperature Mode: Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected 100 mm temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection temperature limit. - Page 8 Work Mode Temperature Mode: This function allows you to set a maximum value for the temperature increase per second when heating. Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection The maximum heating rate value can be set between 0.1ºC/s and 2.0ºC/s (2) or “None”...
- Page 9 para manuales - negro plano 200 mm Profile Modes 130 mm 130 mm Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit.
-
Page 10: Profile Editor
JBC Predefined Profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain gradual warming. -
Page 11: Process Analysis
para manuales - negro plano 200 mm Process Analysis 130 mm 130 mm By pressing Graphics in the main MENU, the temperature of TC1 thermocouple and power fi gures in real time are displayed. 100 mm Graphics 80 mm 19:29 Power (%) 60 mm 50 mm... - Page 12 Insert a USB flash drive into the USB-A connector to export/import profiles. Update the Station Software 1. Download the JBC Update File from 2. Insert the USB flash drive into the console. www.jbctools.com/software.html and save The icon is displayed while updating.
-
Page 13: Maintenance
60 mm - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized 50 mm technical service. - A blown fuse can be replaced by the user itself. - Page 14 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than PCB preheating. Incorrect use may cause a fire. - The mains cable must be plugged into approved bases. Make sure that it is properly grounded before use.
- Page 15 para manuales - negro plano 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 16 Notes...
- Page 17 para manuales - negro plano 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 18 Notes...
-
Page 19: Specifications
PHSE Preheater for PCBs up to 13x13cm/5x5” Ref.: PHSE-9B 100V. Input 100V 50/60Hz Fuse T10A 100 mm Ref.: PHSE-1B 120V. Input 120V 50/60Hz Fuse T10A Ref.: PHSE-2B 230V. Input 230V 50/60Hz Fuse T5A - Maximum Power: 800W 80 mm - Heating Area: 65 x 135 mm / 2.56 x 5.31 in - 1 zone... - Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. If you register, you will receive e-mail notifications about new software updates for your registered product.
