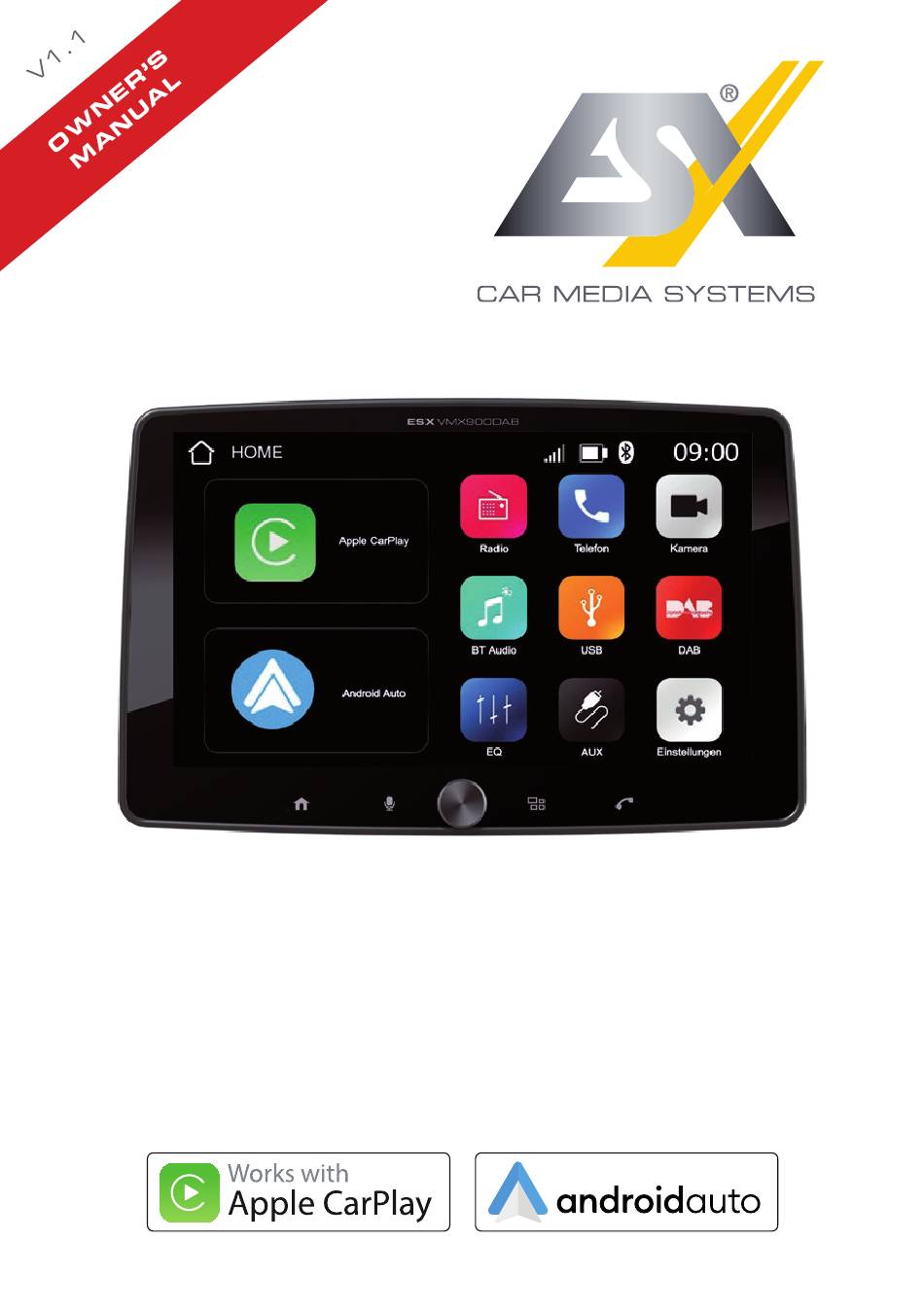

- Page 1 VMX900DAB 1-DIN 22,8 CM (9”) MULTI-ANGLE MEDIA MONICEIVER works with...
-
Page 3: Table Of Contents
CONTENT General information ..........................4 Scope of delivery ..........................4 Safety instructions ..........................5 Specifications ............................6 Specifications radio type ........................6 Disposal / recycling ..........................7 Intended use of the device ........................7 Declaration of conformity ........................7 1. Connections & installation ......................8 2. Control elements ..........................12 Function keys &... -
Page 4: General Information
GENERAL INFORMATION Legal notice • All registered product names, trade marks and brands are the property of their respective owners. • This owner‘s manual was made with the utmost care. • Technical changes and errors reserved. Due to the ongoing development of this device, it is possible that the information in this manual is incom- plete or is not matching to the delivery status. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS • Note any time the traffic regulations of the country in which the device is operated. • Please ensure, that with the engine turned off the vehicle‘s battery does not discharge fully. The de- vice is another electrical consumer which must be operated with the engine running, other-wise the vehicle‘s battery will be discharged and the vehicle can not be started. -
Page 6: Specifications
SPECIFICATIONS • Universal 1-DIN multi-angle media moniceiver with 22.8 cm (9”) touchscreen display • Large rotary knob for volume and four function buttons on the control panel • Compatible with Apple CarPlay or Android Auto™ (wireless and USB) ® • GPS receiver for optimized position determination in navigation applications •... -
Page 7: Disposal / Recycling
Audio Design Lautsprecher Vertriebs GmbH Am Breilingsweg 3, DE-76709 Kronau/Deutschland The Audio Design Lautsprecher Vertriebs GmbH hereby declares that the device VMX900DAB com- plies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the... -
Page 8: Connections & Installation
Then connect all cable sets, antennas and dongles to the ESX main device as described on page 6. Then plug in the cable plug from the radio slot of the vehicle on the ESX main unit or on its vehicle-specific system cable set. - Page 9 (DAB). If it does not have separate connections for FM/AM and DAB, a separately available antenna splitter must be used so that both connections on the ESX device can be used. kleben Sie die Antenne auf die Scheibe.
- Page 10 1. CONNECTIONS & INSTALLATION Power connections (ISO standard) Yellow Power supply (+12V) ACC ignition (+12 V) Black Ground (–) Orange Connection for headlights Purple/White Connection for reverse gear signal Blue +12 V for electrical antenna (500 mA) Blue/White +12 V remote signal REM (500 mA) Green Connection for handbrake signal Red/Purple...
- Page 11 1. CONNECTIONS & INSTALLATION Connection for the included GPS antenna Fuse 15A (In the event of a defect, only exchange it for an equivalent one) AV-Anschlüsse If necessary, connect the appropriate RCA plugs here: FL (white) Pre-amplifier output front / left FR (red) Pre-amplifier output front / right RL (white)
-
Page 12: Control Elements
2. CONTROL ELEMENTS 2.1 FUNCTION BUTTONS & CONTROLS ESX VMX900DAB Number Function Description Home menu Press short to go to the home menu. Voice assistant Press here to activate the voice assistant of your connected smartphone. Volume Turn the knob to adjust the volume. -
Page 13: Home Menu
2. CONTROL ELEMENTS 2.2 HOME MENU This device has a very clear home menu, which you can operate by simply tapping the touchscreen screen. You can find more information about the individual applications and functions of the device starting on page 21. 2.3 STATUS BAR At the top of the screen is the device’s status bar. -
Page 14: Settings
3. SETTINGS 3.1 GENERAL Under General you can make various settings for You can set the menu language under Language. the device. Under Time Zone you can set the desired Under Date & Time you can set the desired time time zone if you want to change the time zone format (12H/24H) as well as the date and time automatically determined by GPS. - Page 15 3. SETTINGS 3.1 GENERAL The slider next to SWC opens the steering wheel If your steering wheel remote control has been remote control learning menu. correctly connected to the device, you can teach the individual functions to the device here. As soon as you have assigned all functions, leave the menu with Save/Exit.
-
Page 16: Audio
3. SETTINGS 3.2 AUDIO Under Audio you can make various audio settings. Under Balance/Fader you can adjust the balance of the acoustic stage between left and right and front and back. Subwoofer activates the SUB1/SUB2 preamp Under EQ you can adjust the equalizer settings outputs. -
Page 17: Display
3. SETTINGS 3.2 AUDIO Under Microphone Level you can adjust the Under Microphone you can choose which volume of the hands-free microphone with – / +. microphone should be used for the hands-free function. F is the internal microphone on the control panel and R is the external microphone connected to the back of the device. -
Page 18: Wi-Fi
3. SETTINGS 3.3 WI-FI Under Wi-Fi you can turn the Wi-Fi function on or With Password Reset you can delete the device’s off. This function is required for Apple CarPlay and password and reassign it. Under Device List you Android Auto. can select a connectable smartphone that you would like to connect to the device. -
Page 19: Camera
3. SETTINGS 3.5 CAMERA Under Camera you can make various settings for Here you can switch on the rear or front camera, the connected cameras. switch on the respective power supply via the device and activate the respective view in the camera menu. -
Page 20: Radio
3. SETTINGS 3.6 RADIO Under Radio you can set various settings for Under Region you can set the reception area. analogue radio reception. With RDS you activate the transmission of additional digital information such as station names or messages from FM radio stations. With TA you allow traffic announcements from the With AF, the radio switches to an alternative, most recently listened to FM station while playing... -
Page 21: Applications & Functions
4. APPLICATIONS & FUNCTIONS 4.1 APPLE CARPLAY & ANDROID AUTO In order to use Apple CarPlay, you must first In order to use Android Auto, you must first connect your iPhone to the device using a USB connect your smartphone to the device using a charging cable or Bluetooth (see page 18). -
Page 22: Handsfree
4. APPLICATIONS & FUNCTIONS 4.3 HANDSFREE By tapping on Handsfree in the home menu you If your cell phone is not yet connected to the open the phone menu. Please make sure that the device via Bluetooth, please follow the instructions corresponding microphone must be activated for on page 18. -
Page 23: Camera
4. APPLICATIONS & FUNCTIONS 4.5 CAMERA By tapping on Camera you open the camera display if you have connected a rear camera or a front camera to the device. If you have two cameras connected, you can select the respective view on the control bar at the bottom. - Page 24 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de © All rights reserved, technical changes and errors reserved...
