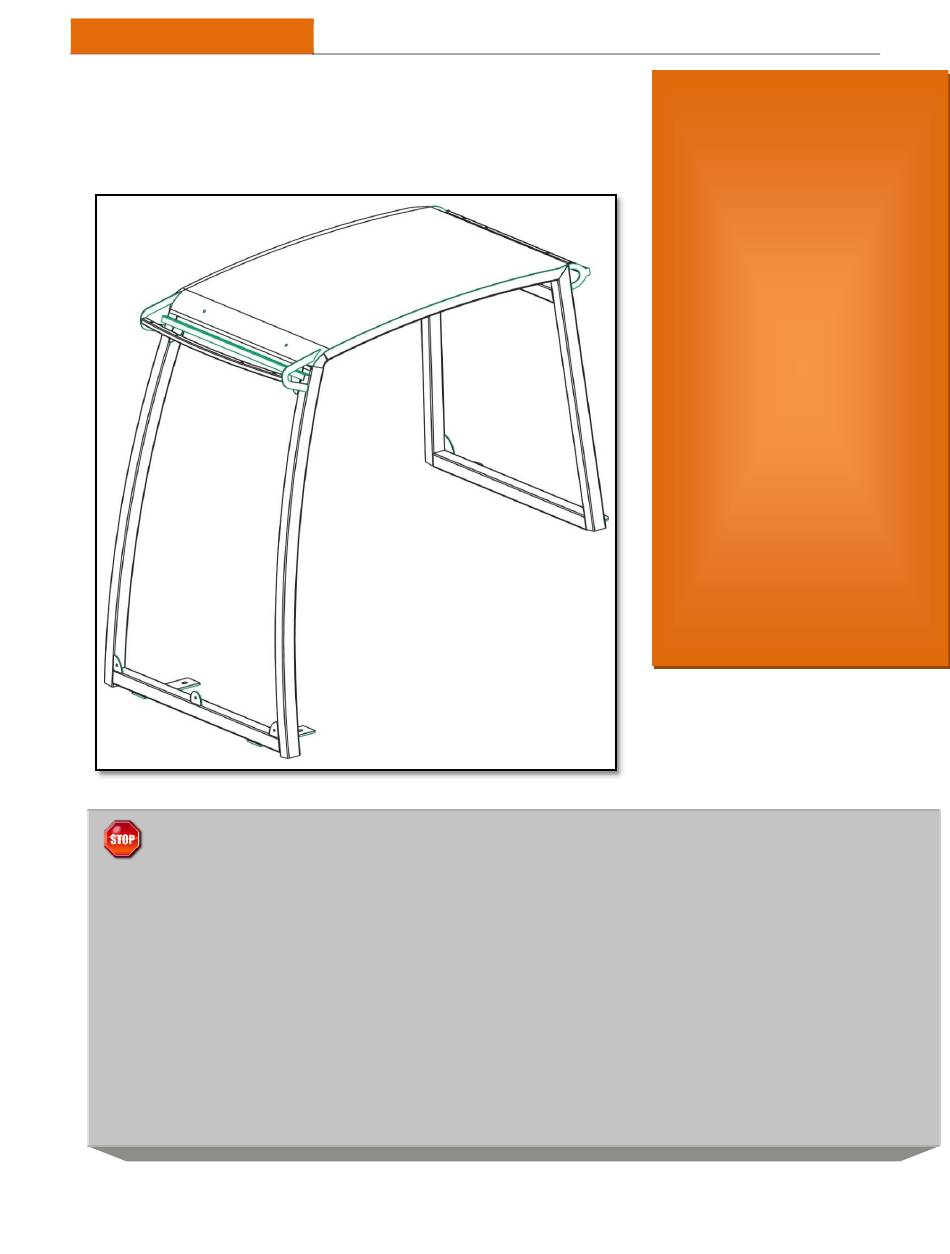

July 2016 ©

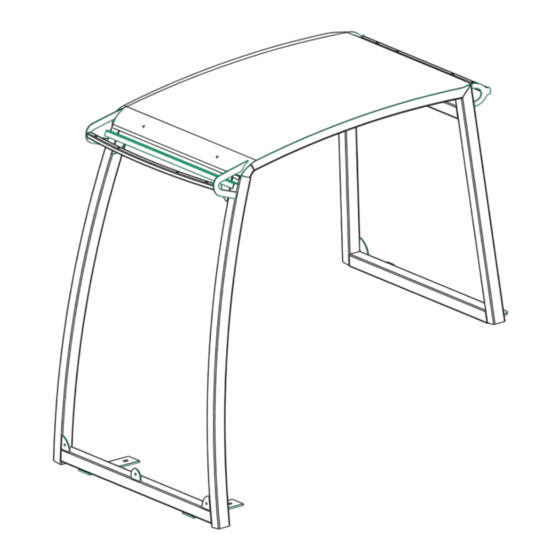

Jacobsen MP653 ROPS
** Shown with optional components
Caution
** Please read installation instructions and follow all safety statements before attempting to install
this product.
** This ROPS cab is heavy. An over-head hoist or high lift forklift will be needed to lift this cage over
the machine. It is recommended that a minimum of two people participate during the installation
procedure.
** A copy of this installation manual should be kept with the machine operating manuals.
Jacobsen MP653 ROPS Installation Manual
Jacobsen MP653 ROPS
This ROPS is designed and built
to fit the Jacobsen MP653.
Designed and Built by:
Tektite Manufacturing Inc:
24157 Hwy 3
P.O. Box 639
Winkler, MB
R6W 4A8
Canada
PH: 204-331-3463
Fax: 204-331-4159
sales@tektite.ca
One-year standard product
warranty provided by Tektite.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jacobsen MP653 ROPS
Summary of Contents for Jacobsen MP653 ROPS
- Page 1 July 2016 © Jacobsen MP653 ROPS Installation Manual Jacobsen MP653 ROPS Jacobsen MP653 ROPS ** Shown with optional components This ROPS is designed and built to fit the Jacobsen MP653. Designed and Built by: Tektite Manufacturing Inc: 24157 Hwy 3 P.O.
- Page 2 July 2016 © Jacobsen MP653 ROPS Installation Manual Tektite Manufacturing Incorporated thanks you for purchasing a Jacobsen MP653 ROPS! Tektite has worked very hard to design and build this ROPS product and we hope that it provides you with many years of protection.
- Page 3 July 2016 © Jacobsen MP653 ROPS Installation Manual Standard Parts List: Description Bolt, Hex, 5/8” x 3”, Gr. 8, YD Nut, Flange, 5/8”, Gr. 8, YD Washer, Heavy, ¼” Flat Isolator (pre-installed) Bolt, Flange, M8 x 20 Screw, Self Tap, #12 x 1-1/4"...
- Page 4 July 2016 © Jacobsen MP653 ROPS Installation Manual Park the machine in a well ventilated location with access to fork lift or over-head hoist. Disconnect battery ground before starting installation. ROPS Installation Instructions: . Un-bolt and remove the upper hoop of the 2-post ROPS. Let the fuel breather tube hang to the side.
- Page 5 July 2016 © Jacobsen MP653 ROPS Installation Manual . From the left lower 2-post ROPS member, un-bolt and remove the deck stop bracket tubular member. Fasten to the left cab bracket with the factory hardware.
- Page 6 July 2016 © Jacobsen MP653 ROPS Installation Manual . From the right lower 2-post ROPS member, un-bolt and remove the deck stop bracket tubular member. Fasten to the right cab bracket with the factory hardware. . Remove the front two operator platform fasteners, M12 x 120 hex bolts.
- Page 7 July 2016 © Jacobsen MP653 ROPS Installation Manual . Get all bolts started before applying any final torques. . Un-bolt and remove lift strap/chain. . Un-bolt and remove both cab lift brackets. Store if you intend to remove cab in future.
- Page 8 July 2016 © Jacobsen MP653 ROPS Installation Manual . Route the main power harness on the back right corner of the cab down the baffle provided on the rear bracket and down into the hood area towards the alternator. . Connect the heavy black 10 GA wire to the tractor ground at the back of the starter mount plate as shown below.
- Page 9 July 2016 © Jacobsen MP653 ROPS Installation Manual . Connect the heavy red 10 GA wire to constant 12v power as shown below. Use the provided 1/4" loop connector. Shorten the wire if necessary, then solder wire to connector. . Take the orange wire and connect to a key switch activated source on the engine, as shown below.
- Page 10 July 2016 © Jacobsen MP653 ROPS Installation Manual . Take the provided #12 x 1-1-4" self tap screws and bolt tank breather to right rear bracket. . Take the turn signal lever and hose clamp included and attach to the steering wheel.
- Page 11 July 2016© Jacobsen MP653 ROPS Operator Manual Jacobsen MP653 ROPS Jacobsen MP653 ROPS This ROPS is designed and built to fit the Jacobsen MP 653. Designed and Built by: Tektite Manufacturing Inc: 24157 Hwy 3 P.O. Box 639 Winkler, MB...
- Page 12 July 2016© Jacobsen MP653 ROPS Operator Manual Tektite Manufacturing Incorporated thanks you for purchasing a Jacobsen MP-653 ROPS! Tektite has worked very hard to design and build this ROPS product and we hope that it provides you with many years of ROPS protection.
-
Page 13: Safety Precautions
July 2016© Jacobsen MP653 ROPS Operator Manual Safety Precautions Safety First Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use the features that are on this cab/ROPS. - Page 14 July 2016© Jacobsen MP653 ROPS Operator Manual General Safety 1. Never let an unqualified or untrained driver operate the utility vehicle. 2. Keep a fire extinguisher, with ABC rating securely fastened in the ROPS. Maintain it and be familiar with its use.
- Page 15 July 2016© Jacobsen MP653 ROPS Operator Manual Safe Operation on Rough Terrain 1. Drive the utility vehicle slowly on hillsides and curves to eliminate the danger of tipping. Avoid slopes which are too steep for safe operation. Avoid sharp uphill turns.
- Page 16 July 2016© Jacobsen MP653 ROPS Operator Manual 9. Use your turn signals, checking for traffic well in advance of turning. If the utility vehicle is not equipped with turn signals and law requires them, install them prior to operating on or near public roads.
- Page 17 July 2016© Jacobsen MP653 ROPS Operator Manual Operating Instructions Important The following section locates, identifies and briefly describes the functions of all cab controls. All operators should familiarize themselves with control location and function prior to operating the tractor. Failure to do so may result in unsafe operation of the tractor and possible injury or death to operators and bystanders.
- Page 18 July 2016© Jacobsen MP653 ROPS Operator Manual 4. Rear Work Light Rocker Switch (optional) Low position: Off High position: On Note: indicator light activates when work light is on. 5. Beacon Rocker Switch (optional) Low position: Off High position: On Note: indicator light activates when work lights are on.
- Page 19 July 2016© Jacobsen MP653 ROPS Operator Manual After your ROPS has been installed: Before starting a utility vehicle equipped with a Tektite ROPS: 1. Clear the operator platform of all tools. Tools left in or around the ROPS and utility vehicle can cause operator interference which could lead to bodily injury and/or damage the machine.
- Page 20 Index Service Part # File Name Description JAMP653-ASM-30 A00-0136 RED_TAIL_FLASH Red Tail Light A00-0143 TEKT-0083 Turn light, Amber A00-0182 TEKT-ASM-018 Headlight Tektite Manufacturing Inc. 24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada Req'd: CNC: Description: Notice of Confidentiality 1 req Accessories Assembly Tolerances:...
