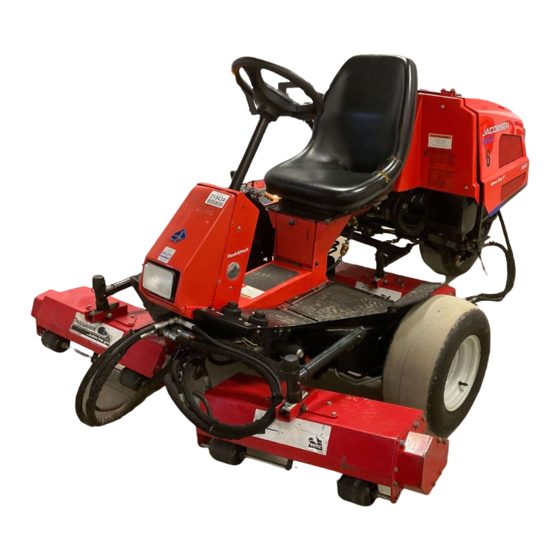

- Page 1 4127224 Safety & Operation Manual Greens King VI 62375 – 1862G, Briggs Vanguard Engine, 2WD 62376 – 1862G, Briggs Vanguard Engine, 3WD 62377 – 1962D, Kubota D662-EB Engine, 2WD 62378 – 1962D, Kubota D662-EB Engine, 3WD...
-
Page 2: Table Of Contents
“All rights reserved, including the right to reproduce this book or portions thereof in any form”. All information in this publication is based on information available at time of approval for printing. Jacobsen reserves the right to make changes at any time without notice and without incurring any obligation. -
Page 3: Safety
SAFETY SAFETY OPERATING SAFETY ______________________________________________________ WARNING EQUIPMENT OPERATED IMPROPERLY OR BY UNTRAINED PERSONNEL CAN BE DANGEROUS. Familiarize yourself with the location and proper use of all controls. Inexperienced operator’s should receive instruction from someone familiar with the equipment before being allowed to operate the machine. 1. -
Page 4: Important Safety Notes
Adjustments and maintenance should always be performed by a qualified technician. If additional information or service is needed, contact your Authorized Jacobsen Dealer who is kept informed of the latest methods to service this equipment and can provide prompt and efficient service. -
Page 5: Decals
DECALS DECALS DECALS _________________________________________________________________ DANGER CAUTION To prevent injury, disengage all 1. Read operator’s manual before operating drives, engage parking brake machine. and stop engine before 2. Keep shields in place and hardware working on machine or securely fastened. emptying grass catchers. 3. -
Page 6: Controls
CONTROLS CONTROLS ICONS ___________________________________________________________________ Hour Meter Engine Read Manual Engine Throttle Start High Coolant Parking Brake Fuel Reel Switch Temperature Engaged Disengaged Gasoline Diesel Enable Disable Reel Rotation Glow Plug Choke Circuit Breaker Forward Reverse Headlight Horn Hydraulic Oil Leak WARNING Never attempt to drive the tractor unless you have read the Safety and Operation Manual and know how to operate all controls correctly. - Page 7 CONTROLS Hydraulic Oil Level / Horn Test Hour Meter (Gasoline) Lights Temperature Gauge (Diesel) Reel Switch Hour Meter (Diesel) Choke (Gasoline) Tilt Control Traction Lever Horn Throttle Lever Lift Switch Parking Brake Mow Switch Circuit Breakers Traction Pedal Brake Light Fuel Gauge Ignition Switch Forward / Reverse Switch...
-
Page 8: Controls
CONTROLS INSTRUMENT PANEL ______________________________________________________ A. Hydraulic Oil Level / Horn Test Switch F. Throttle Lever Horn will sound if oil level is low. Depress rear of Regulates engine speed. Push lever forward to switch to test horn. Release switch to de-activate increase, or pull lever backwards to decrease engine horn. -
Page 9: Opening The Hood
CONTROLS FLOORBOARDS___________________________________________________________ R. Lift Switch T. Traction Pedal Used to lift the implements. Press and release to lift Used to control the direction and speed of the the cutting units and disengage the reels. (Do not machine. hold switch down) Slowly depress the top of the traction pedal (T ) for S. -
Page 10: Operation
OPERATION OPERATION DAILY INSPECTION________________________________________________________ 2. Check the fuel supply, radiator coolant level, crankcase oil and air cleaner indicator. All fluids CAUTION must be at the full level mark with engine cold. 3. Make sure all mowers are adjusted to the same The daily inspection should be performed only when cutting height. -
Page 11: Operating Procedures
11. Look behind and down before backing up to be sure precautions. Only use accessories and attachments the path is clear. Use care when approaching blind approved by Jacobsen. corners, shrubs, tress or other objects that may obscure vision. 5. Never... -
Page 12: Starting
OPERATION STARTING _______________________________________________________________ IMPORTANT: Do not use starting assist fluids. Use of 6. Allow the engine to become warm and properly such fluids in the air intake system may be potentially lubricated before operating at high RPM. explosive or cause a “Runaway” engine condition and could result in serious engine damage. -
Page 13: To Drive / Transport
OPERATION TO DRIVE / TRANSPORT____________________________________________________ Read and follow all safety notes contained in this manual 2. Disengage parking brake, move throttle lever to when driving or transporting tractor. Refer to Section 5.3 “Fast”, and traction lever to “2”. Depress traction for general operating instructions. -
Page 14: Mowing
OPERATION MOWING_________________________________________________________________ Note: To prevent damage to the reel and bedknife, WARNING never operate reels when they are not cutting grass. 2. Turn reel switch to ON and disengage parking To prevent serious injuries, keep hands, feet and brake. clothing away from cutting unit when the blades are moving. -
Page 15: 5.11 Daily Maintenance
OPERATION 5.11 DAILY MAINTENANCE______________________________________________________ Important: For more detailed maintenance information, 5. Store fuel according to local, state or federal adjustments and maintenance/lubrication charts, see the ordinances and recommendations from your fuel Parts & Maintenance manual. supplier. 1. Park the tractor on a flat, level surface. Fully lower WARNING the implements to the ground, engage parking brake, stop the engine and remove key from ignition switch. - Page 16 Textron Golf, Turf & Specialty Products PO Box 7708, Charlotte, NC 28241-7708 www.ttcsp.com...
