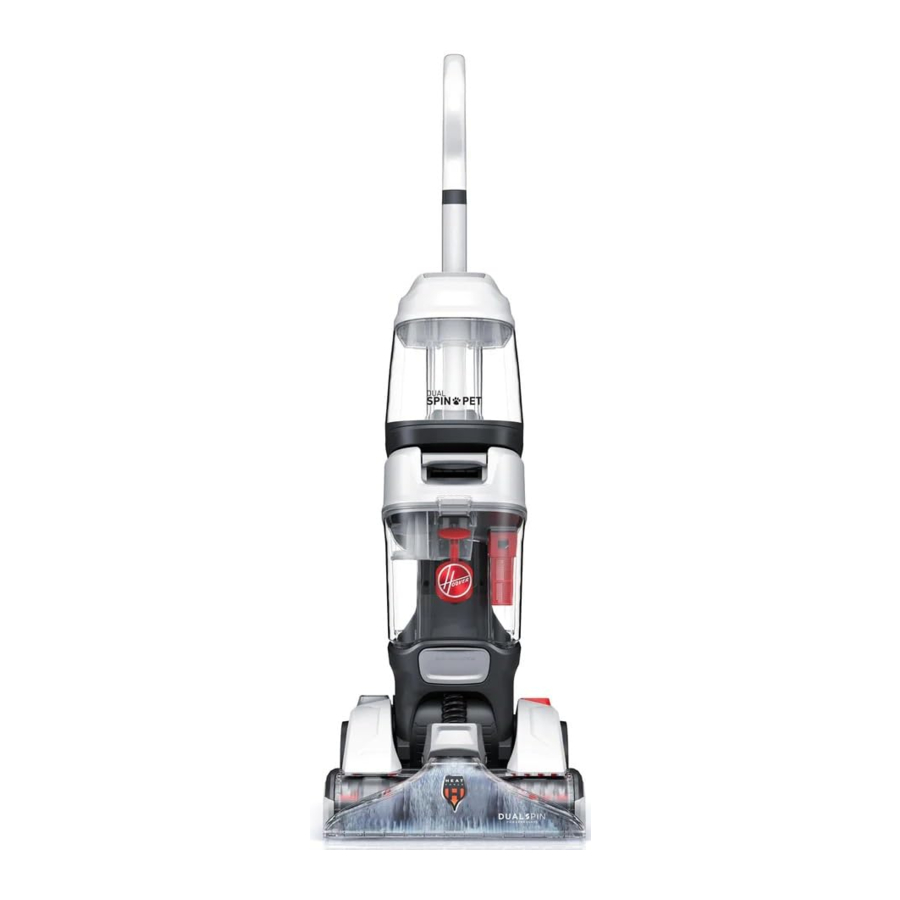

Hoover Dual Spin Pet Manual

GETTING STARTED

ASSEMBLY
Fully assemble product prior to use

Insert the handle into the base until you hear a "CLICK".

OPERATION

FILL THE CLEAN WATER TANK

1. Lift up to remove the Clean Water Tank, then remove the cap and add warm water to the fill ine. Add 30z. of Hoover Solution. Secure cap.

   CLEANING FLUID
   SEE THE HOOVER'S SOLUTION GUIDE insert or visit Hoover.com/cleaning-solutions.

2. Align the tank and firmly press it into place.

HOW TO CLEAN CARPETS

1. Step on the Handle Release Pedal to recline the cleaner for cleaning position.
2. Step on the Power Pedal to turn ON.

   Empty Dirty Water Tank when you hear an audible change.

3. Squeeze trigger for a slow forward and backward wet stroke.
4. Release trigger for a slow forward and backward dry stroke.

Not to be used for grooming a pet.

DO NOT USE THIS EXTRACTOR ON HARD FLOORS. USING THIS PRODUCT ON HARD FLOORS MAY SCRATCH OR DAMAGE YOUR FLOOR.

HOW TO CLEAN THE DIRTY WATER TANK

Risk of personal injury - Brush roll may suddenly restart - unplug before cleaning of servicing.

This product contains no serviceable parts.
If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, cal customer service at 1,800,964 9200 prior to continuing use.

1. Turn power OFF and unplug the power cord.

2. Grab the Dirty Water Tank handle and pull up to remove.

3. Unlatch the lid to remove the top. Remove the filter basket and clear any debris. Empty the tank, rinse, and allow to air dry.


AUTO SHUT OFF FLOAT: Your carpet cleaner is equipped with a shut off float within your Dirty Water Tank. When the Dirty Water Tank becomes full, the float will rise, shutting off the airflow through the nozzle. Once the air flow is shut off, empty the Dirty Water Tank.

MAINTENANCE

HOW TO REMOVE & CLEAN THE BRUSH ROLL

To reduce the risk of injury from moving parts, unplug before servicing

LUBRICATION: The motor is equipped with bearings which contain sufficient lubrication for their lifetime. The addition of lubricant could cause damage. Do not add lubricant to motor bearings.

1. Remove the nozzle cover by pulling up and forward on the latch.

2. Lay the product down to access the underside. Use a Philips screwdriver to remove 6 screws.
   Arrows show location of screws on the under-side of your cleaner.

3. Remove underside belt cover and the brush roll end cap.

4. Pull both brush rolls out toward user to remove from cleaner. Belt will still be attached to cleaner.


CORD STORAGE: Wrap the power cord around the cord hooks for convenient storage. Attach the plug end to the cord.

REMOVING THE BELT

5. To remove belt, unscrew foot side cover from underside (3 screws).

6. Flip cleaner upright and remove upper belt cover from foot.

7. Slide belt off shaft and remove. If replacing belt, install the new belt.


REPLACING THE BRUSH ROLL

1. Slip brush roll through bet. Make sure belt is centered on pulley when replacing.

2. With belt in place, pull and slide brush roll into unit, making sure that the brush roll end caps are in correct orientation.

3. Replace belt cover and secure by replacing all 6 screws.


TROUBLESHOOTING

To reduce the risk or personal injury, unplug before cleaning or servicing.

To reduce the risk of injury from moving parts - Unplug before servicing.
Do not use cleaner without brushes in place.

AVAILABLE REPLACEMENT PARTS AND ACCESSORIES SUCH AS SOLUTIONS AT HOOVER.COM.
IF APPLIANCE IS NOT WORKING AS IT SHOULD, HAS BEEN DROPPED, DAMAGED, LEFT OUTDOORS, OR DROPPED INTO WATER, CALL CUSTOMER SERVICE AT 1-800-944-9200 PRIOR TO CONTINUING USE.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE.

SAVE THESE INSTRUCTIONS

This product is intended for Household use only. If used Commercially warranty is VOID.

When using an electrical product, basic precautions should always be followed to avoid electric shock, fire, and/or serious injury, including the following:

• Fully assemble product prior to use.
• Operate cleaner only at voltage specified on data plate on lower back of cleaner.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before cleaning or servicing.
• Use indoors only. Do not immerse. Use only on surfaces moistened by the cleaning process.
• To Reduce the Risk of Fire and Electric Shock due to internal component damage, use only Hoover® Cleaning Fluids intended for use with this appliance.
• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used by or near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.
• Use only as described in this user's manual. Use only HOOVER® recommended attachments.
• Do not use product with damaged cord or plug. If product is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call customer service at 1-800-944-9200 prior to continuing use.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or fine wood sandings, or use in areas where they may be present.
• Connect to a properly grounded outlet only. See Grounding Instructions.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters and tanks in place.
• Do not clean over floor electrical outlets.

TO REDUCE THE RISK OF DAMAGE:

• Avoid picking up hard, sharp objects with this product, as they may cause damage.
• Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.
• Do not use sharp objects to clean out hose as they can cause damage.
• To assist in reducing drying time, be certain the area is well ventilated when using detergents and other cleaners with this machine.
• To help prevent matting and resoiling, avoid contact with carpets until they are dry. Keep children and pets away from carpets until they are completely dry.
• Do not store extractor with solution in tanks.
• With brushes on, do not allow cleaner to sit in one location for an extended period of time, as damage to floor can result.
• Do not use this extractor on hard floors. Using this product on hard floors may scratch or damage your floor.
• Water will drip from the brushes and underside of the product after use and may puddle. To avoid damage to wood and laminate flooring and to avoid potential slip hazard, after use

1. do not leave the product on wood and laminate surfaces and remove to a hard surface and
2. place unit on absorbent material (such as a towel) to soak up drips.

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, 1 grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor (C) and grounding plug (A). The plug must be inserted into an appropriate outlet (B) that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of the equipment-grounding conductor can result in the risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This appliance is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug (A) illustrated in Fig. 1.

A temporary adapter (D) may be used to connect this plug to a 2-pole receptacle (E) if a properly grounded outlet is not available (Fig. 2).

The temporary adapter should be used only until a properly grounded outlet (B) can be installed by a qualified electrician (Fig. 1). The green colored rigid ear, lug, or the like (F) extending from the adapter must be connected to a permanent ground (G) such as a properly grounded outlet box cover (Fig. 2). Whenever the adapter is used, it must be held in place by a metal screw.

NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.

Available replacement parts and accessories such as solutions at Hoover.com.

Please visit Hoover.com for video instructions and FAQ's for this Carpet Cleaner.

Questions or concerns?
For assistance, please call Customer Service at 1-800-944-9200
Mon-Fri 9am-6pm EST before returning this product to the store.
