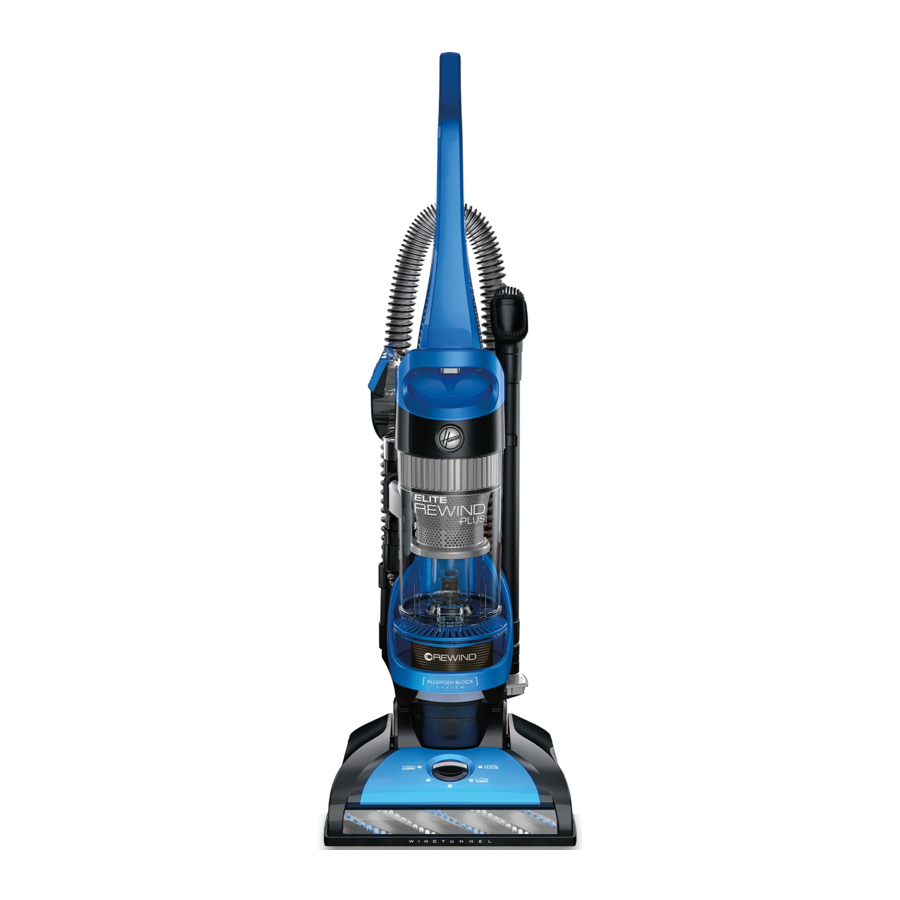

Hoover Elite Rewind Plus - Upright Vacuum Manual

Table of Contents

Contents

1 VACUUM ASSEMBLY
2 HOW TO USE
3 TOOLS
4 MAINTENANCE
5 TROUBLESHOOTING
6 IMPORTANT SAFETY INSTRUCTIONS
7 Documents / Resources
- 7.1 References
- 7.2 Download manual

VACUUM ASSEMBLY

CARTON CONTENTS

Handle
Vacuum Base
Extension Wand
Crevice Tool
Pet Turbo Tool
Dusting Brush
(1) Large Screw
Dirt Cup

Remove all parts from carton and identify each item shown.

Make sure all parts are located before disposing of packing materials.

ATTACH HANDLE

1.2 Insert handle section into Vacuum Base. Push down firmly. Using a Phillips screwdriver, fasten (1) large screw behind handle into Vacuum Base.

1.3 Wrap hose around top of hose guide located on the handle. Insert the hose into hose tube until you hear a click.

POSITION TOOLS

1.4 Place Crevice Tool into Extension Wand and slide into tool storage area on left back side (C) of vacuum and place Pet Turbo Tool on right back side (E) of vacuum as shown.

1.5 Place Dusting Brush (F) on top of Extension Wand.

ATTACH DIRT CUP

1.6 Place bottom of Dirt Cup into vacuum body first. Pivot cup into vacuum. Dirt Cup is secure when you hear a click.

HOW TO USE

VACUUM DESCRIPTION

Overview

Handle
Dirt Cup Release Button
Carry Handle
System Check Indicator
Rinsable Filter Access
Dirt Cup
Filter made with HEPA media
Height Adjustment
Furniture Guard
Dusting Brush
Extension Wand
Crevice Tool (inside Wand)
Cord Rewind Pedal
Handle Release Pedal
Hose
Pet Turbo Tool
ON/OFF Switch
Hose Release Button
Hose Connecting Tube

ON-OFF SWITCH

2.2 Plug cord into electrical outlet. To turn vacuum ON (I=0N), push ON/OFF switch (A) to ON position. To turn vacuum OFF (O=OFF), push switch to OFF position.

CORD RELEASE

2.3 Prior to using, grasp the end of the plug and pull to release the cord from the cord reel until red tape is reached.

NOTE: Pull the cord all the way out prior to using to prevent the cord from overheating.

When pulling on the cord, yellow tape will identify when the cord is almost fully extended. When red tape is visible on the cord, the cord has reached its full length. (Do not pull the cord past the red tape.)

CARPET HEIGHT ADJUSTMENT

2.4 To adjust height setting, PUSH DOWN and TURN knob (C) to desired height setting.
CARPET HEIGHT ADJUSTMENT*
For maximum cleaning performance, the following carpet height settings are recommended:

Hard floor setting: for use on hard floors only.
Low through High settings: Adjust depending on carpet type.
For high pile carpet, use high carpet setting to ease pushing effort.

*Number of height settings vary per model.

Actual model may vary from images shown.

If the vacuum is difficult to push, push down and turn knob to the next higher setting.

TOOLS

Tools allow for cleaning surfaces above the floor and for reaching hard to clean areas.

The vacuum is ready for tool use when handle is in upright position.

Brushroll continues to turn while product is turned on and handle is in upright position. To avoid damage to carpet, rugs, furniture and flooring, avoid tipping cleaner or setting it on furniture, fringed area rugs, or carpeted stairs during tool use.

SELECT PROPER TOOL

Extension Wand is used to give extra length to your hose. Use it with any of the above tools.
Crevice Tool may be used in tight spaces, corners and along edges in such places as dresser drawers, upholstered furniture, stairs and baseboards.
Pet Turbo Tool may be used for upholstered furniture, draperies, and carpeted stairs.
Dusting Brush made with delicate bristles to gently clean fine dust on blinds, shelves, and counter tops.

REMOVING HOSE

3.2 To remove hose for tool use, press the hose release button and pull hose end out.

To lock back into place, push hose into hose tube until you hear a click.

Not to be used for grooming a pet.

ATTACH WAND AND TOOLS

To reduce the risk of injury from moving parts - Unplug before servicing.

3.3 To attach tool or Wand to hose, push firmly into place.

STAIR CLEANING

3.4 Use the Hose, Pet Turbo Tool, and Crevice Tool for stair cleaning.

Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage. When using tools, always ensure handle is in the upright position.

CORD REWIND AND STORAGE

3.5 To return cord for storage, hold plug and press down Cord Release Pedal (B) on side of cord reel.

Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

HOW TO CLEAN TOOLS

To clean Hose and Pet Turbo Tool, wipe with a damp cloth. DO NOT submerge in water. Other cleaning tools may be washed in warm water with a detergent. Rinse and air dry 24 hours before using.

MAINTENANCE

Familiarize yourself with these home maintenance tasks as proper use and care of your vacuum will ensure continued cleaning effectiveness.

4.1 The System Check Indicator located at (A), alerts you to possible system performance issues.

PROBLEM	POSSIBLE CAUSE	POSSIBLE SOLUTION
If System Check Indicator is red:	Rinsable filter and/or filter made with HEPA media is dirty.	Clean rinsable filter and/or filter made with HEPA media
	Dirt Cup is full and/or clogged.	Empty Dirt Cup
	Cyclone filter assembly is clogged.	Clean cyclone filter assembly

Any other servicing should be done by an authorized service representative.

If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

information NOTICE
A Thermal Protector has been designed into your cleaner to protect it from overheating. When the thermal protector activates the cleaner will stop running. If this happens proceed as follows:

Turn cleaner OFF and unplug it from the electrical outlet.
Empty Dirt Cup.
Inspect the nozzle inlet, hose connector, hose, Dirt Cup inlet, cyclonic filter, rinsable filter, and HEPA filter. Clear obstructions if present.
When cleaner is unplugged and motor cools for 30 minutes, the thermal protector will deactivate and cleaning may continue.

If the thermal protector continues to activate after following the above steps, your cleaner needs servicing.

DIRT CUP: When to Empty

4.2 To maintain optimal performance, empty the Dirt Cup before the Dirt Cup reaches the max line (B). Place the vacuum in the upright position before removing the Dirt Cup.

To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without Dirt Cup or filters in place.
Very fine materials, such as face powder or cornstarch, may seal the filter and cause a reduction in performance. When using the vacuum for this type of dust, empty the cup and clean the filters often.

How to Empty
4.3 Press Dirt Cup release button (C) and pivot cup out.

4.4 Hold Dirt Cup over trash receptacle, push Dirt Cup door release lever (D) to open Dirt Cup door (E). Close Dirt Cup door (E). Press firmly to secure.

4.5 Place bottom of Dirt Cup into vacuum body first. Pivot Dirt Cup into vacuum body and press firmly until it locks into place.

FILTERS: When to Clean

To maintain optimal performance, filters should be cleaned at least every two months under normal use.

To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without Dirt Cup or filters in place.

Rinsable Filter: How to Clean
Remove Dirt Cup as described in Fig. 4.3.

4.6 Twist the Dirt Cup handle counterclockwise to open and remove lid.

4.7 Pull tab to remove rinsable filter. Rinse with water for two minutes or until water runs clear. Then squeeze out excess water. Allow 24 hours for filter to dry completely. Replace filter, tab side out.

4.8 Replace Dirt Cup lid and twist clockwise until locked in position. Replace Dirt Cup as described in Fig 4.5.

Allow filter to dry completely before replacing. Dry filter on edge so air circulates on both sides of filter. This may take up to 24 hours.

What to Buy: Rinsable Filter
When used and maintained properly, your Rinsable Filter should not need replacement within the warranty period. If desired, additional filter is available at Hoover.com or call 1-800-944-9200. Ask for Hoover ® Part No. 304087001.

Cyclonic Filter Assembly: How to Clean

To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without Dirt Cup or filters in place. Do not use vacuum without Dirt Cup or filters in place.

Remove Dirt Cup and twist the Dirt Cup handle counterclockwise to open and remove lid as described in 4.6.

4.9 Pull filter assembly (G) out of Dirt Cup and remove.

4.10 Dirt and debris can be cleaned from the filter assembly with the adjustable Dusting Brush.

4.11 Place the filter assembly on the Dirt Cup. Line up tabs (H) on lid with Dirt Cup body.

4.12 Replace Dirt Cup lid and twist clockwise until locked in position.

Replace Dirt Cup as described in Fig 4.5.

Filter Made With HEPA Media: How to Clean
4.13 With fingers under filter door lip, pull filter frame (A) out and away from vacuum body. Hold filter over a trash receptacle and tap out dirt and debris.

4.14 Bottom filter (B) must be pushed back into place first.

4.15 Then push the upper handle in (C) until it clicks.

4.16 Filter diagram: (B) bottom filter. (C) upper handle.

To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without Dirt Cup or filters in place.

DO NOT RINSE OR WASH THE FILTER MADE WITH HEPA MEDIA.

Filter Made With HEPA Media
When used and maintained properly, your Filter should not need replacement within the warranty period. If desired, additional filter is available at Hoover.com or call 1-800-944-9200. Ask for Hoover No. 440005573.

BRUSHROLL: How to Clean

To reduce the risk of injury from moving parts - Unplug before servicing.

Brushroll - Bottom plate with screws
Place handle in the low position and turn the cleaner over so the bottom side is up.

4.17 Remove the 6 screws as shown with a Phillips screwdriver.

4.18 Pivot off bottom plate.

4.19 Remove any debris and/or hair from brushroll. Replace the bottom plate aligning the screw holes and install the 6 screws as shown.

BELT

To reduce the risk of injury from moving parts - Unplug before servicing.

The belt is located under the bottom plate of the vacuum and should be checked from time to time to be sure it is in good condition.

When To Replace
Replace belt if it is damaged, cut or broken. Refer to directions below.

How To Replace - Bottom plate with screws
Place handle in the low position and turn the cleaner over so the bottom side is up.

4.20 Remove the 6 screws as shown with a Phillips screwdriver.

4.21 Lift off bottom plate (A).

4.22 Remove used belt from brushroll (C) then from motor shaft (metal rod) (D) and discard.

4.23 With lettering on outside of belt, slide new belt over motor shaft (metal rod) (E). Then slip around area of brushroll without bristles (G).

4.24 With belt in place, pull and slide brushroll into nozzle making sure that the brushroll end caps are in the correct orientation. Place the bottom plate aligning the screw holes and re-install the 6 screws.

What to Buy: Belt
If desired, additional belts can be purchased at Hoover.com or 1-800-944-9200. When purchasing a new belt for models ask for Belt - HOOVER ® part No. AH20080.

HOSE

To reduce the risk of personal injury - Unplug before cleaning or servicing.

How to Clean
4.25 To remove hose for tool use, press the hose release button (A) and pull hose end out.

Clear away debris or obstructions from hose. Do not use sharp objects to clean out hose as they can cause damage. To lock back into place, push hose into hose tube until you hear a click.

PET TURBO TOOL: How to Clean

(Tool varies per model)

To reduce the risk of injury from moving parts - Unplug vacuum before servicing.

4.26 Clean the Pet Turbo Tool by removing the two screws (A), located on the bottom cover, with a Phillips head screwdriver.

4.27 Remove the bottom cover (B). Clean out any debris or hair from the brushroll and turbine fan.

4.28 Replace the bottom cover, insert and tighten the (2) screws.

LUBRICATION

The motor and brushroll are equipped with bearings which contain sufficient lubrication for their lifetime.

The addition of lubricant could cause damage. Do not add lubricant to motor or brushroll.

TROUBLESHOOTING

If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the checklist below.

Any other servicing should be done by an authorized service representative.

If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

To reduce risk of personal injury - Unplug before cleaning or servicing.

PROBLEM	POSSIBLE CAUSE	POSSIBLE SOLUTION
Vacuum won't run	Power cord not firmly plugged into outlet.	Plug unit in firmly.
	Blown fuse or tripped breaker.	Check fuse or breaker in home. Replace fuse/reset breaker in home.
	Thermal Protector activated.	Unplug and allow vacuum to cool for 30min. (This willl reset the thermal protector)
System Check indicator has turned red or Vacuum won't pick up or Low suction	Rinsable Filter and/ or Filter made with HEPA media is dirty.	Clean Rinsable Filter and or Filter made with HEPA media
	Dirt Cup full and/ or clogged.	Empty Dirt Cup
	Broken or worn belt.	Replace belt
	Brushroll and/ or Hose clogged.	Check HoseCheck Brushroll
	Carpet height setting is incorrect.	Set Carpet Height Adjustment to appropriate setting for carpet being cleaned
Cord Rewind does not work	Cord reel does not retract.	Call 1-800-944-9200 for the nearest authorized service representative
Dust escaping from vacuum	Dirt Cup full.	Empty Dirt Cup
	Dirt Cup not installed correctly.	Review Dirt Cup removal & replacement
	Hose not installed correctly.	Review Hose installation
	Rinsable and/ or Filter made with HEPA media not installed completely.	Review Filter Removal and Cleaning
Vacuum is difficult to push or won't move forward	Carpet height setting is incorrect.	Set Carpet Height Adjustment knob to appropriate setting for carpet being cleaned
Pet Turbo Tool brushroll won't turn	Too much pressure being applied to tool.	Continue using tool applying light pressure.
	Blockage.	Remove blockage
	Low vacuum suction.	Check items under "Vacuum won't pick or Low suction."
Smoky/burning smell detected	Belt broken or stretched.	Replace brushroll belt
Smoky/burning smell detected	Brushroll is clogged.	Clear/ remove debris from brushroll

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

Fully assemble before operating.
Operate cleaner only at voltage specified on data label on bottom of cleaner.
Do not leave appliance when plugged in. Unplug from outlet when not in use and before cleaning or servicing.
Do not use outdoors or on wet surfaces.
Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.
Use only as described in this manual. Use only manufacturer's recommended attachments and products.
Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Do not handle plug or appliance with wet hands.
Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. Brushroll continues to rotate when in the upright position.
Turn off all controls before unplugging.
Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.
Do not use to pick up flammable or combustible liquids, such as gasoline, or fine wood sandings, or use in areas where they may be present.
Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.
Unplug before connecting Pet Turbo Tool.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
Do not use without Dirt Cup and/or filters in place.

TO REDUCE THE RISK OF DAMAGE:

Avoid picking up hard, sharp objects with this product, as they may cause damage.
Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.
Brushroll continues to turn while product is turned on and handle is in upright position. To avoid damage to carpet, rugs, furniture and flooring, avoid tipping cleaner or setting it on furniture, fringed area rugs, or carpeted stairs during tool use.
Do not use sharp objects to clean out hose as they can cause damage.
With brushroll on, do not allow cleaner to sit in one location for an extended period of time, as damage to the floor can result.

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrican to install the proper outlet. Do not change the plug in any way.

hoover.com

Questions or concerns?
For assistance, please call Customer Service at 1-800-944-9200 Mon-Fri 8am-7pm EST.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.
IF USED COMMERCIALLY WARRANTY IS VOID.

Be sure to register your product online at Hoover.com or call 1-800-944-9200 to register by phone.

If you need assistance:
Visit our website at hoover.com. Follow the authorized dealer locator link to find the Hoover ® authorized dealer nearest you or call 1-800-944-9200 for an automated referral of Hoover ® authorized dealer locations (U.S. only) or to speak with a customer service representative; Mon- Fri 8am- 7pm EST.
