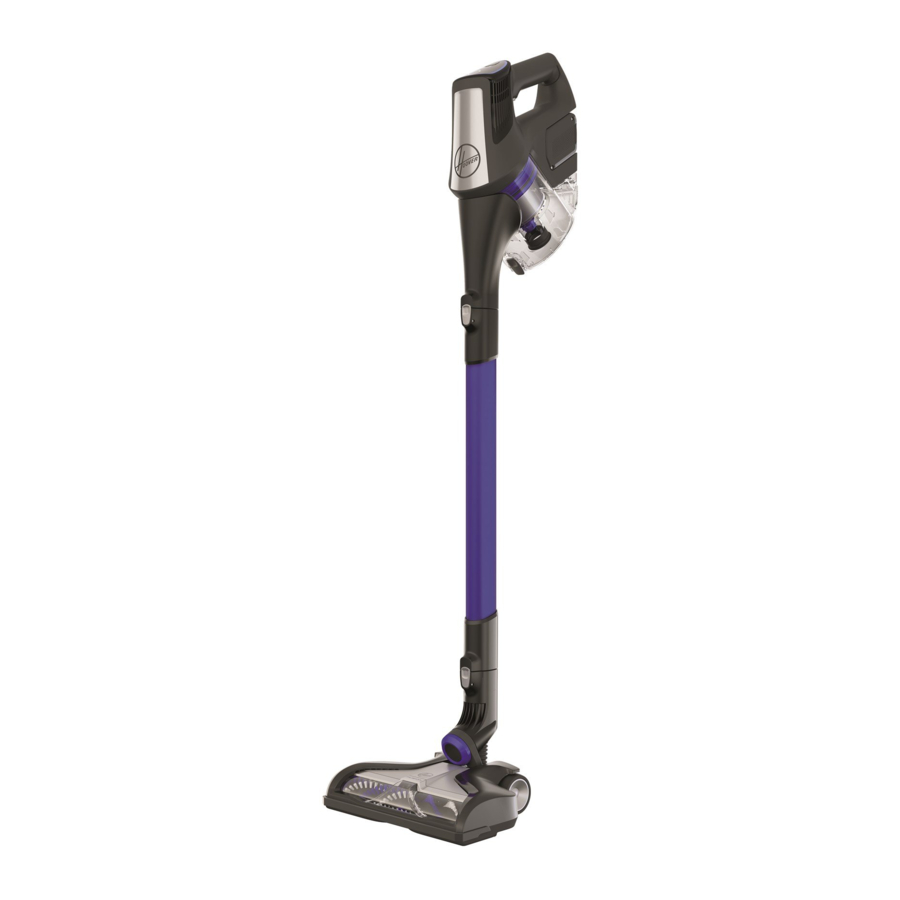

Hoover FUSION - Cordless Vacuum Manual

Getting to know your Device

1. Hoover Dashboard
2. XL Easy Empty Dirt Cup
3. Dirt Empty Button
4. Release Button
5. Reach Wand
6. Swivel Steering
7. Easy Clean Brush Roll
8. Powered Nozzle with WindTunnel Technology
9. Battery Level Indicator
10. Mode Button
11. Power Trigger
12. Hoover Lithium Battery
13. Hoover Charger

What's in the Box

CONTENTS VARY DEPENDING ON THE MODEL PURCHASED.
Unit Model	Crevice Tool	Dusting Brush	Upholstery Tool	Pet Upholstery Tool
BH53100/CA
BH53110/CDI
BH53120

All models come with a Handheld, Powered Nozzle, Reach Wand, Hoover Lithium Battery, Charger and Wall Mount.

Assembly

1. Push the Reach Wand down onto the Powered Nozzle until it clicks into place.

2. Push the Handheld down onto the Reach Wand until it clicks into place.

3. Before first use be sure to fully charge the battery.
   TIP: Charging your Hoover Lithium Battery may take up to 3 hours


To reduce the risk of personal injury, remove battery before cleaning or servicing.

This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance always lie flat on the floor in a suitable location so it does not become a trip hazard or can be stepped on.

Mounting the Wall Bracket

First, fully assemble the vacuum but do not attach the battery.

1. Snap the Wall Bracket arm into the Wall Bracket and screw into place. Hold the vacuum against the wall. Position the Wall Bracket behind the Handheld so that the hook holds the vacuum.
   TIP: The Floor Nozzle must be flat on the ground for proper wall mounting.

2. Set the vacuum aside. Mark the Wall Anchor locations. Install the anchors and screw the Wall Bracket to the wall.


Use BOTH screws to mount the Wall Bracket to wall.

3. Store tools in the storage bag and hang from the accessory tool holder.

4. Store the Vacuum on the Wall Bracket arm.


Charging your ONE PWR Lithium Battery

1. Charge the battery fully before first use, this will take up to 3 hours.
   NOTE: Due to federal regulations the battery does not come fully charged.

2. When charging, the charger will illuminate to indicate charging progress.

3. Once charge is complete, remove the Hoover ® Charger Lithium Battery from the charger and place it into the handheld for cleaning.


See label on the bottom of the charger for charge indicator explanation.

The Hoover Dashboard

1. The Hoover Dashboard illuminates when the vacuum is ON. The default setting is Carpet. The brush roll is at full speed.

2. Press the Mode button to transition to Hard Floor. Hard Floor will illuminate and brush roll speed will be Low.

3. When no words are illuminated on the Hoover Dashboard, the vacuum is running on suction only. The brush roll is OFF.

4. The Hoover Dashboard will light up if there is a System error. Refer to the Maintenance section for further information.


Quick Start

1. Multi-Floor Cleaning

2. Handheld Cleaning

3. Up High Cleaning


Using your Device

1. Squeeze the trigger to turn the vacuum ON. Release the trigger to shut the vacuum OFF.
   NOTE: When power is ON, the Hoover Dashboard will light up.

2. For continuous power, double-click the trigger. Power should remain ON. Pull trigger again to power OFF.

3. Push the "Mode" button on the Hoover Dashboard to go between Carpet, Hard Floor, and Suction Only mode. The vacuum will default to "Carpet" mode.
   NOTE: If there's no words illuminated, the vacuum will be in "Suction Only Mode".

4. When in use, the Hoover Dashboard will display the battery level and selected mode. When the battery level is getting low, recharge the battery.


This vacuum cleaner has a constantly rotating brush roll when the Hoover Dashboard displays "Carpet" or "Hardfloor". Never leave the vacuum cleaner in one spot for an extended period of time as this may damage the floor surface.

Risk of personal injury – the brush roll may suddenly restart. Turn power switch OFF and remove the battery before cleaning or servicing the brush roll.

Using your Device as a Handheld

1. Press the Handheld Release Button. Pull to separate the Handheld from the Reach Wand.

2. Choose an accessory. (All accessories not available on all models).

3. Push the chosen accessory into the Handheld until it clicks into place.
   TIP: All available accessories can be attached directly onto the Handheld.


Not to be used for grooming a pet.

This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance always lie flat on the floor in a suitable location so it does not become a trip hazard or can be stepped on.

Using your Device to Clean Up High

1. Press the Powered Nozzle Release Button and pull to remove the Powered Nozzle from the Reach Wand.

2. Choose an accessory (all accessories not available on all models).

3. Push the chosen accessory into the Reach Wand until it clicks into place.
   TIP: The Reach Wand can be used for hard-toreach places.


This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance always lie flat on the floor in a suitable location so it does not become a trip hazard or can be stepped on.

System Error Troubleshooting

Error
Brush roll stall
Clog error

If your Error Light is flashing, you may have a clog. Turn the product off, remove the handheld and keep off for at least 5 seconds.

1. Turn it back on, if after 10 seconds the indicator comes back on, clean your filter (refer to Maintenance: Cleaning the Filter, Dirt Cup and Separator page).
2. If it doesn't come back on after 10 seconds, the clog is either in the Reach Wand, Powered Nozzle or whichever accessory tool you were using.

If your Error Light is solid, your brush roll has stalled.

1. Release trigger for at least 5 seconds.
2. Remove obstruction or clean brush roll (refer to Maintenance: Removing and Replacing the Brush Roll page).
3. Wait 5 seconds and then power the vacuum on to ensure the light goes off.

Crevice tool opening is small and may cause a faulty system error. If System Error occurs with crevice tool in use, turn the product off, remove the crevice tool and then power the product back on and check the error light.

Maintenance

Removing the Hoover Lithium Battery

1. Lie the Handheld on its side on a flat stable surface. Pull the "Battery Release Button" back to release the Hoover Lithium Battery.

2. Slide the Hoover Lithium Battery out from the bottom of the Handheld.

3. Place Hoover Lithium Battery on charger.


To reduce the risk of personal injury, remove battery before maintaining or servicing your vacuum.

Emptying the Dirt Cup

1. Press the Handheld release button. Pull to separate the Handheld from the Reach Wand.

2. Ensure the Hoover Lithium Battery has been removed and hold the Handheld over a trash bin.
   TIP: Wrap bag around dirt cup to capture dirt and dust.

3. Press the Dirt Empty Button.


To reduce the risk of personal injury, remove battery before maintaining or servicing your vacuum.

This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance always lie flat on the floor in a suitable location so it does not become a trip hazard or can be stepped on.

Cleaning the Filter/Dirt Cup and Separator

1. Remove the Reach Wand. Press the Dirt Cup release button and pull the Dirt Cup away.

2. Pull the filter away and tap over a trash bin to remove dirt. Rinse filter under warm water until water is clear. Allow filter to dry for 24 hours or until completely dry before reinstalling.

3. To clean the separator, lift to remove. Clean dirt & debris, then place back into dirt cup.

4. To reassemble, align the hook to the front. Push the dirt cup backwards, until it locks in place.


To reduce the risk of personal injury, remove battery before cleaning or servicing.

Do not use soap or other chemicals to clean. Dry filter completely, for up to 24 hours, before reinstalling into the product.

Removing and Replacing the Brush Roll

1. Remove Powered Nozzle from Reach Wand. Turn the Powered Nozzle upside down. Slide the Brush Roll Release Button.

2. Lift the end of brush roll to remove from the Powered Nozzle.

3. Clear any threads or hair from both ends of the brush roll and any dirt or debris inside the housing of the Powered Nozzle.

4. Re-fit the brush roll into the housing.


Risk of personal injury – the brush roll may suddenly restart. Turn power OFF and remove the battery before cleaning or servicing the brush roll.

How to Order Accessories

WHAT TO BUY:
Buy Genuine Hoover Parts & Accessories: If you are in need of a new part, attachment or accessory, visit Hoover.com or Hoover.ca for more information. Having trouble locating an item or model on our site, contact Customer Care at 888 679-2121.

Need Help?

My device won't turn on

Your battery may not be charged. Check the Charge Level Indicator and charge the battery if it's low. Charge time may take up to 3 hours.
Due to federal regulations the battery does not come fully charged.

My device isn't picking up well

You may have a clogged filter. Your filter should be rinsed every 4-6 times you fill the dirt cup or at least once a month. Remove the filter. Rinse with clear warm water for two minutes. Let it dry for 24 hours or until completely dry before reinstalling it.

If your suction power seems low

You may also have a clog in the system. Check the Reach Wand for any clogged debris. If found, remove the clog.

My unit is not picking up well on carpet

Make sure that your display shows that you're in "Carpet" mode. If you're not, push the mode button until "Carpet" illuminates on the display.

Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

To reduce the risk of personal injury, remove battery before cleaning or servicing.

QUESTIONS OR CONCERNS?
Hoover.com/support or Hoover.ca/support
Connect with us:
Twitter: @HooverUSA • Facebook: facebook.com/hoover
Do not return to store. See back of product for model number.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERCIALLY WARRANTY IS VOID.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, DAMAGE OR INJURY:

• Fully assemble before operating.
• Do not use appliance on wet surfaces. Do not expose appliances to rain. Store appliances indoors.
• The charger is for indoor use only. Be sure to always keep the battery and charger indoors in a dry place.
• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.
• Use only as described in this manual. Use only Hoover recommended attachments and products.
• Do not use charger with damaged cord or plug. If appliance or charger is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.
• Do not pull or carry charger by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug charger by pulling on cord. To unplug charger, grasp the plug, not the cord.
• Do not handle charger including charger plug and charger terminals, or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs to avoid personal injury or damage, and to prevent the cleaner from falling.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or fine wood shavings, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without Dirt Cup and/or Filters in place.
• Turn power switch off and remove battery before removing or installing brush roll.
• Always turn off this appliance before connecting or disconnecting Motorized Turbo Tool or tools.
• Do not incinerate the charger, battery, or appliance even if it is severely damaged. The batteries can explode in a fire.
• This product includes rechargeable Lithium-Ion Batteries. Do not expose batteries to high temperatures, as they may catch fire and/or explode.
• Do not expose battery to crushing, incineration or similar actions.
• Do not dispose of battery in a fire or trash compactor. See battery disposal section for directions.
• Do not attempt to disassemble battery.
• Unplug the charger from the outlet before any routine cleaning or maintenance.
• Leaks from battery cells can occur under extreme conditions. If any liquid gets on the skin wash quickly with soap and water. If any liquid gets into the eyes, do not rub eyes, immediately flush them with clean water continuously for a minimum of 15 minutes. Seek medical attention immediately.
• Use only the charger (Hoover Model #BH04200, BH04230) supplied by Hoover to recharge.
• Use only the battery (Hoover Model #BH04000, BH04010, BH04020) supplied by Hoover. Other batteries may burst causing serious personal injury or damage.
• Do not touch or insert objects into battery pack or charger terminals.
• Do not attempt to short circuit the battery or charger terminals.
• Prevent unintentional starting. Ensure the appliance is off before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the trigger or energizing appliances that are powered on invites accidents.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

CHARGING AMBIENT TEMPERATURE RANGE: 5°C-50°C (41°F - 122°F)

• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

The battery used in this device may present a risk of fire or chemical burn if mistreated.
Do not disassemble, heat above manufacturer's maximum temperature limit (60°C/140°F), or incinerate. Replace battery with Hoover Battery Part #BH04000, BH04010, BH04020 only. Use of another battery may present a risk of fire or explosion. Dispose of used battery promptly. Keep away from children. Do not disassemble and do not dispose of in fire. Do not attempt to disassemble the battery or remove any component projecting from the battery terminals. The battery and charger have no user serviceable parts. Fire or injury may result. Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting

SERVICE & WARRANTY FOR YOUR PRODUCT & BATTERY SERVICE INFORMATION

HOW TO MAKE A WARRANTY CLAIM: If this product is not as warranted, take or send the product to a Hoover Authorized Warranty Service Dealer along with proof of purchase. If the batteries are not as warranted, either take or send the batteries along with proof of purchase to a Hoover authorized dealer or contact Hoover Services at 888 679-2121. For an automated referral to authorized service outlets in the U.S.A., phone 888 679-2121 or visit Hoover online at www.hoover.com.

REPLACEMENT PARTS:
Filter: 440011434
Battery: BH04000, BH04010, BH04020
Charger: BH04200, BH04230

Register your vacuum by:
Visiting Hoover.com or Hoover.ca
Calling 888 679-2121
