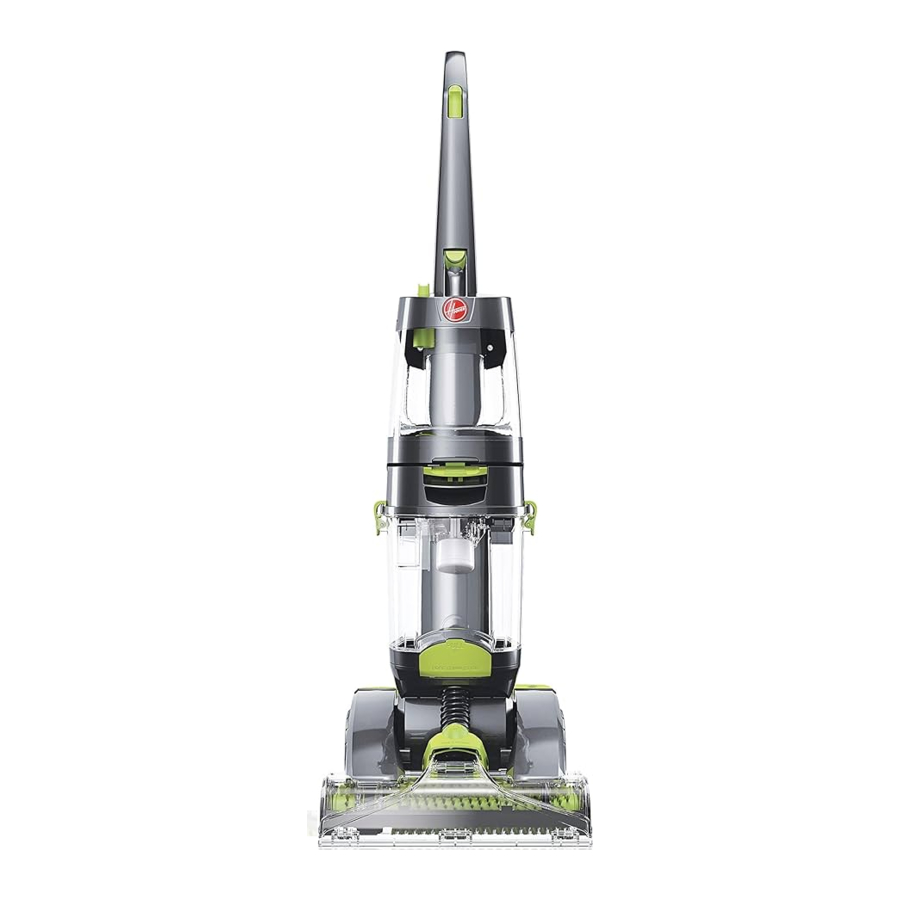

Hoover Pro Clean Pet - Carpet Washer Manual

Introduction

READ CAREFULLY BEFORE ASSEMBLY AND USE.
Please enter the complete model and Manufacturing Code in the spaces provided.
MODEL
MFG. CODE
Hint: Attach your sales receipt to this owner's manual. Verification of date of purchase may be required for warranty service of your HOOVER ® product.
Be sure to register your product online at Hoover.com or call 1-800-944-9200 to register by phone.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Fully assemble before operating.
• Operate cleaner only at voltage specified on data plate on lower back of cleaner.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before cleaning or servicing.
• Use indoors only.
• Do Not immerse. Use only on carpet moistened by cleaning process.
• Use only HOOVER^® cleaning products intended for use with this machine. (See the "Cleaning Products" section of this manual.)
• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used by or near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.
• Use only as described in this manual. Use only manufacturer's recommended attachments and products.
• Do not use product with damaged cord or plug. If product is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call customer service at 1-800-944-9200 prior to continuing use.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or fine wood sandings, or use in areas where they may be present.
• Connect to a properly grounded outlet only. See Grounding Instructions.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without tanks in place.
• Do not clean over floor electrical outlets.
•
  This product contains chemicals known to the State of California to cause cancer, birth defects or reproductive harm. WASH HANDS AFTER HANDLING.

GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor (C) and grounding plug (A). The plug must be inserted into an appropriate outlet (B) that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of the equipment-grounding conductor can result in the risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug (A) illustrated in Fig. 1. A temporary adapter (D) may be used to connect this plug to a 2-pole receptacle (E) if a properly grounded outlet is not available (Fig. 2). The temporary adapter should be used only until a properly grounded outlet (B) can be installed by a qualified electrician (Fig. 1). The green colored rigid ear, lug, or the like (F) extending from the adapter must be connected to a permanent ground (G) such as a properly grounded outlet box cover (Fig. 2). Whenever the adapter is used, it must be held in place by a metal screw. NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.

TO REDUCE THE RISK OF DAMAGE:

• Avoid picking up hard, sharp objects with this product, as they may cause damage.
• Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.
• To assist in reducing drying time, be certain the area is well ventilated when using detergents and other cleaners with this machine.
• To help prevent matting and resoiling, avoid contact with carpets until they are dry.
  Keep children and pets away from carpets until they are completely dry.
• Do not store extractor with solution in tanks.
• With brushrolls on, do not allow cleaner to sit in one location for an extended period of time, as damage to the floor can result.
• Do not use this extractor and accessories on hard floors. Using this machine on hard floors may scratch or damage your floor.
• Water will drip from the brushes and underside of the product after use and may puddle. To avoid damage to wood and laminate flooring and to avoid potential slip hazard, after use

1. do not leave the product on wood and laminate surfaces and remove to a hard surface and
2. place unit on absorbent material (such as a towel) to soak up drips.

• Do not use sharp objects to clean out hose as they can cause damage.

FEATURES

1. Handle Grip
2. Solution Trigger
3. Clean Boost™ Trigger
4. Clean Water/Solution Tank Release Button
5. Carry Handle
6. Clean Water/Solution Tank
7. Dirty Water Tank Release Latch

CLEANER ASSEMBLY

CARTON CONTENTS

1. Carpet Cleaner Base
2. Handle
3. Clean Water/Solution Tank
4. Upholstery Tool
5. Carpet Cleaning Detergent
6. Hose

Remove all parts from carton and identify each item shown.
Make sure all parts are located before disposing of packing materials.
*Select models only

HOW TO ASSEMBLE

BASE AND LOWER HANDLE ASSEMBLY

1. Stand base in upright position. Push handle onto base.

2. Turn dial counter clockwise to "LOCK" postion. Dial should stop when locked and handle should feel secure.

3. Place clean water tank securely on handle above dirty water tank until it snaps into place.


CORD STORAGE
Wrap cord around cord hooks for convenient storage. Attach the plug end to cord.

BEFORE YOU BEGIN CLEANING

1. Vacuum thoroughly - For carpet, use a HOOVER^® vacuum cleaner with an agitator for best results. Vacuum upholstery with a vacuum cleaner with cleaning tool attachments. Use a crevice tool to reach into tufts and folds. Do not use the carpet cleaner as a dry vacuum cleaner.
2. For upholstery, check cleaning code - Use your HOOVER^® carpet washer only if the upholstery fabric is marked with a "W" (for "wet" clean) or "S/W" (for "solvent/dry" or "wet" clean). Do not clean fabric marked "S" ("solvent/dry" clean only). If your upholstery does not have a code, seek professional assistance.
3. Test for colorfastness - Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait ten minutes and check for color removal or bleed with white paper towel or cloth. If surface has more than one color, check all colors.
4. When cleaning entire floor, move furniture out of area to be cleaned (may not be necessary if only high traffic areas are to be cleaned).
   For furniture too heavy to move, place aluminum foil or wax paper under legs. This will prevent wood finishes from staining carpet. Pin up furniture skirts and draperies.
5. Pretreat spots and heavy traffic areas with an appropriate Hoover Cleaning Solutions, see "Cleaning Solutions" section.
   Follow Directions on bottle.
   *Available at additional cost if not included with your model.
6. To prevent staining, use plastic or aluminum foil to protect wood or metal surfaces from possible water spray.
7. To avoid wetting and possible damage to wood floors underneath area rugs/carpet, either move area rugs/ carpet to a non-wood hard floor surface or place waterproof material (e.g. plastic) underneath them before cleaning.

ATTENTION
Prior to use, consult with Carpet Manufacturer on cleaning recommendations for natural fiber carpeting (including silk and wool), soft carpeting, and loop Berber carpeting. Do not use on rugs or carpet when dry cleaning is recommended.
ATTENTION
Some Berber, Natural Fiber, and Soft Fiber carpets can fuzz with wear. Some vacuums & carpet cleaners can worsen this carpet wear. Test a hidden area before using on a full room & consult with your carpet manufacturer on cleaning recommendations.

Always turn off appliance before connecting or disconnecting hose.
Disconnect hose and solution tube from cleaner.
Drain solution tube by placing round end in sink and raising the trigger end at the hose nozzle above your head (4.6). Press the trigger to release air and fluid.
Replace Hose and tools in the Mesh Storage Bag.

CLEANING UPHOLSTERY
Read "Before You Begin Cleaning" instructions.
Be sure to check Hoover Cleaning Guide and the cleaning code on your upholstery. Use your cleaner only on upholstery marked "W" or "W/S".

1. Attach hose and solution tube as instructed.
2. Place handle in upright position. Brushes will not rotate while handle is in upright position.
3. Fill Clean Water Tank according to instructions.
4. Attach tool to end of hose.
5. Dry hands and plug cleaner into a properly grounded outlet.
6. Turn cleaner ON.
7. Gently press the tool onto the fabric. Press the trigger and slowly pull the nozzle over the fabric.

8. Overlap strokes by 1/2 inch to help prevent streaking.
9. Make additional strokes without pressing the trigger to remove more solution.
   To clean in corners or creases, lift the tool one half inch from the fabric and press the solution trigger.
10. 4.8 For heavily soiled areas, it may be necessary to repeat the cleaning process. Make crisscrossing strokes to the original pattern; overlap each pass.
    Make no more than 2 passes with the solution over any one area to prevent over-wetting and damage to fabric.

11. For best cleaning results, Hoover recommends to rinse the upholstery with water only. This will remove residual cleaning solution from your upholstery.
    Simply fill your clean water tank with water only and repeat steps 7 and 8.

If additional cleaning is necessary, wait until the upholstery is completely dry before using the tool again.
Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see "Automatic Shut-Off").
When finished cleaning, follow "After Cleaning" and "After Using Tool" instructions.

MAINTENANCE

Familiarize yourself with these home maintenance tasks as proper use and care of your cleaner will ensure continued cleaning effectiveness.
Any other servicing should be done by an authorized service representative.
If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call customer service at 1-800-944-9200 prior to continuing use.

To reduce the risk of personal injury - Unplug before cleaning or servicing.

CLEANING THE DIRTY WATER TANK
Note: During normal use of cleaning, debris may accumulate inside of dirty water tank. In order to keep your unit functioning properly and to prevent any odors from building up, it is best to rinse out your dirty water tank with fresh water after each use.

1. Remove dirty water tank from unit by pressing on latch and pulling the tank out at an angle.

2. Pull up on latches to open dirty water tank. Remove top and rinse tank with clean water.

   Be sure to remove any debris that has accumulated in the filter screen. If the screen becomes clogged, this may reduce the performance of your cleaner.

3. To clean dirty water tank ducting, place dirty water tank under faucet and dispense high pressure clean water into the inlet port of the dirty water tank to backflush any loose accumulated debris.

4. Be sure to clean the filter screen that is located in the duct of the recovery tank base.

5. Allow tank to air dry completely. Pull up on latches then back down to lock. Latches will snap when locked. Replace dirty water tank back onto unit until it snaps.
   Note: The filter screen is not removable. Attempts to remove the filter screen from the tank may damage the filter screen.


LUBRICATION
The motor and brushrolls are equipped with bearings which contain sufficient lubrication for their lifetime. The addition of lubricant could cause damage. Do not add lubricant to motor or bearings.

REMOVING AND CLEANING NOZZLE
Nozzle: How to Clean
If lint or other debris becomes lodged in nozzle, it can be removed for cleaning.

To reduce the risk of injury from moving parts - unplug cleaner before servicing.

6. To prevent possible leaking, remove Clean Water Tank and Dirty Water Tank with handle in upright position, tilt carpet washer back.

7. Pull up on nozzle latch slightly to unsnap nozzle from foot of carpet washer.

8. Pull nozzle forward to remove from carpet washer.

9. Rinse debris from nozzle.

10. Position nozzle on to foot, making sure to align the tabs at the bottom of the nozzle with the notches on the foot. Snap nozzle to foot.


STORAGE
Before storing:

• Empty Clean Water Tank and let air dry. Replace on cleaner.
• Empty Dirty Water Tank, rinse tank and lid thoroughly with clean water and let air dry.

Allow brushes and underside of carpet cleaner to air dry thoroughly before storing carpet cleaner on a carpeted or wood surface.

BELT OR BRUSHROLL: How to Remove and Replace

To reduce the risk of injury from moving parts - Unplug before servicing.

Belt: What to Buy
For replacement belts please order part number 440005536 or to locate a dealer nearest you, please call 1-800-944-9200 or visit our website at www.hoover.com

How to Remove

11. Flip cleaner on its back to expose bottom of cleaner.
    NOTE: Belt cover is 4 pieces and has 15 screws.

12. To remove first piece of belt cover, remove 3 screws. Arrows show location of screws.
    NOTE: Screw locations are numbered on belt covers.

13. Remove belt guard.

14. To remove second piece of belt cover, remove the 3 screws. Arrows show location of screws.

15. Slide brushroll end cap out to remove.

16. Pull both brushrolls toward user to remove from unit.
    NOTE: Belt will still be attached to unit.

17. To remove upper belt cover, remove 7 screws. Arrows show location of screws.

18. Flip cleaner upright and remove upper belt cover from foot.

19. Remove pivot clamp by unscrewing 2 screws.

20. Lift pivot clamp off the unit after removing screws.

21. The belt shaft is now exposed (as shown in image 5.22)


TROUBLESHOOTING

If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the checklist below.
If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call customer service at 1-800-944-9200 prior to continuing use.

To reduce the risk of personal injury - Unplug before cleaning or servicing.

CLEANING SOLUTIONS

To reduce risk of fire and electric shock due to internal component damage, use only HOOVER^® cleaning products intended for use with the appliance as noted below.
Use only HOOVER^® cleaning solutions to prevent potential harm to your Carpet Cleaner and keep your warranty.
For best results, use your Carpet Cleaner + Spot Treatment + Solutions.
HOOVER^® has a full line of Detergents and Spot Treatments to complement your Hoover Carpet Cleaner and the specific condition of your carpet. To prevent project interruption, keep Detergent on hand and store with your Carpet Cleaner. Spot Treatment may be used as a pre-treat immediately before you clean your carpets, or as an independent treatment between cleaning your carpets.

HOOVER ® Cleaning Solution Guide

Questions or concerns? For assistance, please call Customer Service at 1-800-944-9200 Mon-Fri 9am-6pm EST before returning this product to the store.
THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERCIALLY WARRANTY IS VOID.

If you need assistance:
To speak with a customer service representative call 1-800-944-9200; Mon-Fri 9am-6pm EST.
Always identify your vacuum by the complete model number when requesting information or ordering parts. (The model number appears on the bottom of the vacuum.)
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
