- Page 1 CT-DECT Multi WireCom – Digital Interface Base Transmitter/Receiver Device CT-DECT Multi WireCom – Digital In- terface Base with integrated WireCom electronics and optional encryption Operating Instructions English dok1262-be-03-0517...
- Page 2 Safekeeping – storage ........................8 Maintenance ........................... 9 Visual inspections ........................9 Cleaning ..........................9 On-air subscription of CT-DECT Standard headsets to the CT-DECT Multi WireCom – Digital Interface Base ............................10 General ..........................10 Principle of subscription ......................10 On-air subscription .........................
- Page 3 Use CeoTronics products only without damage and abrasion. If repair work of any kind needs to be done to CeoTronics products, arrange for it to be performed only by the company CeoTronics or by a specialized workshop that is authorized by CeoTronics. In all other cases, our warranty and liability for the product shall lapse.
- Page 4 Road traffic hazard! Do not leave CeoTronics products lying around loose in cars, e.g. on the parcel shelf. Stow these products in a suitable, safe place in the car so that they do not present a danger to you or to other occupants of the car, if emergency braking is effected.
- Page 5 The end user has to check and decide that the products can be used without risk. CeoTronics does not take over responsibility for any damage or material losses nor injuries to persons, caused by the use described above or by any other abnormal use of the products.
- Page 6 With the optional PTT button, integrated in the CT-DECT Standard headset, the »mobile« user is able to transmit a PTT criterion (PTT = push to talk) to the CT-DECT Multi WireCom – Digital Interface Base station which is connected to the ring circuit of the WireCom system. With this PTT criterion it is possi- ble to key via telecommand e.g.

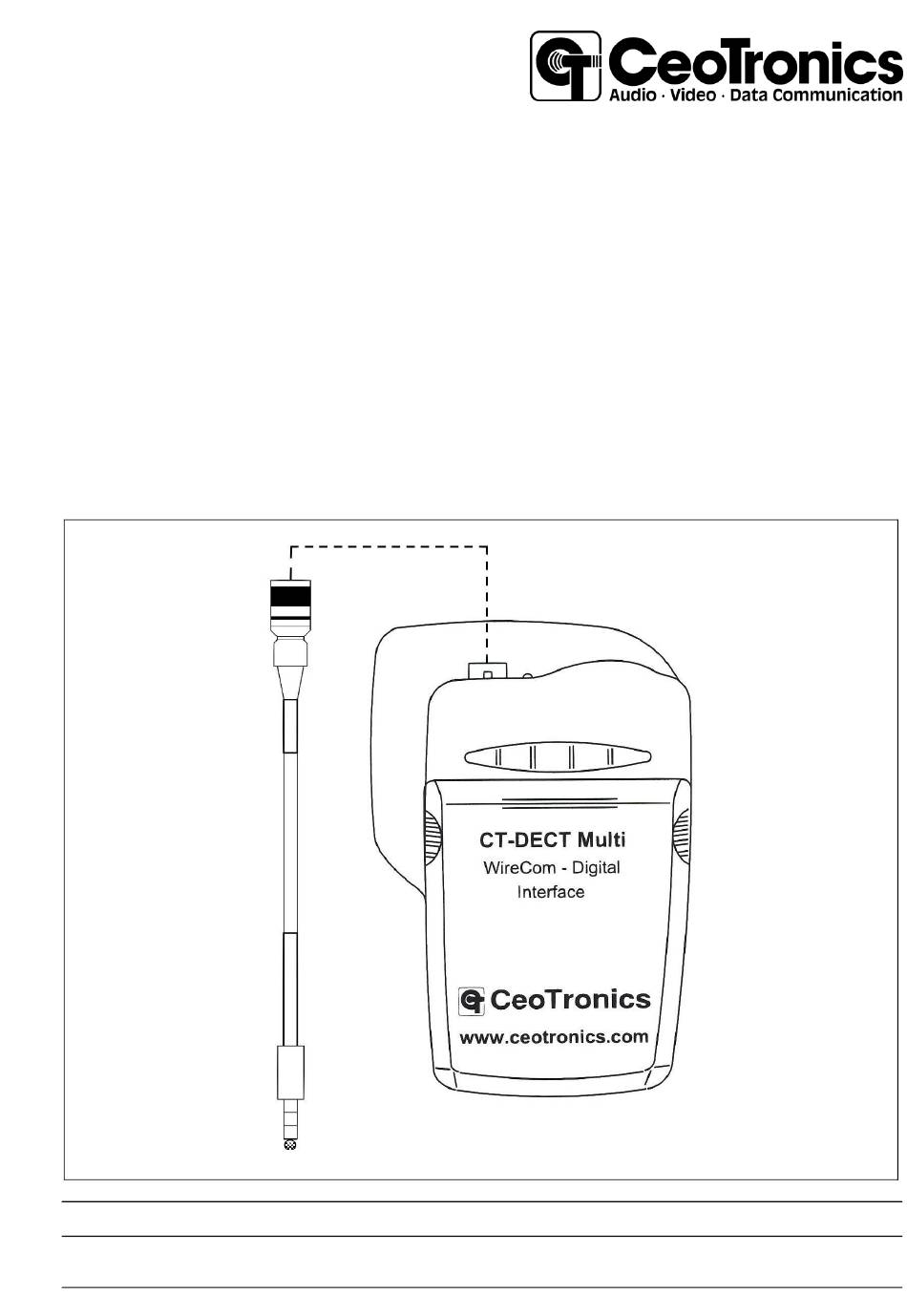

- Page 7 Figure 1 Operation and connection elements Jack plug »Nexus TP120« to connect the CT-DECT Multi WireCom – Digital Interface Base to the ring circuit of the WireCom system Adapter cable, length approximately 40 cm (with plugs) 6-pole plug »Hirose« to connect the adapter cable to the CT-DECT Multi WireCom – Digital Inter- face Base 6-pole socket »Hirose«...
- Page 8 If not connected yet, plug the 6-pole connector (figure 1/c) of the adapter cable into the 6-pole socket (figure 1/d) of the CT-DECT Multi WireCom – Digital Interface Base. Connect the CT-DECT Multi WireCom – Digital Interface Base with the jack plug (figure 1/a) to the ring circuit of the WireCom system.
- Page 9 PLEASE NOTE After factory repair of the CT-DECT Multi WireCom – Digital Interface Base, CT-DECT Standard headsets have to be newly subscribed to the CT-DECT Multi WireCom – Digital Interface Base. For more details regarding subscription, refer to chapter 7.
- Page 10 Base and the maximum four CT-DECT Standard headsets. This subscription procedure, which has to be performed only once, is performed on the CT-DECT Multi WireCom – Digital Interface Base and the maximum four CT-DECT Standard headsets manually by means of a procedure carried out by the op- erator.
- Page 11 Follow the recommendations of the special CeoTronics instruction manual for this headset. b. On the CT-DECT Multi WireCom – Digital Interface Base, push at least one of the five buttons of the pushbutton bank (figure 1/g) and keep it depressed. While keeping the button depressed, connect the CT-DECT Multi WireCom –...
- Page 12 CeoTronics AG, Rödermark, Deutschland. Information of Conformity Hereby the CeoTronics AG declares, that the device „CT-DECT Multi WireCom – Digital Interface Base“ is in compliance with the essential requirements and the other relevant regulations of the directive 2014/53/EU (RED).
