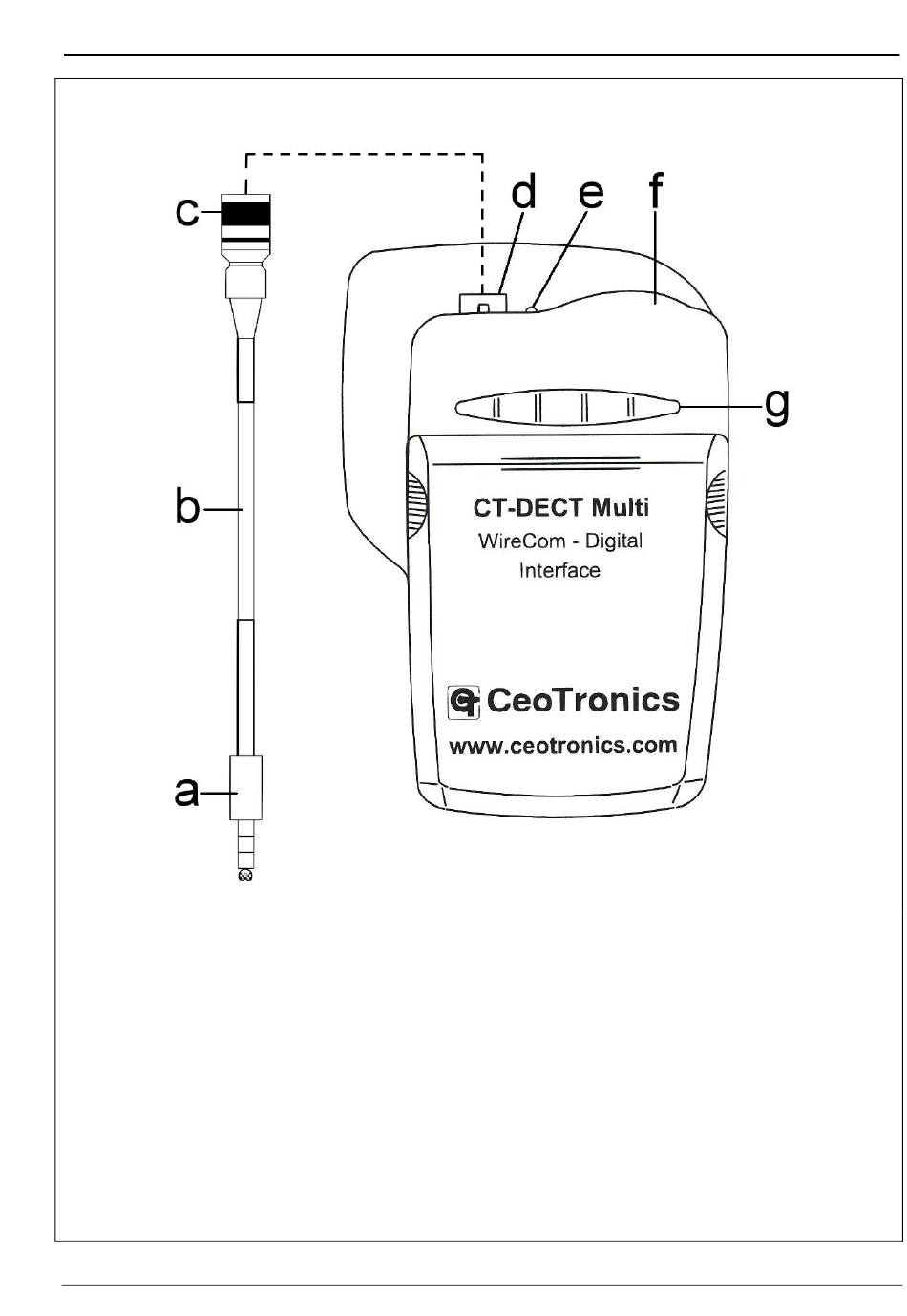

Figure 1 Operation and connection elements
Jack plug »Nexus TP120« to connect the CT-DECT Multi WireCom – Digital Interface Base to the
a
ring circuit of the WireCom system
b Adapter cable, length approximately 40 cm (with plugs)
6-pole plug »Hirose« to connect the adapter cable to the CT-DECT Multi WireCom – Digital Inter-
c
face Base
d 6-pole socket »Hirose« to connect the adapter cable
LED to display the status (green – ready for operation / red – subscription process)
e
CT-DECT Multi WireCom – Digital Interface Base
f
g Bank of 5 pushbuttons
All five pushbuttons are used for subscription of the CT-DECT Multi WireCom – Digital Interface
Base (see 7...7.4)
