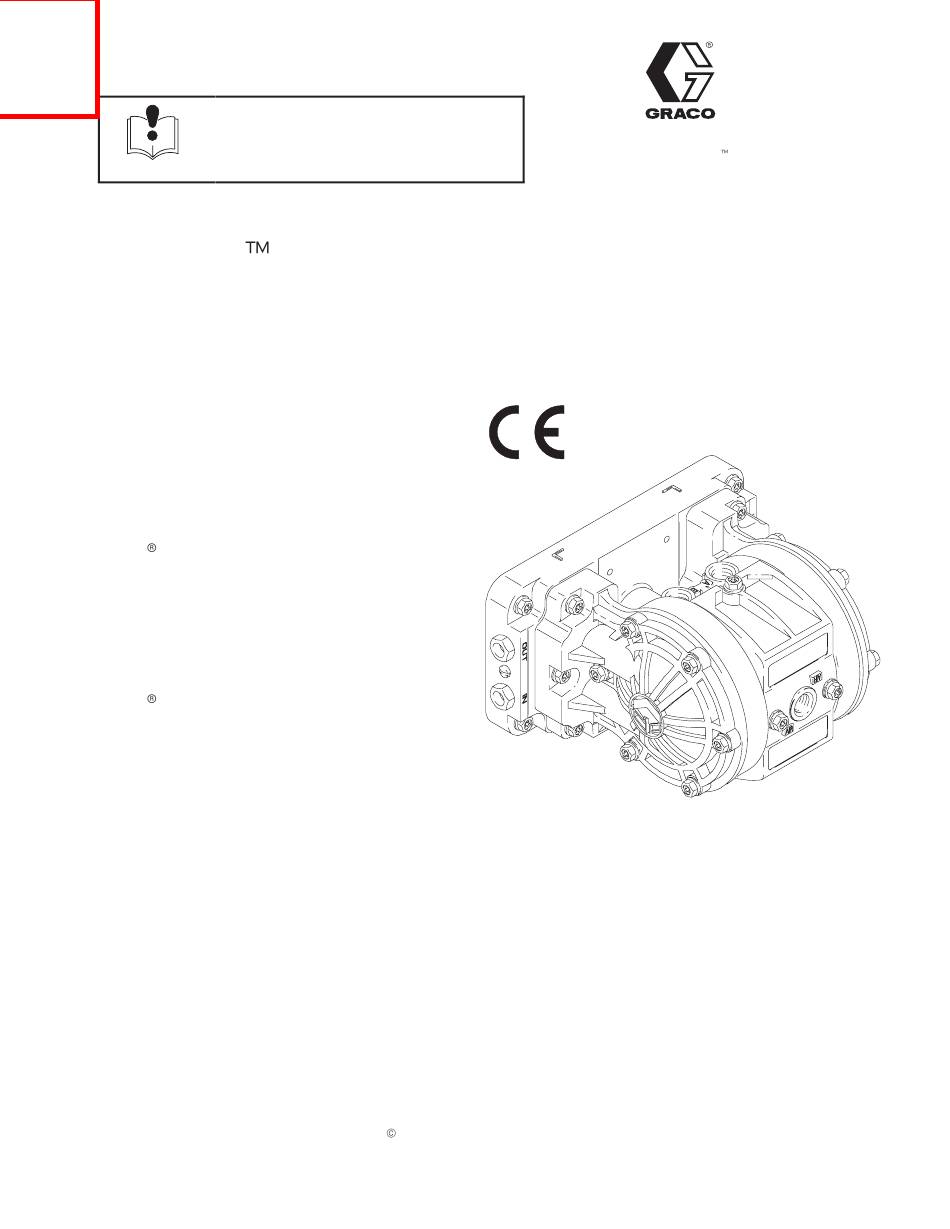

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
Husky
Diaphragm Pumps
100 psi (0.7 MPa, 7 bar) Maximum Incoming Air Pressure
100 psi (0.7 MPa, 7 bar) Maximum Fluid Working Pressure
Model D120 XX , Series B
Polypropylene Pump with Air-Operated Motor
Model D110 XX , Series B
Acetal Pump with Air-Operated Motor
Model D150 XX , Series B
Kynar Pump with Air-Operated Motor
Model D220 XX , Series B
Polypropylene Pump with Solenoid Ports
Model D210 XX , Series B
Acetal Pump with Solenoid Ports
Model D250 XX , Series B
Kynar Pump with Solenoid Ports
Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
205 Air-Operated
10
12
15
15
16
17
18
. . . . . . . . . . .
19
20
. . . . . . . . . . . . . . . . . . . . . .
22
COPYRIGHT 1998, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
First choice when
quality counts.
8
9
308652
Rev. F
Patent No. 5,860,794
