Gas and Air Sensors
eSENSE Ind (Disp)
General

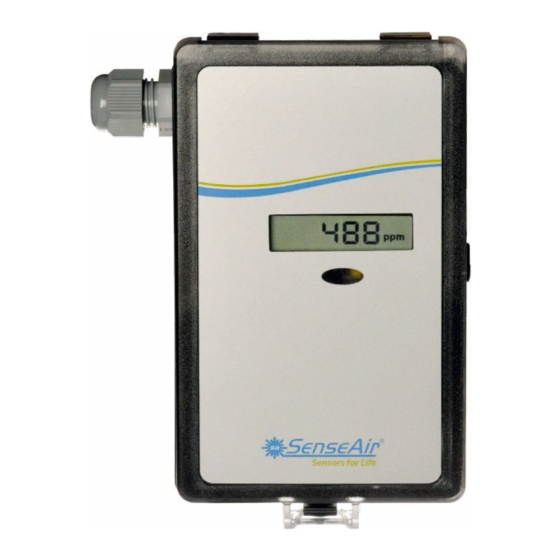

The IAQ-sensor product eSENSE Ind for wall mounting in industrial application are
designed to measure carbon dioxide (CO
value in ppm (parts-per-million) on the LCD.
The units are designed for connecting to Direct Digital Control (DDC) with 0-10V or
2-10V signal inputs. The two parallel signal outputs Out(1) (0-10V) and Out(2) (2-
10V) give linear signal voltages corresponding to the measuring range.
The 2-10V output also indicates the status by setting the output voltage to 1V or 2
mA when the sensor self-diagnostics detects any error.
1
3
5
6
Installation Manual
CO
transmitter
2
eSENSE Ind
). Option -Disp displays the measured CO
2
2
4

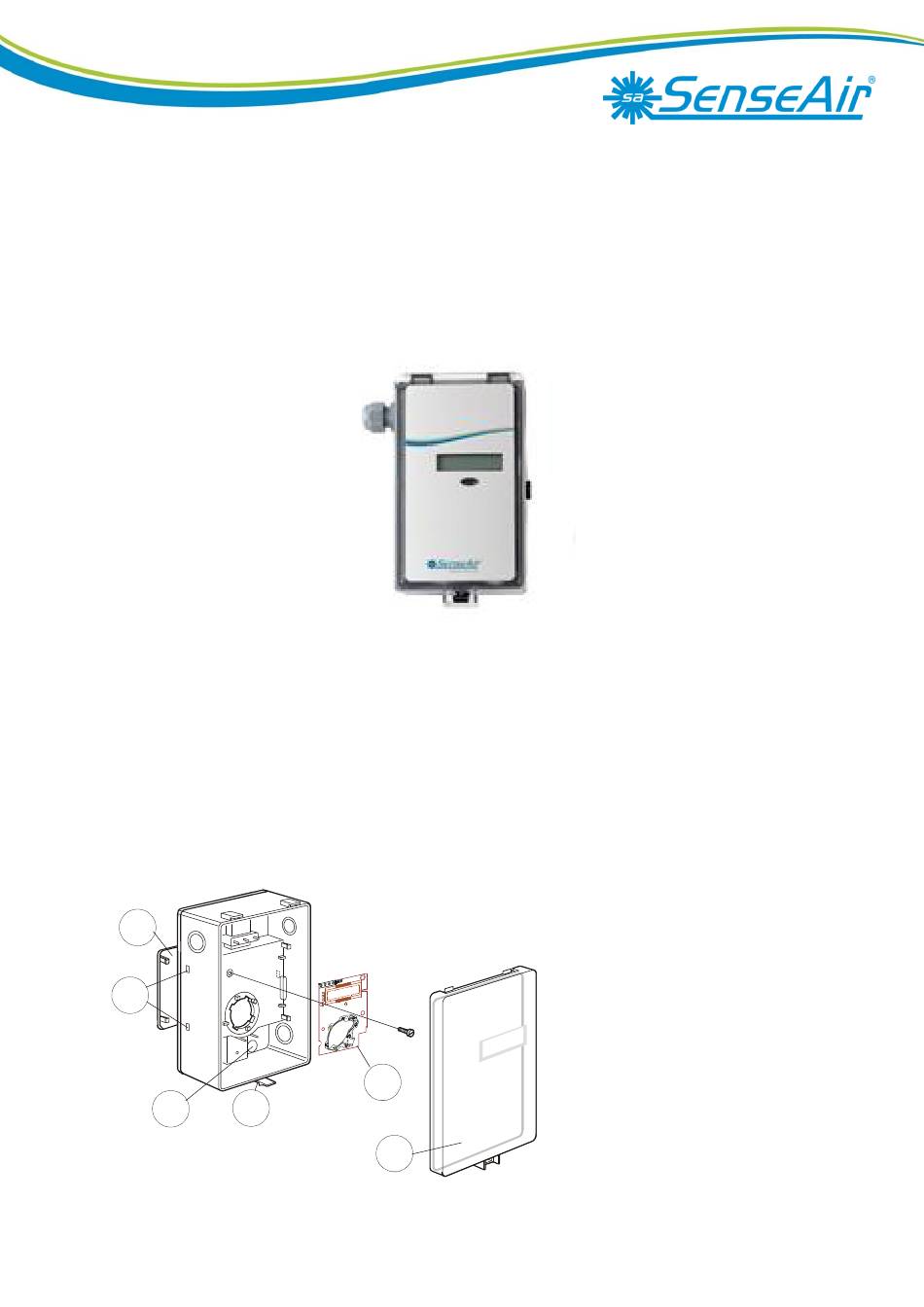

1 Wall plate
2 PCB (Factory supplied
mounted in box)
3 Hole for wall plate hooks
4 Snap-in lid
5 Locking screw of the lid
(not shown)
6 Air holes
Document
Rev
IMA0119
4
2
Page
1 (4)
Advertisement
Table of Contents
Related Manuals for SenseAir eSENSE Ind
Summary of Contents for SenseAir eSENSE Ind
- Page 1 Ind (Disp) transmitter eSENSE Ind General The IAQ-sensor product eSENSE Ind for wall mounting in industrial application are designed to measure carbon dioxide (CO ). Option -Disp displays the measured CO value in ppm (parts-per-million) on the LCD. The units are designed for connecting to Direct Digital Control (DDC) with 0-10V or 2-10V signal inputs.
- Page 2 85 (3,35) 7 Lidlocking screw 8 Wall plate 9 Screw to hold the wall plate 63(2,48) 10 Drill marking for cable entry bushings 42(1,65) Ø5(0,20) Dismounting the wall plate Ø5(0,20) The sensor is delivered with the wall plate mounted. The wall plate has to be removed before the sensor is mounted onto the wall.
- Page 3 Electrical connections The power supply has to be connected to is considered as system ground. The same ground reference has to be used for the eSENSE unit and for the DDC/signal receiver. PLEASE NOTE! The same ground reference has to be used for the eSENSE unit and for the control system! Terminal...
- Page 4 1V or 2 mA. Maintenance The eSENSE is basically maintenance free in normal environments thanks to the built-in self-correcting ABC algorithm. Discuss your application with SenseAir in order to get advice for a proper calibration strategy. PLEASE NOTE!
