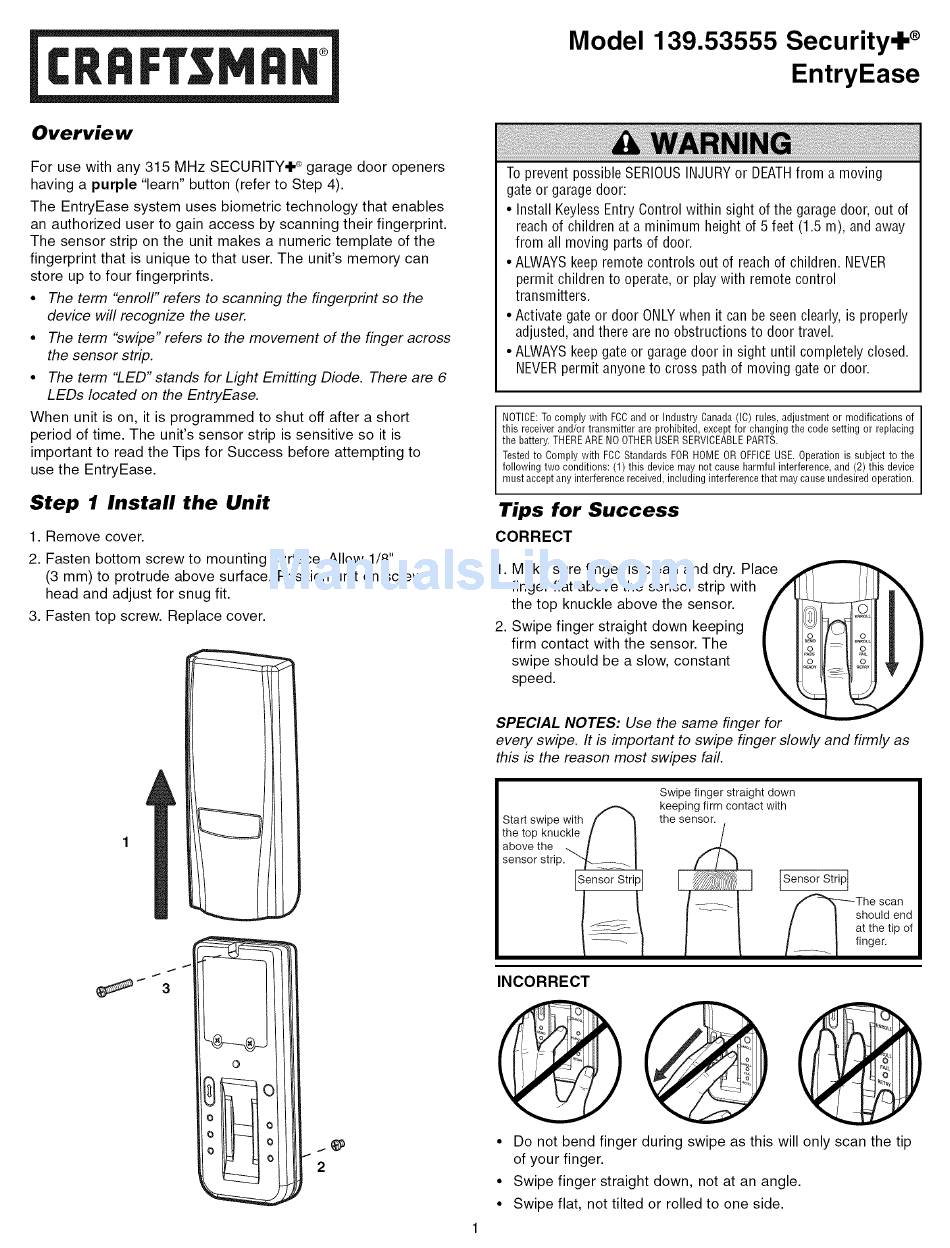

Craftsman 95355 - EntryEase Fingerprint Keyless Entry Pad User Manual

Model 139.53555 Security+ ®
EntryEase
Overview
For use with any 315 MHz SECURITY÷ ® garage door openers
having a purple "learn" button (refer to Step 4).
The EntryEase system uses biometric technology that enables
an authorized user to gain access by scanning their fingerprint.
The sensor strip on the unit makes a numeric template of the
fingerprint that is unique to that user. The unit's memory can
store up to four fingerprints.
• The term "enroll" refers to scanning the fingerprint so the
device will recognize the user.
° The term "swipe" refers to the movement of the finger across
the sensor strip.
• The term "LED" stands for Light Emitting Diode. There are 6
LEDs located on the EntryEase.
When unit is on, it is programmed to shut off after a short
period of time. The unit's sensor strip is sensitive so it is
important to read the Tips for Success before attempting to
use the EntryEase.

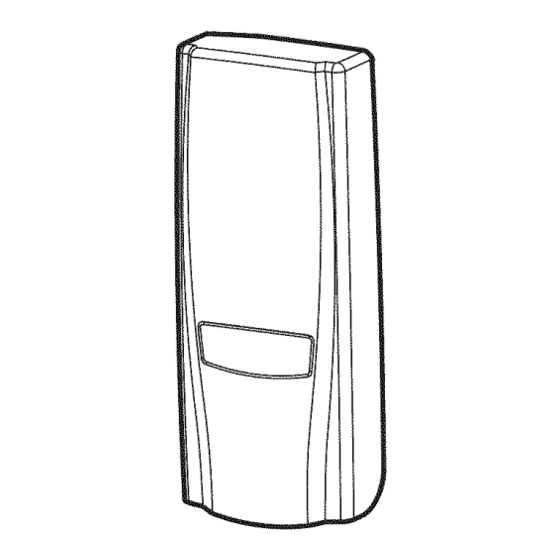

Step 1 Install the Unit
1. Remove cover.
2. Fasten bottom screw to mounting surface. Allow 1/8"
(3 mm) to protrude above surface. Position unit on screw
head and adjust for snug fit.
3. Fasten top screw. Replace cover.
o
2
To prevent possible SERIOUSINJURY or DEATHfrom a moving
gate or garage door:
• Install Keyless Entry Control within sight of the garage door, out of
reach of children at a minimum height of 5 feet (1.5 m), and away
from all moving parts of door.
• ALWAYSkeep remote controls out of reach of children. NEVER
permit children to operate, or play with remote control
transmitters.
• Activate gate or door ONLYwhen it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYSkeep gate or garage door in sight until completely closed.
NEVERpermit anyone to cross path of moving gate or door.
NOTICE: T o comply with FCCand or Industry Canada(IC) rules, adjustment or modifications of
this receiver and/or transmitter are prohibited, exceptfor changing the code setting or replacing
the battery. THERE ARE NO OTHERUSERSERVICEABLE PARTS.
Tested to Comply with FCCStandards FOR HOMEOR OFFICEUSE. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device
must acceptany interferencereceived,including interferencethat may cause undesired operation.
Tips for Success
CORRECT
1. Make sure finger is clean and dry. Place
finger flat above the sensor strip with f
the top knuckle above the sensor.
)
2. Swipe finger straight down keeping
firm contact with the sensor. The
swipe should be a slow, constant
speed.
SPECIAL NOTES: Use the same finger for
every swipe. It is important to swipe finger slowly and firmly as
this is the reason most swipes fail.
A
Start swipe with / _
the top knuckle / I
above the "_ _ I
sensor strip. _/_=;::_
ISensor StriPl
Swipe finger straight down
keeping firm contact with
the sensor.
ISensor StripI
_The scan
should end
at the tip of
finger.
INCORRECT
° Do not bend finger during swipe as this will only scan the tip
of your finger.
° Swipe finger straight down, not at an angle.
° Swipe flat, not tilted or rolled to one side.
