BODYWRAP WHIRLPOOL
SYSTEM ASSEMBLY AND
OPERATION GUIDE
Inspection Guidelines
A careful check of the whirlpool system
should be conducted upon receipt of the
unit. The basic whirlpool configuration is
shown in Figure 1. A system with an in-line
heater is shown in Figure 2.
If the unit has a factory-fitted:
! Alternate pump location,
refer to the Supplemental
information packaged with the accessory
items for additional item checks before
continuing. Notify your supplier immediately if
any questions or problems are encountered
during this process.
DO NOT INSTALL UNIT WITHOUT
FIRST ADDRESSING QUESTIONS
WHICH ARISE DURING THE
INSPECTION!
Basic Whirlpool System Check
" Check wire lead at on/off button and at
control box for secure attachment.
" Check system to ensure all trim is in
place and for finish ordered.
Whirlpool System with Mounted In-
Line Heater Check
" Check for factory installed in-line heater
option mounted on pump.
Basic Module Check
An individual check list is included in the
installation guidelines packaged with the
module. Refer to the listed publication for
further information before continuing.
Installation Guidelines
Framing and Installation Requirements
Framing and dimensional requirements for
the module are included in the installation
guidelines packaged with the basic unit.
Refer to the unit installation guidelines for
further information before continuing.
WARNING!
ADEQUATE ACCESS MUST BE
PROVIDED AT THE PUMP LOCATION.
The basic whirlpool system is produced
with the pump secured to the unit base and
with the complete system assembled at the
factory.

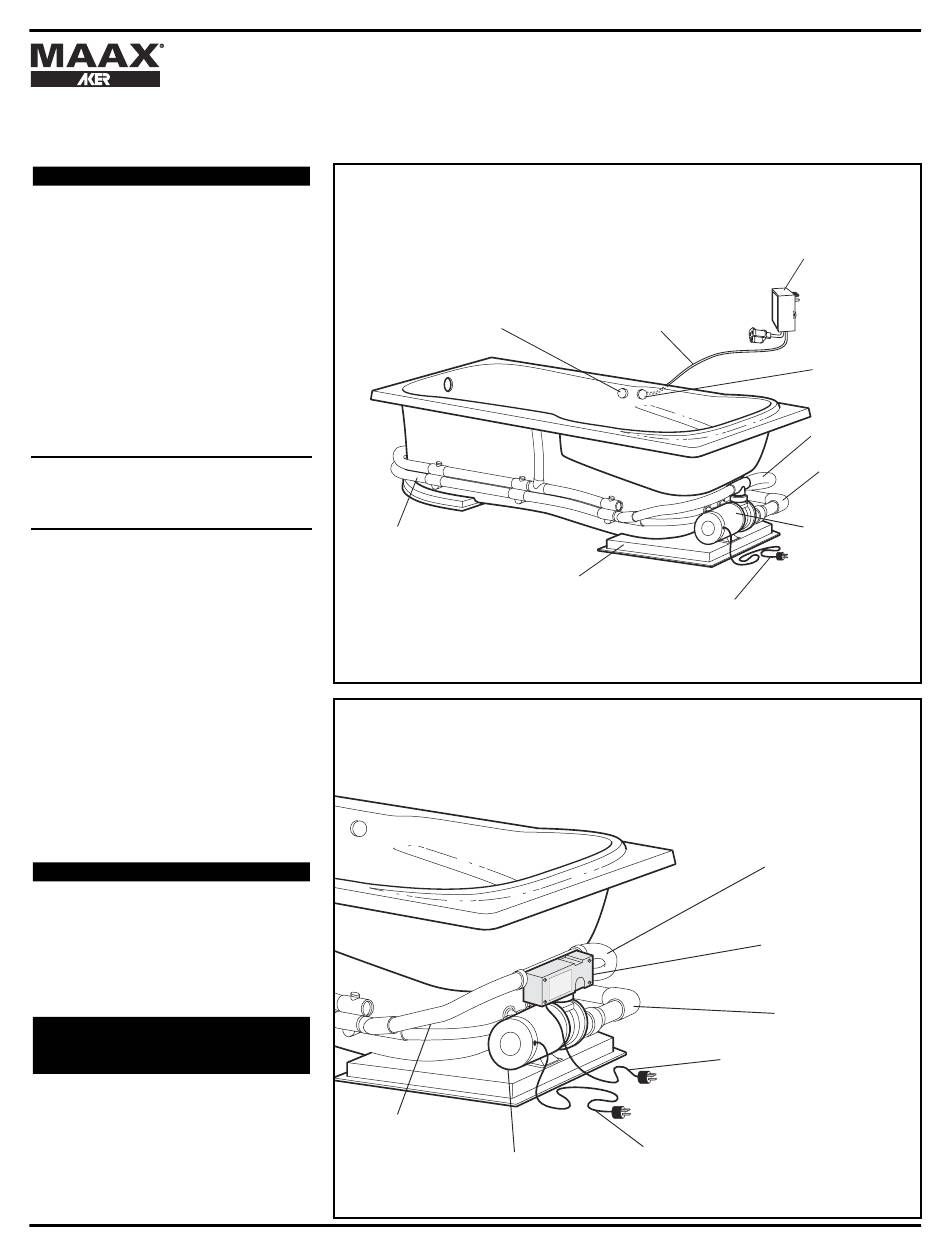

Figure 1 - Basic Whirlpool System
(Typical Tub Illustrated)
Assembly
Factory Installed
System Piping
Figure 2 - Whirlpool System With
In-Line Heater (Factory Installed Option)
Jet Supply
Line
(Factory Connected
At On/Off Button &
Air Control Knob
Control Box)
(2 per unit)
Factory Mounted
Unit Base
Factory Mounted
Single-Speed Pump
Plug-In Control Box
Wire
Jet Supply Line
Factory Mounted
Electrical Supply Cable
With Attachment
Plug End.
Jet Supply Line
Factory Mounted
In-Line Heater
Suction Line
Electrical Supply Cable With
Attachment Plug End.
(In-Line Heater)
Electrical Supply Cable With
Attachment Plug End.
(Pump/Motor)
0511
Page 2
On/Off Button
Suction Line
Single-Speed
Pump
