DESCRIPTION
Demonstration circuit SCP-LT8618-IEVALZ is a high effi-
ciency 65V, 100mA synchronous step-down regulator
configured as an inverting buck topology for positive to
negative DC voltage conversion.
Like all boards in the Signal Chain Power series, this board
is designed to be easily plugged into other SCP boards to
form a complete signal chain power system, enabling fast
evaluation of low power signal chains. To evaluate this
board, some universal SCP hardware is required, namely:
SCP-INPUT-EVALZ
SCP-OUTPUT-EVALZ
SCP-FILTER-EVALZ
SCP-THRUBRD-EVALZ
Table 1. Performance Summary
SYMBOL
PARAMETER
V
Max Input Voltage
IN(MAX)
V
Max Output Voltage
OUT(MAX)
I
Switch Current Limit
SW(LIM)
BOARD IMAGE
Arrow.com.
Downloaded from
DEMO MANUAL SCP-LT8618-IEVALZ
SCP-1X2BKOUT-EVALZ
SCP-1X5BKOUT-EVALZ
SCP-5X1-EVALZ
NOTES

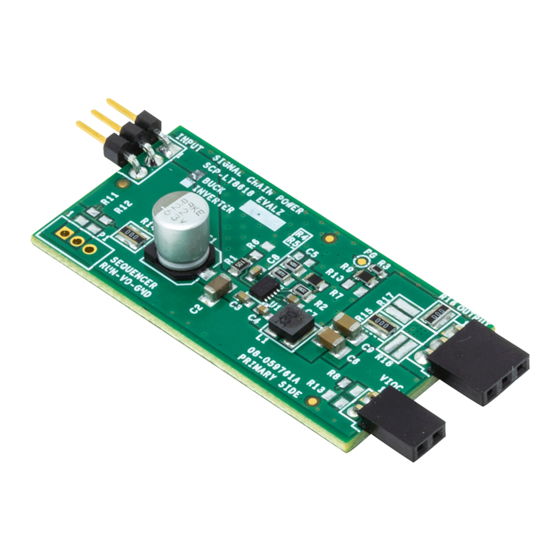

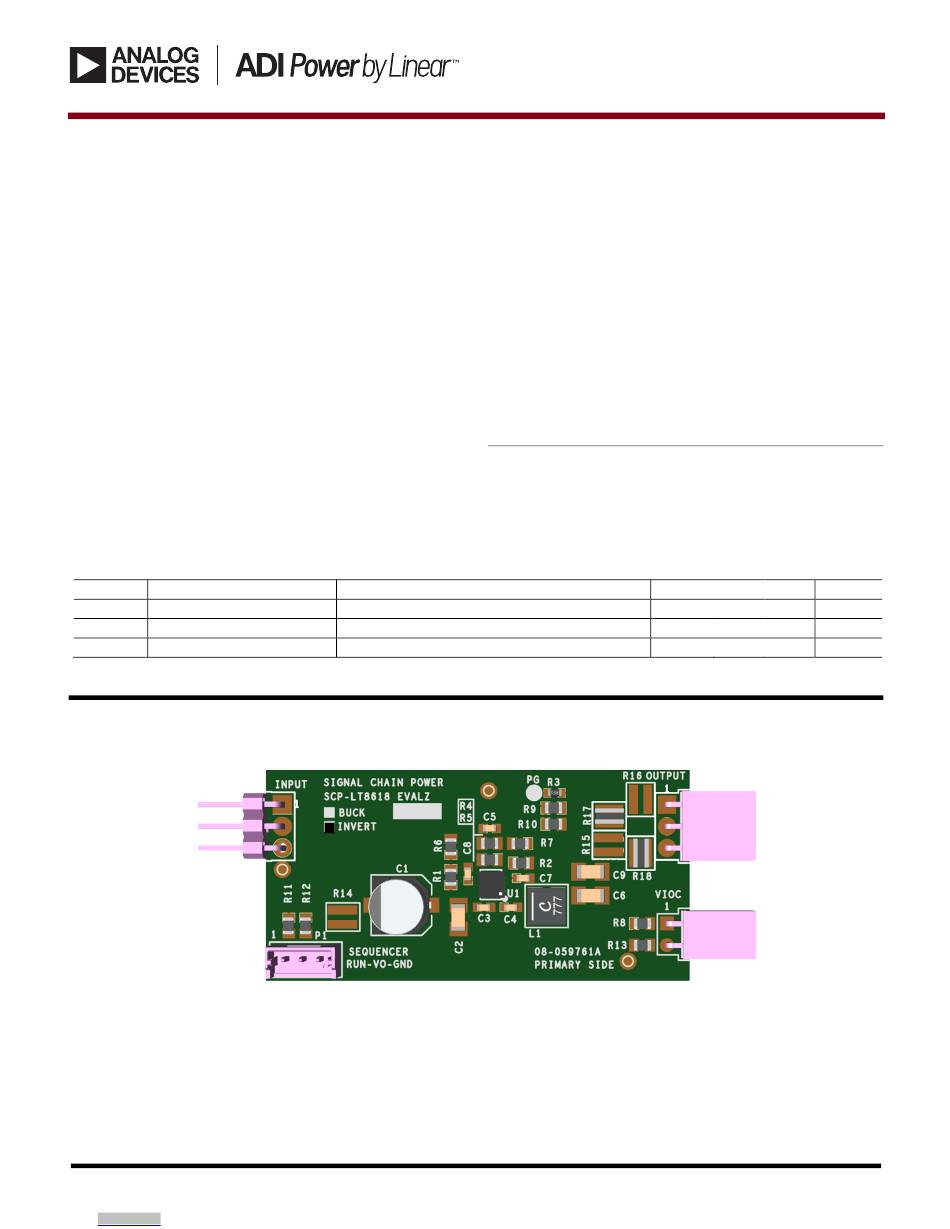

Figure 1. SCP-LT8618-IEVALZ Evaluation Board
DEMO MANUAL
SCP-LT8618-IEVALZ
Signal Chain Power Series
LT8618 Inverting Regulator
To properly evaluate SCP series demo boards, you will
need the SCP Configurator companion software. SCP
Configurator can help you choose the right board and to-
pology for your design.
Note that this Demo Manual does not cover details im-
portant to the operation and configuration regarding the
LT8618. Please refer to the
plete description of the part.
Design files for this circuit board are available.
All registered trademarks and trademarks are property of their respective owners.
LT8618 datasheet
for a com-
MIN
TYP
MAX
UNITS
60
–48
150
200
250
V
V
mA
Rev. 0
1
