Linear LTM4650 Demo Manual

Description
Demonstration circuit DC2378A-A features the
the high efficiency, high density, dual 25A, single 50A,
switch mode step-down power module regulator. The
input voltage is from 4.5V to 15V. The output voltage is
programmable from 0.6V to 1.8V. DC2378A-A can deliver
25A maximum current from each channel. As explained
in the data sheet, output current derating is necessary
for certain V , V , and thermal conditions. The board
IN OUT
operates in continuous conduction mode in heavy load
conditions. For high efficiency at low load currents, the
MODE jumper (JP1) selects pulse-skipping mode for noise
sensitive applications or Burst Mode
noise sensitive applications. Two outputs can be connected
in parallel for a single 50A output solution with optional
jumper resistors. The board allows the user to program
DEMO MANUAL DC2378A-A
High Efficiency, Single 50A or Dual 25A
Step-Down Power µModule Regulator
LTM 4650EY,
®
operation in less
®

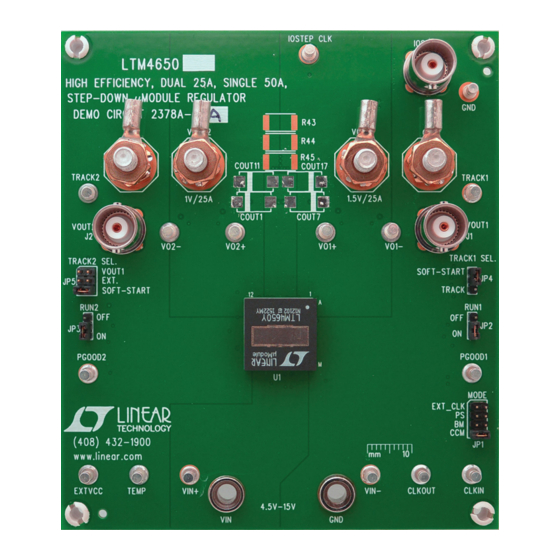

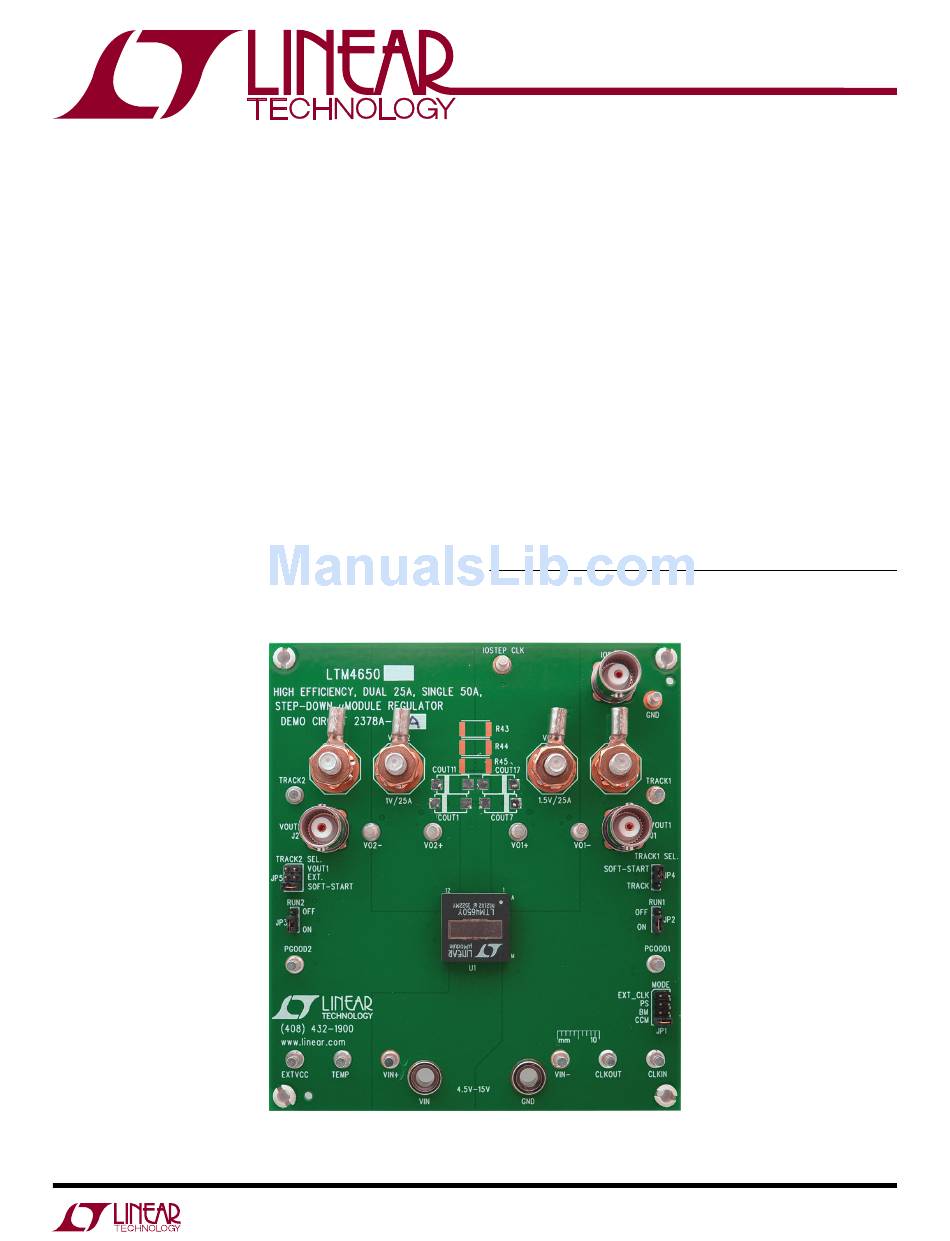

Figure 1. LTM4650/DC2378A-A Demo Board
how its output ramps up and down through the TRACK/
SS pin. The output can be set up to either coincidentally or
ratiometrically track with another supply's output. Remote
output voltage sensing is available for improved output
voltage regulation at the load point. These features and
the availability of the LTM4650EY in a compact 15mm ×
15mm × 5.01mm BGA package make it ideal for use in
many high density point-of-load regulation applications.
The LTM4650 data sheet must be read in conjunction with
this demo manual for working on or modifying the demo
circuit DC2378A-A.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2378A-A
L, LT, LTC, LTM, Linear Technology, the Linear logo and Burst Mode are registered trademarks
of Linear Technology Corporation. All other trademarks are the property of their respective
owners.
LTM4650
dc2378aaf
1
