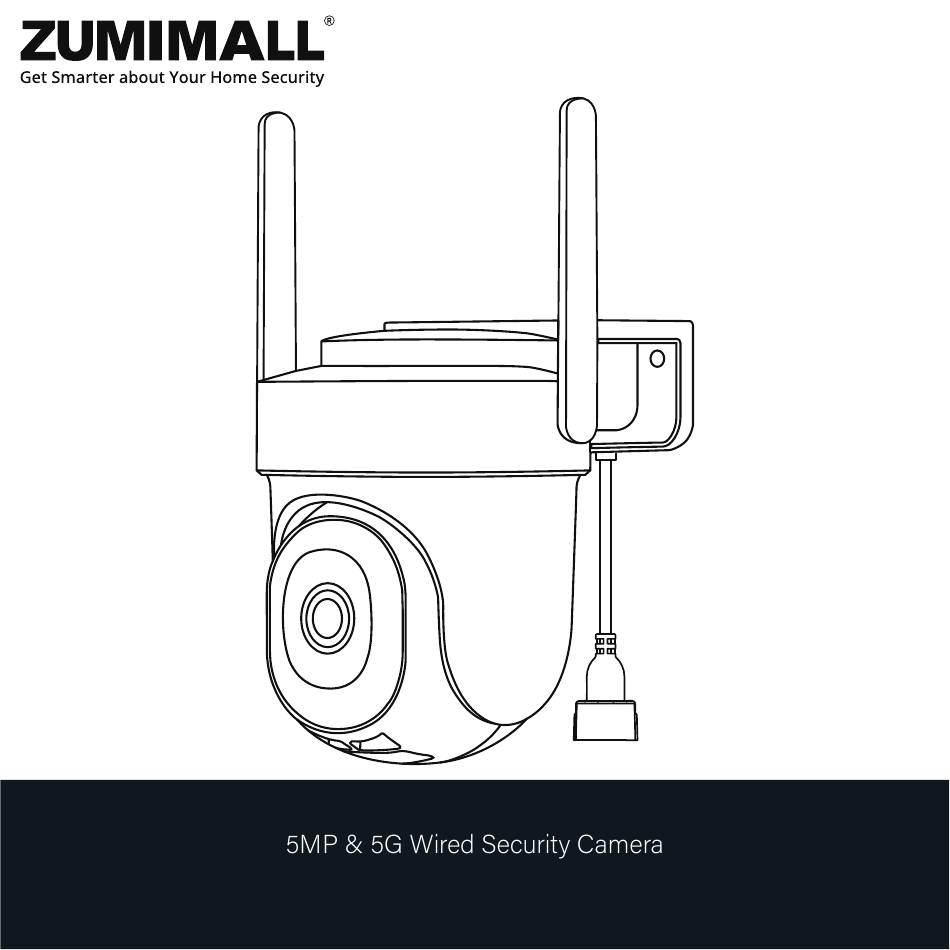

BF-BK05
QUICK START GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF-BK05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zumimall BF-BK05

Summary of Contents for Zumimall BF-BK05

  • Page 1 BF-BK05 QUICK START GUIDE...
  • Page 2 Brand Story Leading the Way in Affordable, Advanced Home Security. From our inception in 2008, Zumimall has been at the forefront of redefining home security. Our philosophy? Combine top-tier specifications with affordability. Our results? Over a million premium, yet affordable smart security products in homes and businesses worldwide.

  • Page 3: Warranty Service

    In addition, Your advice and suggestions are always appreciated. How to Activate the Free 1-year Warranty Extension? Send us the order number and SN number via email. Please email us within 30 days of receiving the camera. Email: Support@zumimall.com Product Service Email: Support@zumimall.com Distributor: Distributor@zumimall.com...

  • Page 4: Table Of Contents

    CATALOGS PAGE 1. Package List - BK05 -------------------------------------------------- P1 2. Product Diagram---------------------------------------------------- P2 3. Download and Install App -------------------------------------------- P3 4. Accounts Registration ----------------------------------------------- P4 5. How to Reset the Camera -------------------------------------------- P5 6. Add Camera to App------------------------------------------------- P6 6.1 Preparations for Connection ---------------------------------------- P6 6.2 Adding Methods ------------------------------------------------- P7 Method 1: Bluetooth Setup(Recommend) ------------------------------- P7 Method 2: QR App Code Setup---------------------------------------- P9...
  • Page 5 CATALOGS PAGE 10. Storage Instructions------------------------------------------------- P20 11. Multi-Camera Management ------------------------------------------ P21 12. Multi-User Sharing -------------------------------------------------- P21 13. How to Find the SN Number?------------------------------------------ P24 14. FAQ -------------------------------------------------------------- P25 14.1. Connection Issues------------------------------------------------ P25 14.2. Functionality Issues ---------------------------------------------- P26 14.3. Device Setup Issues ---------------------------------------------- P27...

  • Page 6: Package List - Bk05

    1. Package List - BK05 Camera * 1 Power Adapter * 1 Charging Cable * 1 Quick User Guide * 1 Screws Set * 1 NOTE: - Micro SD Card not included. - Micro SD references in the text are owned by SanDisk Corporation and are not intended for commercial use.

  • Page 7: Product Diagram

    2. Product Diagram Wi-Fi Antenna Micro SD Card Slot Microphone Reset Key Bracket Camera Lens Indicator Light Speaker Charging Cable White Light (USB-C Port) Power Port DC 5V±10% Power on/off Press power button for 3-5 seconds to turn on/off the camera Status Light Solid red light on: the camera is turning on or malfunctional Blinking red light: awaiting Wi-Fi connection (slowly blinking)

  • Page 8: Download And Install App

    3. Download and Install App Download ZUMIMALL App from Google Play™ or App Store™. Or scan the QR codes below with your smartphone. NOTE: Google Play™ is a trademark of Google Inc. App Store™ is a service mark of Apple Inc.

  • Page 9: Accounts Registration

    4. Accounts Registration New user needs to sign up ZUMIMALL App with an email address. Click "Sign up" to create a New Account and follow the steps to complete registration. Step 1 Step 2 Step 3 NOTE: ① Agree to Terms: Review and accept the User Agreement and Privacy Policy before proceeding.

  • Page 10: How To Reset The Camera

    5. How to Reset the Camera ① Go to the device homepage, select the camera that needs to be reset, and long press it to remove it from the app. ② Press the camera's reset button for 5-10 seconds until you hear the "Boogu" sound. ③...

  • Page 11: Add Camera To App

    6. Add Camera to App 6.1 Preparations for Connection ① Insert a Micro SD Card: Insert a Micro SD Card into the camera to save video clips, or you can start the 7-day free cloud service. Without a Micro SD Card or cloud service, no video will be saved.

  • Page 12: Adding Methods

    6.2 Adding Methods Method 1: Bluetooth Setup(Recommend) ① On the Homepage, tap "Add" or "+" in the upper right corner, tap "Add Device". ② If the Bluetooth of cellphone doesn't turn on, the app will show a pop-up, please allow it to turn on Bluetooth. ③...
  • Page 13 ④ To connect the camera, select either the 2.4GHz or 5GHz Wi-Fi and enter the password. The app will automatically display the Wi-Fi you may be using when Bluetooth is turned on. Usually, the name and password for both Wi-Fi networks are the same or similar.

  • Page 14: Method 2: Qr App Code Setup

    Method 2: QR App Code Setup Tap "Add Device" Select Camera Turn on the Camera Input Wi-Fi Password Prepare the Scanning Scan QR Code...
  • Page 15 Installation Complete at 100% Name the Camera View Installation Tips 03-26-2024 10:16:44 AM 23KB/s Perform Network Diagnosis Using the Camera...

  • Page 16: Method 3: Qr Device Code Setup

    Method 3: QR Device Code Setup ① Click "+", and then select "Scan Code" ,and then scan the QR code on your device. QR Code ② Select the device you want to add. Please select 2.4GHz/5GHz Wi-Fi, then click "Next".
  • Page 17 ③ Return to the "ZUMIMALL" application, select the Wi-Fi network and enter the password, then click "Next". ④ When connecting, you should make sure your router, mobile, and camera are as close as possible.

  • Page 18: Camera Installation

    7. Camera Installation 7.1 Installation Preparation ① Surface Selection: Choose a clean, smooth, and dry surface for mounting the bracket. Avoid uneven surfaces like wood veneer or plaster walls. ② Bracket Mounting: Use the provided positioning stickers and screws to securely attach the bracket to the wall.

  • Page 19: Mounting Position And Angle

    7.2 Mounting Position and Angle ① Location: Ensure the camera is unobstructed and within Wi-Fi coverage. ② Mounting: Select an appropriate position on the wall to mount the camera. Indoor Outdoor...
  • Page 20 ③ Angle for Motion Detection: - Aim the camera to cover the lower two-thirds of the field of view, which is the most sensitive to motion. - For close monitoring (e.g., front door), mount the camera 7-10 feet (2-3 meters) high.

  • Page 21: Best Practices For Motion Detection

    7.3 Best Practices for Motion Detection - Motion Path: Position the camera so that motion moves side-to-side across its view rather than directly toward or away from it. - Detection Range: Optimal motion detection occurs within 5 to 20 feet (1.5 to 6 meters) from the camera, though it can detect motion up to 33 feet (10 meters).

  • Page 22: Device Menu

    8. Device Menu 2024-07-22 12:53:01 AM 2024-07-22 12:53:01 AM 2024-07-22 12:53:01 AM 03-26-2024 12:56:08 AM Add Device and Scan Code Two-Way Talk More functions Record to Phone Live View Button Motion Detection On/Off Camera Name Settings Lens Switch Device Homepage Light Messages Siren...

  • Page 23: Pir Motion Detection

    9. PIR Motion Detection 9.1 Motion Detection Alarm Setting Sensitivity Adjustment: Motion detection sensitivity can be adjusted from Low to High. Please refer to the image below. 03-26-2024 12:56:08 AM Tap on "Settings" Select "Alarm Management" Select "Motion Detection" Set it up Sensitivity Detecting Distance 3-16ft（1-5meters）...

  • Page 24: Alarm Notification

    9.2 Alarm Notification ① Recording Type: This camera supports 7*24 hours recording, and also supports event recording. ② System Reactions: - Alarm Notifications: Receive sound alerts via the app. - Storage: Pictures and videos are automatically saved to the Micro SD Card or cloud storage.

  • Page 25: Storage Instructions

    10. Storage Instructions ① Manual Storage - Go to the live video feed and manually record by clicking the "Record" button to start or stop. - Recordings will be stored in your app's album. - Exiting the live view will automatically stop the recording. ②...

  • Page 26: Multi-Camera Management

    - However, a camera can be shared from account A to account B. Sharing Steps: ① B downloads the ZUMIMALL App on their phone and creates a new account.(the country selected during registration must be the same as your choice).
  • Page 27 In Settings, select General On the camera's settings You have two ways to share: QR code Click to Add and enter your account number Settings page, tap Share Scan the QR code of the The person being shared clicks on the Click on My QR Code Scan this QR code person sharing...
  • Page 28 Or enter the account number of the Customise the permissions of the View Account Waiting for Sharer's Consent person being shared person being shared View Shared Records Accepting sharing requests Device Sharing Sucess...

  • Page 29: How To Find The Sn Number

    If you have any other questions, please send us the SN number of your camera and describe the problem you have encountered. We will resolve it as soon as possible. Email: Support@zumimall.com 03-26-2024 12:56:08 AM Click Settings Click Device Information...

  • Page 30: Faq

    14. FAQ 14.1. Connection Issues Q1: Camera is Not Powering On A1: - Since this camera is powered by a power cord and does not have a built-in battery, make sure the camera is properly connected to the power outlet. - Troubleshoot with different power adapters and outlets.

  • Page 31: Functionality Issues

    Q4: Why Does the Camera Still Not Connect to Wi-Fi After Correctly Selecting the Wi-Fi Network and Entering the Password? A4: - Ensure your camera and phone are on the same network. - Verify that DHCP is enabled on your router. - Confirm that your Wi-Fi network is either 2.4GHz or 5GHz, and that the Wi-Fi authentication method is set to WPA2-PSK or a similar method.

  • Page 32: Device Setup Issues

    Q8: Why Am I Not Receiving Push Notifications on My Phone? A8: - Ensure "Receive Alert Notifications" is enabled in the app. - Check your phone settings to allow notifications from the app. - Ensure the app is running in the background (for Android users). Q9: Why Can't I Hear Any Sounds from My Camera? A9: - Ensure the sound icon is turned on for live audio.
  • Page 33 FCC ID: 2AVKP-BF-BK04...
