Summary of Contents for Zumimall F5K

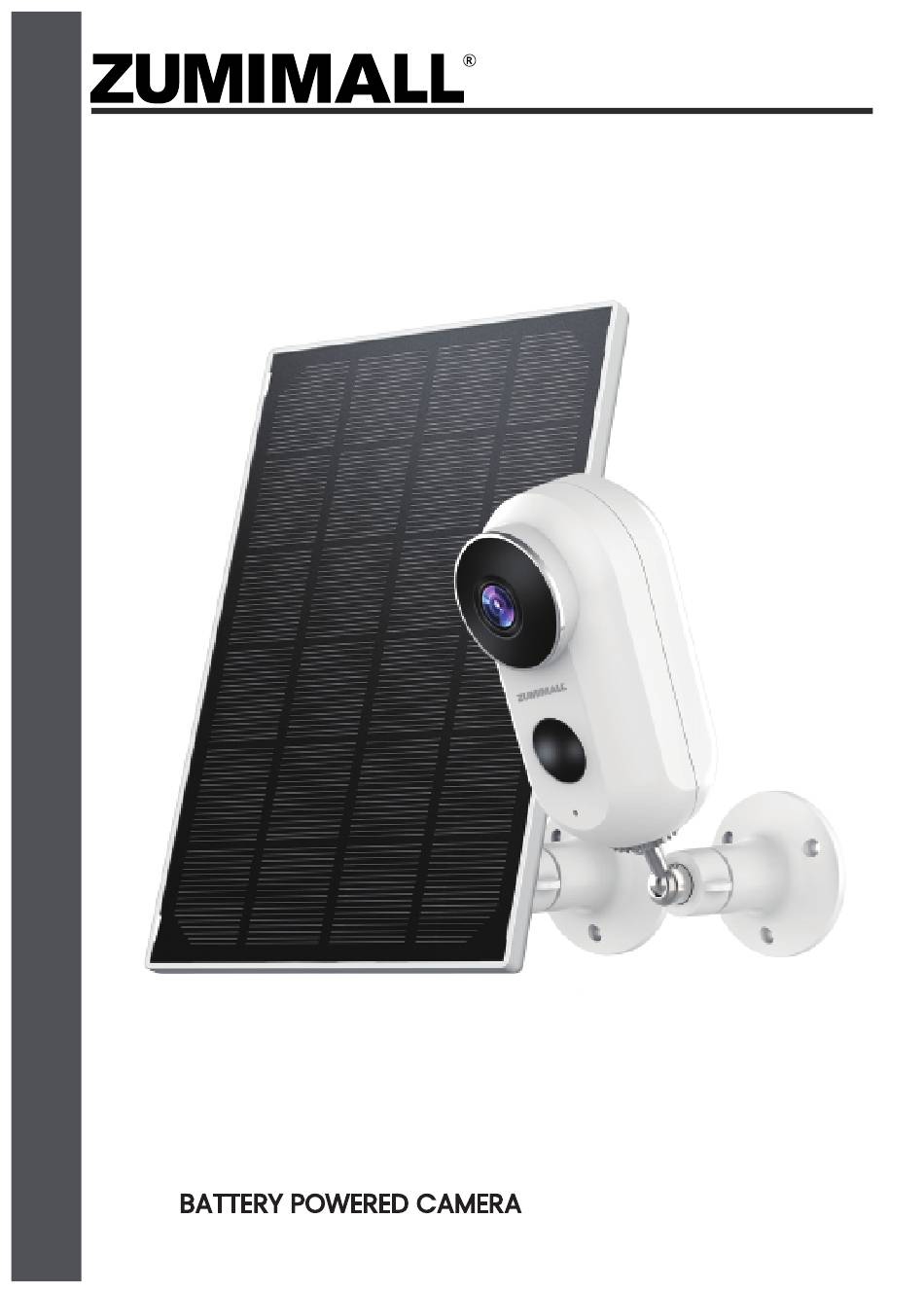

- Page 1 Get Smarter About Your Security QUICK START GUIDE BATTERY POWERED CAMERA FCC ID：2AXBN-Q3 WIRELESS I WIFI I OUTDOOR I SECURITY...
- Page 2 We will solve your problems within 24 hours. In addition, your advice or suggestions will be much appreciated and welcomed. Register via link below to get 3 Years Warranty Extension. http://bit.ly/zuReg Product Service Email: F5@zumimall.com Distributor: distributor@zumimall.com More About Us Web: www.zumimall.com Facebook: www.facebook.com/zumimalloffice Amazon Store: www.amazon.com/zumimall...
- Page 3 Over the years, Zumimall has served 45 continents of America, covering 80% of the population. Zumimall is the provider of a smart lifestyle and a guardian of the wonderful moments of...
-
Page 4: Table Of Contents
INDEX PAGE 1. What’s in the Box ---------------------------------- P1 2. Product Diagram --------------------------------- P2 3. Download and Install App -------------------------- P3 4. Account Registration ------------------------------ P4 5. Add Camera to App ------------------------------ P4 5.1 Preparations for Connection ---------------------- P4 5.2 Connect Camera to App ------------------------ P5 6. - Page 5 INDEX PAGE 13. Solar Panel -------------------------------------- P14 14. Battery Management ----------------------------- P16 15. Multi Device Management ------------------------- P16 15.1 Multi Camera Management ---------------------- P16 15.2 Multi-User Sharing ----------------------------- P17 16. Reset Camera----------------------------------- P19 17. ZUMIMALL FAQ ----------------------------------- P20...
-
Page 6: What's In The Box
1. What’s in the Box ZUMIMALL Battery Camera Solar Panel Outdoor Metal Mount Screws Set Quick User Guide USB Cable NOTE: Micro SD card and power adapter are not included. - Page 7 2. Product Diagram Camera Lens Charging Status Microphone PIR Sensor Reset Hole Speaker LED Indicator Power Button SD Card Slot IR Lamp USB Port Power Button Keep pressing for 5-10 seconds to power on/power off Reset Button Keep pressing for 5-10 seconds to reset Blink Slowly in Red Awaiting Wi-Fi connection, ready for adding devices Blink Fast in Red...
-
Page 8: Download And Install App
Android NOTE: Please turn on both of the following permissions. ① Allow ZUMIMALL App to access mobile cellular data and wireless LAN,otherwise it will fail to connect the camera. ② Allow ZUMIMALL App to receive pushed messages, otherwise, the phone willnot receive alarms when motion is detected. -
Page 9: Account Registration
4. Account Registration New user needs to sign up ZUMIMALL App with email address. Click 'Sign up' to create a New Account and follow the steps to complete registration. 5:51 5:51 5:51 < < Sign Up Sign Up Welcome United States Account 2365894254@qq.com... -
Page 10: Connect Camera To App
5.2 Connect Camera to App 5:48 5:48 5:49 < Select Device Home Add Battery Camera All Devices Living room Bedroom Battery Camera Battery Camera Smart Doorbell Power Plug Camera Baby Camera Hold the device power button to start Floodlight Add Device the device. - Page 11 5:50 5:50 < < Connect Network Scan QR Code 02:06 Make sure the device in an energized state Make sure the device is connected to the router Scan the QR code below with the device Make sure the device and the phone are at a distance of 5-8 inches.
-
Page 12: Camera Installation
6. Camera Installation Step 1: Fix the bracket to where you want to install the camera with the supplied screw. Step 2: Fasten the camera on the metal mount, and fix them. Step 3: Adjust the viewing angle of the camera. 7. -
Page 13: Monitoring Area
8. Monitoring Area It is not suggested to install the camera vertically towards the moving objects, otherwise, it may not detect the motion events or cause delay. It is suggested to make the angle between PIR Sensor and detected objects more than10 degrees. The Camera motion sensor is much more sensitive to side-to-side movement across its field of view than to movement directly toward or away from the camera. -
Page 14: Device Menu
9. Device Menu 5:51 5:51 5:51 < < 060238708 Home 060238708 All Devices Living room Bedroom 2020-9-14 15:30:10 2020-10-08 15:30:10 0 2 -1 6 - 2 0 2 2 0 1 : 5 6 :0 8 P M 064958492 Bit Rate:10.74KB/s WiFi:97% 14:00 15:00... -
Page 15: Pir Body Detection
10. PIR Body Detection 10.1 Body Detection Alarm Setting PIR 'Motion Detection' defaults to be 'High' level. But it is adjustable. Please refer to the pictures below. 5:51 5:51 5:50 < < < Settings 060238708 Motion Detection 2020-10-08 15:30:10 Motion Detection Receive Alert Notifications After enabling detection, the camera can detect motion Medium... -
Page 16: Record/Playback/Delete
10.3 Record/Playback/Delete 10.3.1 On 'MESSAGES' page, click 'Alarm Messages', you can view all the records listed. 10.3.2 Click the following buttons to playback or delete. 10.3.3 All screenshots or manually recorded videos on live/ history/cloud page will be saved in Pictures & Videos. Files here can be saved in your phone album or shared with others directly. -
Page 17: Power Saving Settings
12. Power Saving Settings 12.1 Alarm interval & shooting interval This is a function that avoids repeated alarms for the same event. You can choose an alarm interval of different lengths, if the interval is 5 minutes, then the camera is triggered at 08:00, you will receive an alarm message, and you will not receive a new alarm push in the next 5 minutes, even if motion detection continues to occur. -
Page 18: Alarm Plan
12.3 Alarm Plan You can set the weekly/daily alarm schedule as you need. If you set the camera's working hours from 8:00 p.m. to 8:00 a.m., please set 20:00-8:00 a.m. The camera will only be triggered and record alarm video during this time period. NOTE: Alarm schedule can be set for up to 4 time periods. -
Page 19: Solar Panel
13. Solar Panel The Northern The Ideal Angle= The Southern Hemisphere The Local Latitude ± 5° Hemisphere Step 1: Please find a place which has sunlight for most of a day and adjust the angle to make sure maximum exposure. The solar panel needs few hours of direct sunlight to convert solar energy into electricity. - Page 20 Step 2: Mount the bracket with the mounting template andtjust the screws provided in the package. Step 3: Slot the solar panel into the bracket and make sure it's secure. Step 4: Loosen the adjusting control on the bracket, adjust the solar panel's angle to make it receive direct sunlight, and then retighten the adjusting.
-
Page 21: Battery Management
14. Battery Management 1. The camera has a built-in high-capacity battery, which can be used for 2-3 months, assuming the camera wakes up 15 times per day and plays video for 10 minutes each day. NOTE: The battery durability depends on how frequently the camera is woken up. -
Page 22: Multi-User Sharing
One camera can’t be connected to multiple devices either. But camera can be shared from A to B. Step 1: B download ZUMIMALL App to his/her phone and create a new account in the App. Step 2: Click 'Add' in App on A’s phone. - Page 23 5:49 5:49 < < Enter account Device Share Scan QR Code Enter account Recent Contacts Please enter the other party’s account 2775755699@qq.com No contact Search Scan other people's Two ways to share QR code 5:49 5:50 < < Device Share My QR Code Name Name...
-
Page 24: Reset Camera
5:51 5:49 < Device Share Messages 2month 10:51:05 Device sharing request YCZ Requests to share his device: 065146821 to you Sharing History Device Share Tips Family Sharing YCZ Requests to share his device: 065146821 to you Reject Accept Homepage Messages Search The shared person Click to accept,... -
Page 25: Zumimall Faq
WiFi environment when connecting, and add the camera near the router. 2. Connect to a new network ① Remove camera from ZUMIMALL APP. ② Long press the reset button to restore factory settings. ③ Reconnect. 3. Reset the camera ①... - Page 26 ① Open the phone settings, click the notification, find the "ZUMIMALL" APP, and open the permission notification. ② Open the "ZUMIMALL" APP, in the "Settings" interface, enable the alarm push. ③ In the "My" interface, enter the settings and turn on the push sound.
- Page 27 WiFi strength. ④ Delete the camera from the ZUMIMALL account, reset the device and add it again. ⑤ Check if the device version and ZUMIMALL APP are the latest version. 12. Short battery life ① Reduce the sensitivity of camera motion detection and reduce the number of camera triggers.
- Page 28 14. Unable to register an account ① Ensure that ZUMIMALL APP has access to mobile cellular data and wireless LAN. ② Enter an unregistered account and make sure the format of the registered account is correct. 15. Unable to share device ①...
- Page 29 If you have other questions, please send us the SN number of your camera and describe the problem you have encountered, we will solve it as soon as possible. Email: F5@zumimall.com How to find SN number? 5:51 5:51 5:51 <...
