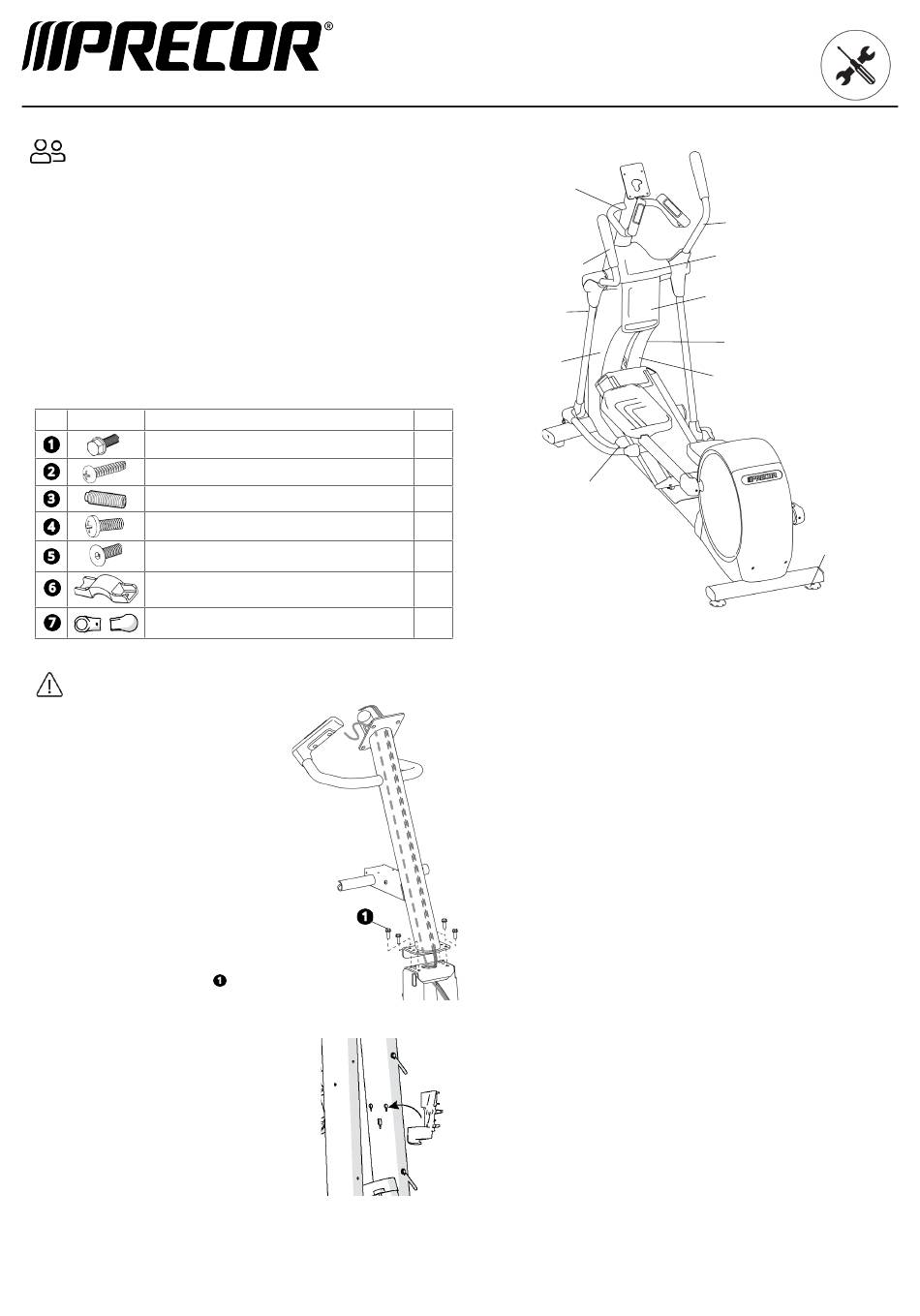

Elliptical Fitness Crosstrainer™ EFX) 500 Line
Assembly Requirements
Precor recommends at least two (2) people for this installation. DO NOT
attempt assembly by yourself.
Follow the steps in the order listed in this assembly guide and do the following:
• Read all documents before you begin:
• Assemble the equipment close to where you plan to use it.
• Assemble the equipment on a solid, flat surface so that it remains level and
stable.
• Locate the equipment a minimum 24 in. (0.6 m) away from walls or furniture
on either side of the equipment, and 24 in. (0.6 m) away from objects behind
the equipment.
• DO NOT move the equipment without assistance.
Required Tools
Standard hex wrench set with bits and sockets
Open-end wrench set
Stubby #2 screwdriver (max length 4.5-in.)
#2 Phillips screwdriver
Fish tape
Torque wrench 75 ft-lb (100 N-m)
Hardware Kit
Hex-head bolt (HHB) with washer 5/16-18 x 1-inch
Phillips self-tapping screw 1/4 x 3/4-inch
Set screw 3/8-16
Phillips head screw #8 x 1/2-inch
Flat-head socket cap screw (FHCS) 1/4-20 x 3/4-inch
(for console mount only)
Side panel anchor
Inner and outer link covers
Assembly Instructions
WARNING
Do NOT connect electrical power until all assembly procedures are complete
and the console is properly installed.
1. Route cables and mount console support
1. Locate the data cable that is bundled and
attached to the elliptical.
For P84 touchscreen consoles only: remove
the necessary cables from the console
installation kit. Group together with proper
connection ends for console (refer to
installation kit guide and console install guide)
and secure together at both ends so they can
easily be routed. Fish tape is recommended.
2. Feed cable(s) upward through the console
support and out the top opening (Figure
2). Tape to the top to temporarily secure
them. IMPORTANT DO NOT stretch, crimp,
or damage the cables. Cables damaged by
improper installation are not covered by the
Precor Limited Warranty.
3. Position the console support on top of the
base support and secure with 4
HHB with washers. Tighten to 15 ft-lb (20
N-m) of torque.
4. Secure the cable(s) to the right side of the lower
frame using the cable clips. DO NOT ALLOW
CABLES TO TOUCH ANY MOVING PARTS.
For P84 touchscreen consoles only: the power
cable for the console is connected to a power brick.
In the installation kit for the console is a power
supply bracket. This gives you the option to hide
the power brick behind the EFX front covers or
to allow the power brick to rest on the ground in
front of the lower cover.
Internal option:
a. Hook the Power Supply Bracket (Figure 3) onto
the right upright support.
©2024 Precor Incorporated
| Assembly Guide
Description
5/16-in
Figure 2.
Figure 3.
Console
support
Left moving arm
Front cover
Left side
cover
Qty
4
18
Bottom cover
4
4
4
2
Set
of 2
b. Coil all cables and hold the power supply on the holder with one hand.
With the other hand, thread an included large zip tie around the upright
support. NOTE Ensure you thread the zip tie through the designated slots in
the power supply bracket.
c. Reduce any slack by pulling the cables tighter from the top, then tighten
the zip tie.
d. Secure the cables inside each of the three cable clips attached to the right
upright support. Leave cable connectors loose until after the lower panel is
installed (see Install lower panel and front cover).
External option:
a. Coil up all cables and hold them in place with one hand, and with the
other hand, thread a large zip tie around the upright support. NOTE Make
sure you thread the zip tie through the designated slots in the power supply
bracket .
b. Pull the zip tie tight, making sure you have enough slack in the power and
extension cables.
c. Secure the cables inside each of the three cable clips attached to the right
upright support. Leave cable connectors loose until after the lower panel is
installed (see Install front cover section ).
2. Install console
EFX500 uses either a P31 LED console or a P84 touchscreen console.
To attach the console, refer to the installation guide shipped with your console
(and console installation kit for P84 touchscreen consoles).
EFX500 Elliptical | Assembly Guide | P/N 307117-101| 2024 11 22 | Page 1 of 2
Right moving arm
Top cover
Storage cover
Right side
cover
Yoke cover
Adjustable foot
Figure 1. EFX 500 Line
