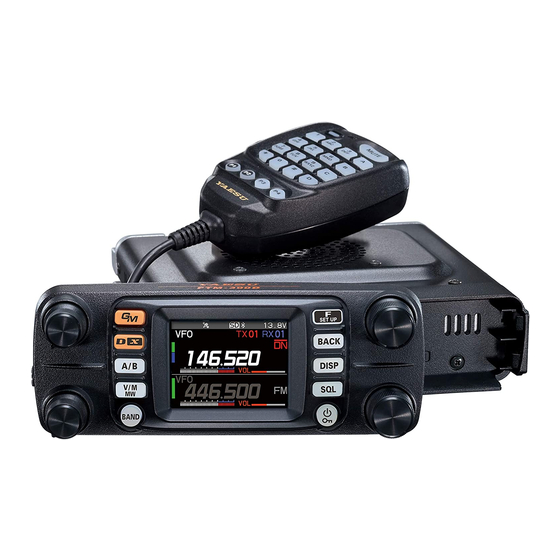

C4FM/FM 144/430MHz
DUAL BAND DIGITAL TRANSCEIVER
FTM-300DR/DE
Introduction
This manual provides the technical information necessary for ser-
vicing the FTM-300DR 144/430 MHz Dual Band Digital Trans-
ceiver.
Servicing this equipment requires expertise in handing surface-
mount chip components. Attempts by non-qualified persons
to service this equipment may result in permanent damage not
covered by the warranty, and may be illegal in some countries.
While we believe the information in this manual to be correct,
YAESU assumes no liability for damage that may occur as a
result of typographical or other errors that may be present. Your
cooperation in pointing out any inconsistencies in the technical
information would be appreciated.
Caution
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Important Note
This transceiver was assembled using Pb (lead) free sol-
der, based on the RoHS specification.
Only lead-free solder (Alloy Composition: Sn-3.0Ag-0.5Cu)
should be used for repairs performed on this apparatus.
The solder stated above utilizes the alloy composition re-
quired for compliance with the lead-free specification, and
any solder with the above alloy composition may be used.
TECHNICAL SUPPLEMENT
Specifications
Exploded View
Block Diagram
Alignment
Board Unit (Schematics, Layouts & Parts)
MAIN Unit
PANEL Unit
DSP Unit
©2020 YAESU MUSEN CO., LTD.
Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTM-300DR and is the answer not in the manual?

Questions and answers

Summary of Contents for Yaesu FTM-300DR

  • Page 1 MAIN Unit While we believe the information in this manual to be correct, PANEL Unit YAESU assumes no liability for damage that may occur as a DSP Unit result of typographical or other errors that may be present. Your cooperation in pointing out any inconsistencies in the technical information would be appreciated.
  • Page 2: Specifications

    NFM, AM 12 kHz/30 kHz (−6 dB/−60 dB) AF Output: 3 W @ 8 Ohms for 10% THD (13.8 V) Internal Speaker 3 W @ 8 Ohms for 10% THD (13.8 V) External Speaker AF Output Impedance: 4 to 16 Ohms SPECIFICATIONS-1 FTM-300DR/DE Technical Supplement...
  • Page 3 YAESU P/N Description Qty. U9900278 PAN HEAD TAPTITE-B M2X5 #3 3KA ① U24108007 BIND HEAD TAPTITE-B M2X8B(3) ② U24112007 BIND HEAD TAPTITE-B M2X12B(3KA) ③ Non-designated parts are available only as part of a designated assembly. EXPLODED VIEW-1 FTM-300DR/FTM-300DE Technical Supplement...
  • Page 4 T9207483 WIRE ASSY H039N 170MM2P2FDC (CE ON) CS2653703 USA: A2 RA6321200 CS2653704 EXP: B3 Thermal Conductive Pad CS2653705 MAIN ASSY  Please Contact YAESU when replacing MAIN-ASSY. RA6321100 ⑨ Thermal Conductive Pad ⑨ RA6321200Thermal ⑨ Conductive Pad RA6061700 RA043870BRUBBER ⑨...
  • Page 5 OVAL HEAD SCREW M2.6X6B ⑪ U20205007 BINDING HEAD SCREW M2.6X5B ⑫ U10303007 ⑬ TRUSS HEAD SCREW M3X3B RA0924400 U04510007 PAN HEAD(SEMS) SCREW HSM5X10B ⑭ SPONGE RUBBER(BT) Non-designated parts are available only as part of a designated assembly. EXPLODED VIEW-3 FTM-300DR/FTM-300DE Technical Supplement...
  • Page 6 Block Diagram BLOCK DIAGRAM-1 FTM-300DR/DE Technical Supplement...
  • Page 7: Introduction And Precautions

    Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, YAESU must reserve the right to change circuits and alignment proce- dures in the interest of improved performance, without notifying owners.
  • Page 8: Alignment Preparation & Precautions

    Set up the test equipment as shown below for transceiver alignment. Maintain the supply voltage at 13.8V DC for all steps. 50-ohm Inline Sampling AF Generator Dummy Load Wattmeter Coupler Freq. Counter AC Voltmeter Deviation Meter Regulated AC Voltmeter 13.8V PSU MIC Jack ALIGNMENT-2 FTM-300DR/DE Technical Supplement...
  • Page 9 7. Press the [ P2 ] key of the Microphone to set the alignment menu Item to "ADJUST 01 -TUNE- -B-". 8. Adjust the DIAL knob (Band B) for minimum deflection on the ADJUST 01 -TUNE- SINAD meter (maximum receiving sensitivity). ALIGNMENT-3 FTM-300DR/DE Technical Supplement...
  • Page 10 11. Press the [ P4 ] key to save the new setting. ADJUST 06 - SMETER - 12. Increase the output level of the signal generator up to +23.0 dBμV. 13. Press the [ P3 ] key to save the new setting. HI P3KEY/LO P4KEY ALIGNMENT-4 FTM-300DR/DE Technical Supplement...
  • Page 11: Tx Power Adjustment

    17. Press the DIAL knob to select "HI", then press the [DISP] key. 18. Press the PTT switch to activate the transmitter, adjust the DIAL knob (Band B) so that RF Power Meter reading is 50 W (± 1.5 W). ALIGNMENT-5 FTM-300DR/DE Technical Supplement...
  • Page 12 34. Press the DIAL knob to select "HI", then press the [DISP] key. 35. Press the PTT switch to activate the transmitter, adjust the DIAL knob (Band B) so that RF Power Meter reading is 50 W (± 1.5 W). ALIGNMENT-6 FTM-300DR/DE Technical Supplement...
  • Page 13 11. Press the [ D ( X )] key to select "DN". M-ADJ 12. Press the PTT switch to activate the transmitter, adjust the DIAL knob (Band B) so that the Deviation Meter reading is 4.4 kHz (±0.1 440.000 kHz). ADJUST 03 -DEVIATION- ALIGNMENT-7 FTM-300DR/DE Technical Supplement...
  • Page 14 6. Set the transceiver frequency to 440.000 MHz. M-ADJ 7. Press the PTT switch to activate the transmitter, adjust the DIAL knob (Band B) so that the Deviation Meter reading is 0.65 kHz 440.000 (±0.1 kHz). ADJUST 05 -CTCSS DEV- ALIGNMENT-8 FTM-300DR/DE Technical Supplement...
  • Page 15 3. Press the [ P3 ] key to save the reference setting. ADJUST 08 -BATTERY- 13.8V P3KEY NOTE: Do not change the “ADJUST 09 - DSP -” alignment menu item. When the adjustment is complete, press and hold the power switch to turn the transceiver OFF. ALIGNMENT-9 FTM-300DR/DE Technical Supplement...
  • Page 16 MAIN Unit Circuit Diagram MAIN-1 FTM-300DR/DE Technical Supplement...
  • Page 17 MAIN Unit Parts Layout (Side A) MAIN-2 FTM-300DR/DE Technical Supplement...
  • Page 18 MAIN Unit Parts Layout (Side B) MAIN-3 FTM-300DR/DE Technical Supplement...
  • Page 19 GRM155B11H102KA01D K22178809 C 1093 CHIP CAP. 0.001uF GRM155B11H102KA01D K22178809 C 1094 CHIP CAP. GRM1552C1H4R0BA01D K22178291 C 1100 CHIP CAP. 22pF GRM1552C1H220JA01D K22178220 C 1101 CHIP CAP. 0.001uF GRM1882C1H102JA01D K22174275 C 1102 CHIP CAP. 12pF GRM1552C1H120GA01D K22179723 MAIN-4 FTM-300DR/DE Technical Supplement...
  • Page 20 27pF GRM1552C1H270GA01D K22179726 C 1181 CHIP CAP. GRM1552C1H5R0BA01D K22178292 C 1182 CHIP CAP. 0.001uF GRM155B11H102KA01D K22178809 C 1183 CHIP CAP. 0.5pF GRM1554C1HR50BA01D K22178285 C 1184 CHIP CAP. GRM1554C1H2R0BA01D K22178289 C 1191 CHIP CAP. 0.001uF GRM155B11H102KA01D K22178809 MAIN-5 FTM-300DR/DE Technical Supplement...
  • Page 21 K22178809 C 1274 CHIP CAP. 0.001uF GRM155B11H102KA01D K22178809 C 1275 CHIP CAP. 330pF GRM155B11H331KA01D K22178803 C 1276 CHIP CAP. 250V GQM1875C2E3R0CB12D K22244210 C 1277 CHIP CAP. 0.5pF 250V GQM1875C2ER50CB12D K22244202 C 1278 CHIP CAP. GRM1552C1H8R0BA01D K22178295 MAIN-6 FTM-300DR/DE Technical Supplement...
  • Page 22 GRM155B11H102KA01D K22178809 C 1366 CHIP CAP. 22pF GRM1882C1H220JA01D K22174219 C 1367 CHIP CAP. 47pF GRM1882C1H470JA01D K22174227 C 1368 CHIP CAP. GRM1882C1H8R0DA01D K22174209 C 1369 CHIP CAP. 27pF GRM1882C1H270JA01D K22174221 C 1370 CHIP CAP. 330pF GRM1882C1H331JA01D K22174253 MAIN-7 FTM-300DR/DE Technical Supplement...
  • Page 23 K22104805 C 1464 CHIP CAP. 0.01uF GRM155B11E103KA01D K22148834 C 1465 CHIP CAP. 0.01uF GRM155B11E103KA01D K22148834 C 1466 CHIP CAP. 47pF GRM1552C1H470JA01D K22178228 C 1468 CHIP CAP. 0.001uF GRM155B11H102KA01D K22178809 C 1469 CHIP CAP. 0.001uF GRM155B11H102KA01D K22178809 MAIN-8 FTM-300DR/DE Technical Supplement...
  • Page 24 0.1uF GRM155B11A104KA01D K22108802 C 1571 CHIP CAP. GRM1554C1H2R0BA01D K22178289 C 1572 CHIP CAP. 0.1uF GRM155B11A104KA01D K22108802 C 1573 CHIP CAP. 22pF GRM1552C1H220JA01D K22178220 C 1574 CHIP CAP. 0.22uF GRM155B31A224KE18D K22108808 C 1575 CHIP CAP. GRM155B31A105KE15D K22108809 MAIN-9 FTM-300DR/DE Technical Supplement...
  • Page 25 K22148838 C 1708 CHIP CAP. 0.001uF GRM155B11H102KA01D K22178809 C 1709 CHIP CAP. 0.22uF GRM155B31A224KE18D K22108808 C 1710 CHIP CAP. 0.1uF GRM155B31E104KA87D K22148838 C 1711 CHIP TA.CAP. 10uF TMCMA1A106MTRF K78100028 C 1712 CHIP CAP. 0.22uF GRM155B31A224KE18D K22108808 MAIN-10 FTM-300DR/DE Technical Supplement...
  • Page 26 C 1807 CHIP CAP. 0.047uF GRM155B11A473KA01D K22108801 C 1835 CHIP TA.CAP. 22uF 6.3V TAJA226M006RNJ K78080142 C 1836 CHIP CAP. 22uF GRM188R61A226ME15D K22101808 C 1837 CHIP CAP. 82pF GRM1552C1H820GA01D K22179725 C 1838 CHIP CAP. 0.01uF GRM155B11E103KA01D K22148834 MAIN-11 FTM-300DR/DE Technical Supplement...
  • Page 27 K22108809 C 1932 CHIP CAP. 47pF GRM1552C1H470JA01D K22178228 C 1933 CHIP CAP. 47pF GRM1552C1H470JA01D K22178228 C 1934 CHIP CAP. 47pF GRM1552C1H470JA01D K22178228 C 1935 CHIP CAP. 47pF GRM1552C1H470JA01D K22178228 C 1936 CHIP CAP. 47pF GRM1552C1H470JA01D K22178228 MAIN-12 FTM-300DR/DE Technical Supplement...
  • Page 28 DIODE 1SV323(TPH3.F) G2071006 D 1114 DIODE RN142S TE61 G2070994 D 1131 DIODE 1SV323(TPH3.F) G2071006 D 1132 DIODE 1SV323(TPH3.F) G2071006 D 1133 DIODE 1SV323(TPH3.F) G2071006 D 1134 DIODE RN142S TE61 G2070994 D 1165 DIODE RN142S TE61 G2070994 MAIN-13 FTM-300DR/DE Technical Supplement...
  • Page 29 EDZV T2R 5.1B G2070998 D 1909 DIODE EDZV T2R 5.1B G2070998 D 1910 DIODE EDZV T2R 5.1B G2070998 D 1911 DIODE EDZV T2R 5.1B G2070998 D 1912 DIODE EDZV T2R 5.1B G2070998 D 1913 DIODE 1SS400 TE61 G2070634 MAIN-14 FTM-300DR/DE Technical Supplement...
  • Page 30 L1690843 FB1936 FERRITE BEADS BLM15AG121SN1D L1690843 HS1400 HEATSINK PLATE (7X2.5) RA6086800 HS1900 HEATSINK PLATE (3.4H) RA6275500 J 1750 CONNECTOR AXK6S40437YG P0091509 J 1870 CONNECTOR AXK6F60547YG P0091652 J 1871 TERMINAL NC-0.5-3.2-T S5000327 J 1880 CONNECTOR B2B-ZR(LF)(SN) P0090647 MAIN-15 FTM-300DR/DE Technical Supplement...
  • Page 31 L 1253 COIL 0.047uH SJ0.80-5TR47NK L0023353 L 1254 CHIP COIL 0.012uH LQW18AN12NG00D L1690881 L 1255 COIL 0.015uH AS100440-15R0NJ L0023196 L 1256 COIL 0.015uH SJ0.80-3TR15NK L0023352 L 1257 COIL 0.0093uH AS120252-9R3N L0022853 L 1258 COIL 0.056uH ASs050635-56R0NJ L0022813 MAIN-16 FTM-300DR/DE Technical Supplement...
  • Page 32 DTC144EE TL G3070075 Q 1192 TRANSISTOR 2SC5066-O,LF(T G3350668 Q 1205 TRANSISTOR 2SC5490A-TL-H G3354908A Q 1218 TRANSISTOR 2SC5066-O,LF(T G3350668 Q 1219 TRANSISTOR 2SC5066-O,LF(T G3350668 Q 1220 TRANSISTOR 2SC5066-O,LF(T G3350668 Q 1221 TRANSISTOR 2SC5066-O,LF(T G3350668 Q 1320 RD70HUF2-T5105 G3090166 MAIN-17 FTM-300DR/DE Technical Supplement...
  • Page 33 Q 1685 TC7S66FU(TE85R.F) G1092116 Q 1686 TC7W53FU(TE12L_F) G1094158 Q 1688 TS3A24159DGSRG4 G1094892 Q 1689 LM2904PWR G1094010 Q 1692 TC7S66FU(TE85R.F) G1092116 Q 1693 TC7W53FU(TE12L_F) G1094158 Q 1694 TC7W53FU(TE12L_F) G1094158 Q 1695 TC7S66FU(TE85R.F) G1092116 Q 1696 NJU72341V-TE2 G1095638 MAIN-18 FTM-300DR/DE Technical Supplement...
  • Page 34 RMC1/16S 224JTH J24189053 R 1011 CHIP RES. 220k 1/16W RMC1/16S 224JTH J24189053 R 1012 CHIP RES. 1/16W RMC1/16S 563JTH J24189046 R 1013 CHIP RES. 1/16W RMC1/16S 473JTH J24189045 ø Please Contact YAESU when replacing this part. MAIN-19 FTM-300DR/DE Technical Supplement...
  • Page 35 RMC1/16S 104JTH J24189049 R 1142 CHIP RES. 2.2k 1/16W RMC1/16S 222JTH J24189029 R 1143 CHIP RES. 220k 1/16W RMC1/16S 224JTH J24189053 R 1144 CHIP RES. 1/16W RMC1/16S 473JTH J24189045 R 1145 CHIP RES. 1/16W RMC1/16S 151JTH J24189015 MAIN-20 FTM-300DR/DE Technical Supplement...
  • Page 36 1/16W RMC1/16S 151JTH J24189015 R 1268 CHIP RES. 1/16W RMC1/16S 151JTH J24189015 R 1269 CHIP RES. 1/16W RMC1/16S 151JTH J24189015 R 1270 CHIP RES. 1/16W RMC1/16S 151JTH J24189015 R 1271 CHIP RES. 1/16W RMC1/16S 151JTH J24189015 MAIN-21 FTM-300DR/DE Technical Supplement...
  • Page 37 1/16W RMC1/16S 180JTH J24189004 R 1380 CHIP RES. 1/16W RMC1/16S 180JTH J24189004 R 1381 CHIP RES. 1/16W RMC1/16S 180JTH J24189004 R 1382 CHIP RES. 1/16W RMC1/16S 180JTH J24189004 R 1383 CHIP RES. 1/16W RMC1/16 000JATP J24185000 MAIN-22 FTM-300DR/DE Technical Supplement...
  • Page 38 RMC1/16S 100JTH J24189001 R 1465 CHIP RES. 1/16W RMC1/16S 100JTH J24189001 R 1466 CHIP RES. 1/16W RMC1/16 100JATP J24185100 R 1467 CHIP RES. 2.2k 1/16W RMC1/16S 222JTH J24189029 R 1468 CHIP RES. 1/20W RMC1/20 102JPA J24175102 MAIN-23 FTM-300DR/DE Technical Supplement...
  • Page 39 RMC1/20 102JPA J24175102 R 1541 CHIP RES. 1/16W 0.5% RR0510P-473-D-C J24189159 R 1542 CHIP RES. 1/20W RMC1/20 102JPA J24175102 R 1543 CHIP RES. 220k 1/16W RMC1/16S 224JTH J24189053 R 1544 CHIP RES. 100k 1/16W RMC1/16S 104JTH J24189049 MAIN-24 FTM-300DR/DE Technical Supplement...
  • Page 40 RMC1/16S 102JTH J24189025 R 1619 CHIP RES. 1/16W 0.5% RR0510P-820-D J24189117 R 1620 CHIP RES. 4.7k 1/16W RMC1/16S 472JTH J24189033 R 1621 CHIP RES. 1/16W RMC1/16S 561JTH J24189022 R 1622 CHIP RES. 1/16W 0.5% RR0510P-333-D-C J24189155 MAIN-25 FTM-300DR/DE Technical Supplement...
  • Page 41 0.5% RR0510P-473-D-C J24189159 R 1699 CHIP RES. 1/16W RMC1/16S 473JTH J24189045 R 1700 CHIP RES. 220k 1/16W 0.5% MCR01MZPD2203 J24189389 R 1701 CHIP RES. 1/16W 0.5% RR0510P-273-D-C J24189153 R 1702 CHIP RES. 1/16W 0.5% RR0510P-473-D-C J24189159 MAIN-26 FTM-300DR/DE Technical Supplement...
  • Page 42 RMC1/16S 224JTH J24189053 R 1781 CHIP RES. 270k 1/16W 0.5% MCR01MZPD2703 J24189329 R 1782 CHIP RES. 1/16W RMC1/16S 105JTH J24189061 R 1783 CHIP RES. 1/16W RMC1/16S 103JTH J24189037 R 1784 CHIP RES. 1/16W RMC1/16S 683JTH J24189047 MAIN-27 FTM-300DR/DE Technical Supplement...
  • Page 43 R 1863 CHIP RES. 1/16W RMC1/16S JPTH J24189070 R 1864 CHIP RES. 1/16W RMC1/16S JPTH J24189070 VER A2 R 1864 CHIP RES. 1/16W RMC1/16S JPTH J24189070 VER B2 R 1865 CHIP RES. 1/16W RMC1/16S 223JTH J24189041 MAIN-28 FTM-300DR/DE Technical Supplement...
  • Page 44 1/16W 0.5% RR0510P-103-D J24189143 R 1941 CHIP RES. 1/16W 0.5% RR0510P-153-D-C J24189147 R 1942 CHIP RES. 1/16W 0.5% RR0510P-153-D-C J24189147 R 1943 CHIP RES. 1/16W 0.5% RR0510P-153-D-C J24189147 R 1944 CHIP RES. 1/16W RMC1/16S 102JTH J24189025 MAIN-29 FTM-300DR/DE Technical Supplement...
  • Page 45 RB1914 BLOCK RES. RAC104D102JCTH J42900042 RB1915 BLOCK RES. RAC104D102JCTH J42900042 RB1916 BLOCK RES. RAC104D102JCTH J42900042 RL1250 RELAY DC12V AGP2013F DC12V M1190198 RL1251 RELAY DC12V G6E-134P-US DC12V M1190068 S 1880 SLIDE SWITCH SSAJ120100 N6090114 SC1001 SHIELD CASE (VCO) RA6258200 MAIN-30 FTM-300DR/DE Technical Supplement...
  • Page 46 ThermalConductivePad (040812) RA6321200 ThermalConductivePad (0711.516) RA6321300 ThermalConductivePad (0711.516) RA6321300 ThermalConductivePad (040418) RA6321100 SHEET (10X20) RA6313000 SHEET (10X20) RA6313000 DOUBLE FACE (17X8) RA6327900 ThermalConductivePad (040812) RA6321200 ThermalConductivePad (0711.516) RA6321300 HOLDER PLATE RA6334700 SHEET (10X20) RA6313000 VER B2 MAIN-31 FTM-300DR/DE Technical Supplement...
  • Page 47 PANEL Unit Circuit Diagram PANEL-1 FTM-300DR/DE Technical Supplement...
  • Page 48 Parts Layout PANEL-2 FTM-300DR/DE Technical Supplement...
  • Page 49: Panel Unit

    K22108802 C 2220 CHIP CAP. 0.001uF GRM155B11H102KA01D K22178809 C 2221 CHIP CAP. 470pF GRM155B11H471KA01D K22178805 C 2222 CHIP CAP. 0.022uF GRM155B11C223KA01D K22128806 C 2223 CHIP CAP. 0.022uF GRM155B11C223KA01D K22128806 C 2224 CHIP TA.CAP. 10uF TAJA106M010RNJ K78100120 PANEL-3 FTM-300DR/DE Technical Supplement...
  • Page 50 RB060MM-30TR G2071566 D 2310 HT-193TW5 G2071390 D 2311 HT-193TW5 G2071390 D 2312 HT-193TW5 G2071390 D 2313 HT-193TW5 G2071390 D 2314 SURGE ABSORBER EZAEG2A50AX Q9000868 D 2315 SURGE ABSORBER EZAEG2A50AX Q9000868 D 2316 DIODE 1SS400G T2R G2070934 PANEL-4 FTM-300DR/DE Technical Supplement...
  • Page 51 1/16W RMC1/16S 104JTH J24189049 R 2011 CHIP RES. 1/16W RMC1/16S 102JTH J24189025 R 2012 CHIP RES. 1/16W RMC1/16S 473JTH J24189045 R 2013 CHIP RES. 1/16W RMC1/16S 102JTH J24189025 R 2015 CHIP RES. 1/16W RMC1/16S 102JTH J24189025 PANEL-5 FTM-300DR/DE Technical Supplement...
  • Page 52 0.5% RR0510P-563-D-C J24189161 R 2159 CHIP RES. 1/16W 0.5% RR0510P-393-D-C J24189157 R 2163 CHIP RES. 470k 1/16W RMC1/16S 474JTH J24189057 R 2164 CHIP RES. 1/16W RMC1/16S JPTH J24189070 R 2180 CHIP RES. 1/16W RMC1/16S 221JTH J24189017 PANEL-6 FTM-300DR/DE Technical Supplement...
  • Page 53 J24189025 R 2411 CHIP RES. 1/16W RMC1/16S 473JTH J24189045 R 2412 CHIP RES. 100k 1/16W RMC1/16S 104JTH J24189049 R 2413 CHIP RES. 100k 1/16W RMC1/16S 104JTH J24189049 R 2414 CHIP RES. 100k 1/16W RMC1/16S 104JTH J24189049 PANEL-7 FTM-300DR/DE Technical Supplement...
  • Page 54 S 2066 TACTILE SWITCH EVQPLHA15 N5090174 S 2067 TACTILE SWITCH EVQPLHA15 N5090174 T 2180 CHOKE COIL DLP11SN900HL2L L1691732 VR2001 POT. RK09D1130C2P 10KB J60800268 VR2002 POT. RK09D1130C2P 10KB J60800268 X 2300 XTAL 12MHz FCX-05-12.000MHZ H0103498 SHEET (24X20) RA6338000 PANEL-8 FTM-300DR/DE Technical Supplement...
  • Page 55 DSP Unit Circuit Diagram DSP-1 FTM-300DR/DE Technical Supplement...
  • Page 56 DSP Unit Parts Layout DSP-2 FTM-300DR/DE Technical Supplement...
  • Page 57 RMC1/16S 472JTH J24189033 R 9005 CHIP RES. 6.8k 1/16W RMC1/16S 682JTH J24189035 R 9011 CHIP RES. 1/16W RMC1/16S 102JTH J24189025 R 9016 CHIP RES. 1/16W RMC1/16S 102JTH J24189025 ø Please Contact YAESU when replacing this part. DSP-3 FTM-300DR/DE Technical Supplement...
  • Page 58 J24189070 R 9145 CHIP RES. 1/16W RMC1/16S 103JTH J24189037 R 9146 CHIP RES. 1/16W RMC1/16S 103JTH J24189037 R 9148 CHIP RES. 1/16W RMC1/16S 102JTH J24189025 SC9001 SHIELD CASE (DSP) RA6237000 X 9001 TCXO 19.2MHz TG-5006CG-18H19.2MHZ H9501952 DSP-4 FTM-300DR/DE Technical Supplement...
  • Page 59 Copyright 2020 YAESU MUSEN CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of YAESU MUSEN CO., LTD. YAESU MUSEN CO., LTD. Tennozu Parkside Building 2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan YAESU USA 6125 Phyllis Drive, Cypress, CA 90630, U.S.A.
