RL78/G11 Target Board
YQB-R5F1057A-TB User's Manual
The YQB-R5F1057A-TB is a target board used for evaluating microcontroller operations using a Renesas E1 or E2 Lite
on-chip debugging emulator / flash programmer.
1.
RL78/G11 target board (YQB-R5F1057A-TB) features
•
Incorporates RL78/G11 (R5F1057AANA).
•
Equipped with universal area (2.54mm pitch).
•
Supports both flash memory programming and on-chip debugging (using TOOL0 pin).
•
Highly extendable; peripheral board connector used to access microcontroller pins.
•
Lead-free (Pb-free) product.
2.
Hardware Specifications
CPU R5F1057AANA
Embedded parts
Operating voltage
3.

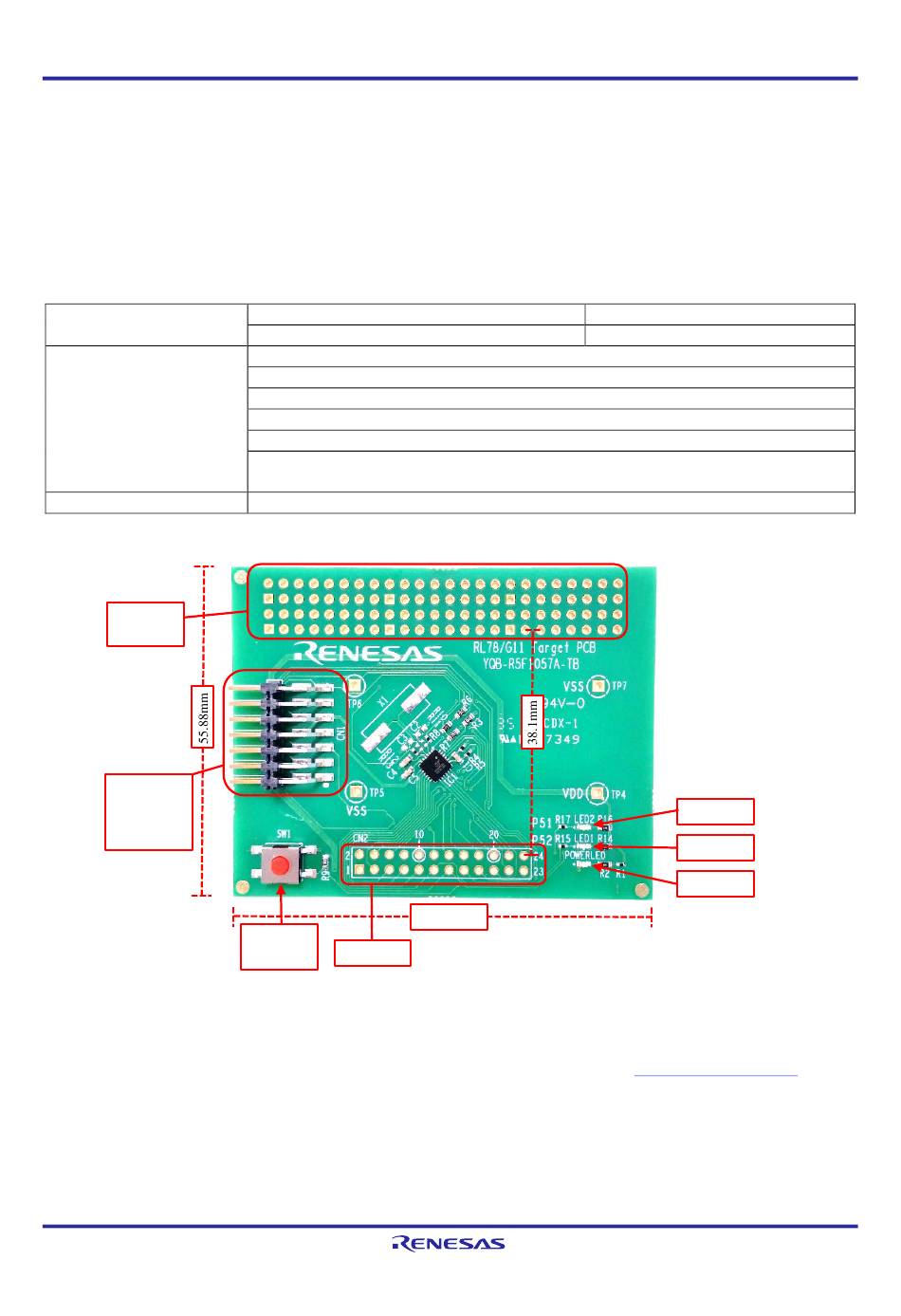

Dimensions and Parts Layout
Universal
Area
14 pin
Connector for
E1 or E2 Lite
On-Board Link options:
4.
Product Support:
5.
Limitation of Warranty
The foregoing warranty does not cover damage caused by accidental misuse, abuse, neglect, misapplication or
modification. No warranty of fitness for a particular purpose is offered. The user assumes the entire risk of using the
product. Any liability of Renesas Electronics Europe is limited exclusively to the replacement of defective media,
materials or workmanship.
R20UT3915EG0100 Rev.1.00
Oct 25, 2016
High Speed On-Chip Oscillator
Crystal Oscillator Connection
CN2 : Peripheral board connector (2.54mm pitch), 24 pin socket (pads only).
CN1 : 14-pin connector (for E1 or E2 Lite connection)
Power LED : Red x 1(POWERLED)
Test LED : Yellow x 2 (LED1 connected to P52, LED2 connected to P51).
Test Switch : SW1 (connected to P137 / INTP0).
Main clock : Internal HOCO up to 48MHz. Provision for 20MHz HC-49 crystal at
position X1 (not fitted, also requiring links at R11, R12 and 18pF capacitors at C2, C3).
1.6V to 5.5V
Test Switch
CN2
SW1
Removing the small (0402) 0Ω link resistors leaves open the relevant circuit (see schematic).
To reconnect the circuit, short the link resistor pads by soldering or reconnecting link resistor.
Link resistor positions are shown on the PCB silkscreen.
Online technical support and information is available at
48MHz to 1MHz
20MHz HC-49 (Not Fitted)
71.12mm
R20UT3915EG0100
Rev.1.00
Oct 25, 2016
LED2
LED1
Power LED
http://www.renesas.com
Page 1 of 2
