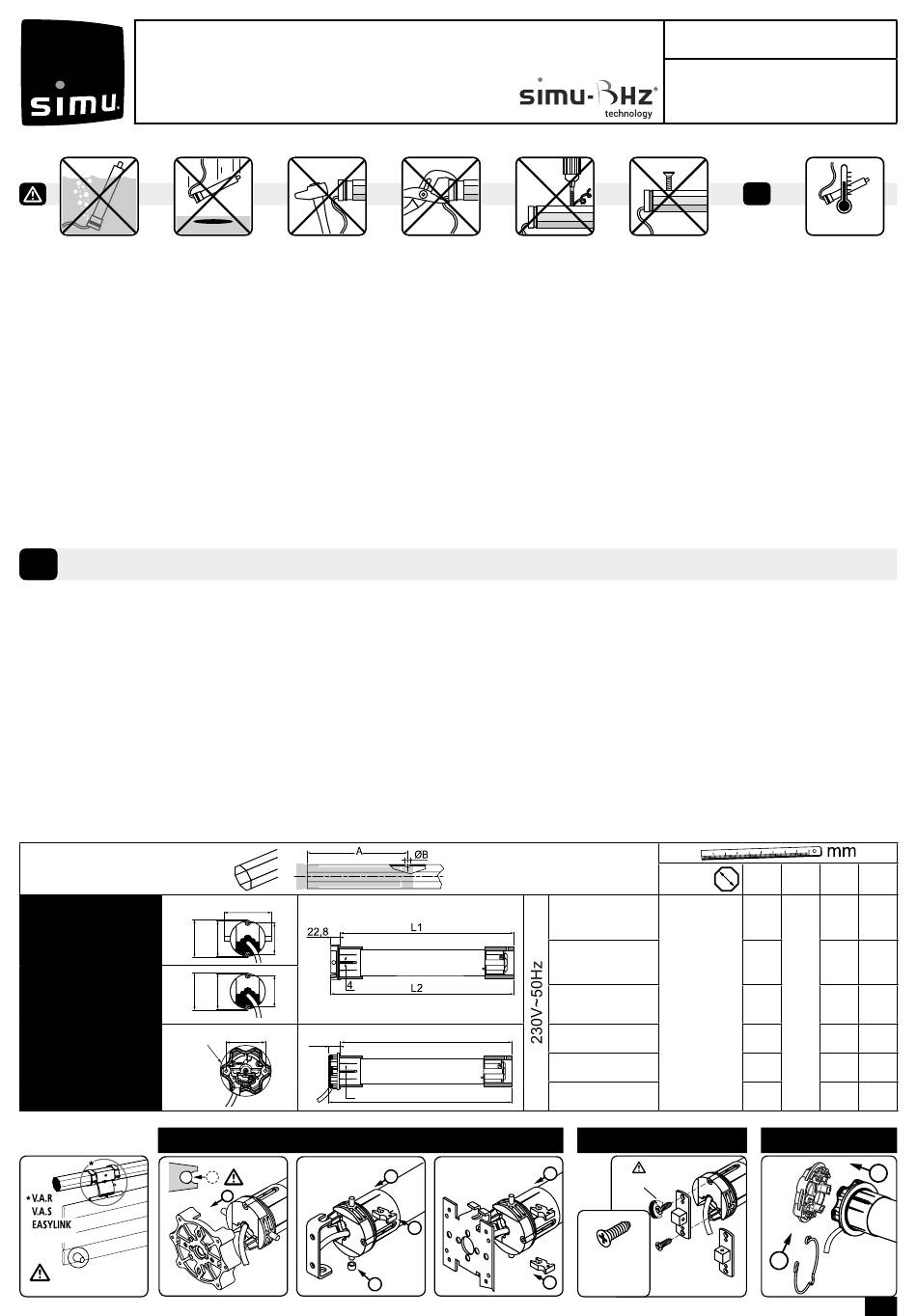

Simu T5 AUTOBHZ Original Instructions Manual page 5

T5 AUTOBHZ/T5 AUTOBHZ WP/T5S AUTOBHZ
(230V~50Hz)
SIMU S.A.S. au capital de 5 000 000 € - Zone Industrielle des Giranaux - 70100 ARC-LÈS-GRAY - FRANCE - RCS VESOUL B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR 87 425 650 090
These instructions apply to all T5 AUTOBHZ/T5 AUTOBHZ WP/T5S AUTOBHZ drives, in all torque/speed.
Field of application: T5 AUTOBHZ/T5 AUTOBHZ WP/T5S AUTOBHZ drive are designed to drive all types of roller shutters
equipped with stop blocks and rigid links. The installer, who must be a motorisation and home automation professional, must
ensure that the drive product is installed in accordance with the standards in force in the country in which it is installed such as
EN 13659 relating to roller shutters.
Liability: Before installing and using the drive, please read operating and installation guide carefully. Please read
these instructions carefully before installing and using the drive. In addition to following the instructions given in this guide,
the instructions detailed in the attached Safety instructions document must also be observed. The drive must be installed
by a motorisation and home automation professional, according to instructions from SIMU and the regulations applicable in
the country in which it is commissioned. It is prohibited to use the drive outside the field of application described above. Such
use, and any failure to comply with the instructions given in this guide and in the attached Safety instructions document,
absolves SIMU of any liability and invalidates the warranty. The installer must inform its customers of the operating and
maintenance conditions for the drive and must provide them with the instructions for use and maintenance, and the attached
Safety instructions document, after installing the drive. Any After-Sales Service operation on the drive must be performed by a
motorisation and home automation professional. If in doubt when installing the drive, or to obtain additional information, contact
a SIMU adviser or go to the website www.simu.com.
1
Installation
Instructions which must be followed by the drive and home automation professional installing the
drive:
- Methods of wiring are given by national standards or IEC 60364 standard.
- Cables which pass through a metal wall must be protected and isolated using a sheath or sleeve.
- The cable for the motor can be removed. If it is damaged, replace by the same. The cable may only be
connected to the motor by qualified personnel. The connector is to be assembled without damaging the
contacts. The continuity of the earth connection must be ensured.
Recommendations: The motor torque must be selected according to the shutter's characteristics. Do not oversize
the operator. Keep a minimum distance of 20 cm between two AUTOBHZ motors. Keep a minimum distance of 30
cm between AUTOBHZ motors and BHz transmitters. A radio appliance using the same frequency (868-870 MHz)
may deteriorate our product's performance. To receive information regarding the compatibility of the motor and the
roller shutter or/and accessories, contact the roller shutter manufacturer or SIMU.
Drilling of the tube:
T5 AUTOBHZ
57.5
57.5
T5 AUTOBHZ WP
Ø62
T5S AUTOBHZ
Mounting:
OCTOEASY
MANDATORY
78
55 48
55 48
48
21
4
T5 AUTOBHZ
1
1
06/17 • 10/17
IP44
06/17 • 10/17
L1
IP44
L2
1
2
3
2
5150677B
EN - ORIGINAL INSTRUCTIONS
i
Ø min.
483
15/17 503
47
20/17 583
483
15/17 503
20/17 583
T5 AUTOBHZ WP
5.3 Nm max
9910013
PLASTITE
FZ5x16
(Ref : 5010255)
9910014
-20°C / +60°C
A ØB L1 L2
496 519
516 539
5
596 619
496 517
516 537
596 617
T5S AUTOBHZ
1
2
EN
