NOTES ON BALANCING, CONFIGURING,
AND OPERATING THE DJI RSC 2
Thrown together by David Tamés, last revised on October 27, 2024 (r4),
you may download the most recent versions of this document from:
https://writingwithacamera.com/download/wwac-dji-rsc-2-notes.pdf
Do you have suggestions for improving these notes? Please send them to
d.tames@northeastern.edu.

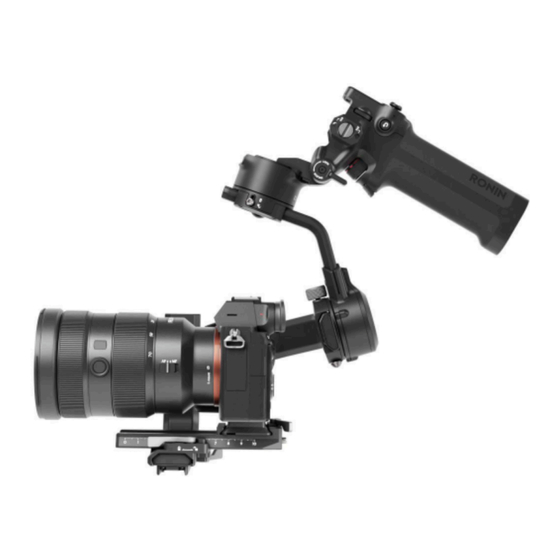

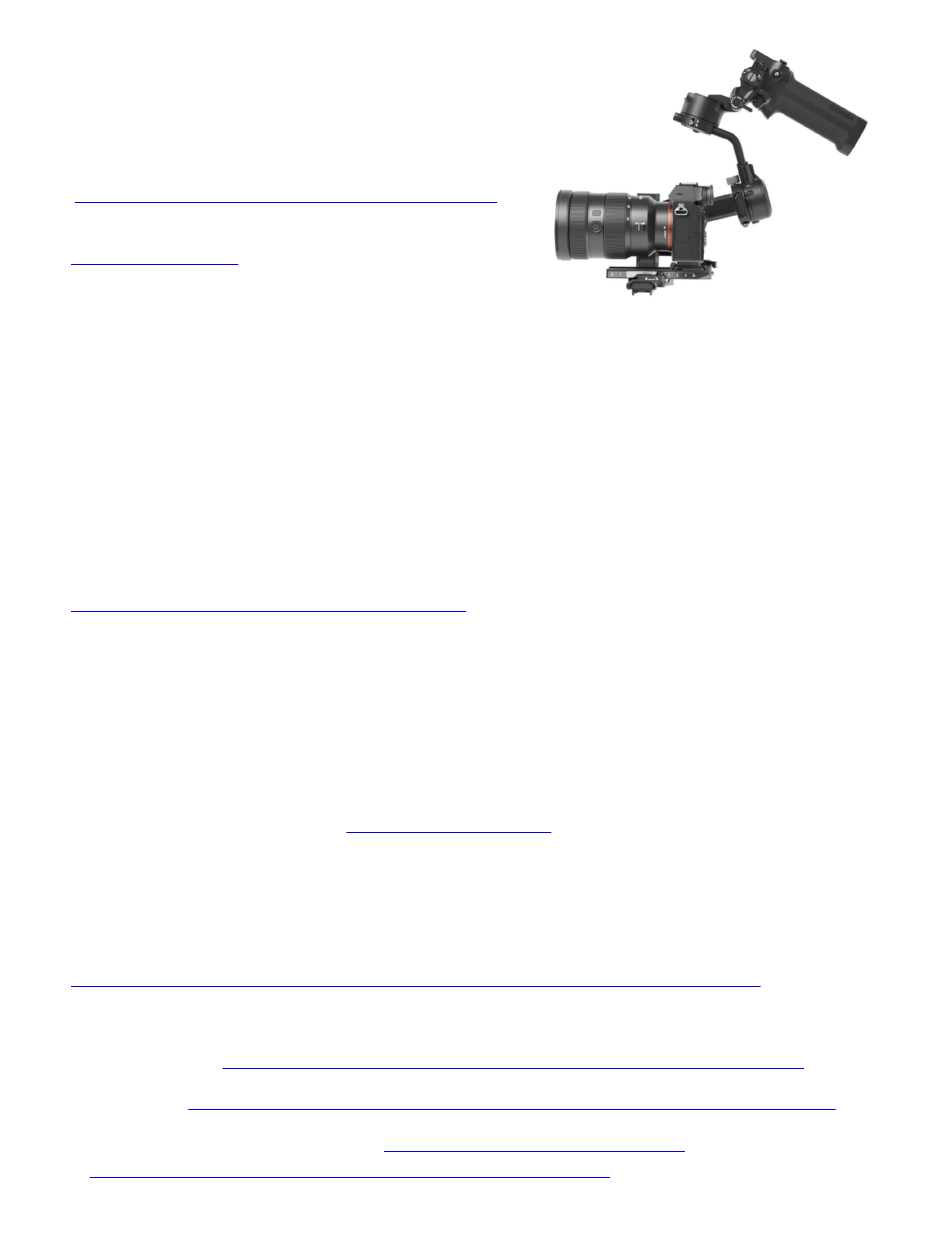

The DJI RSC 2 is a light and portable 3-axis gimbal made for
mirrorless cameras. These notes are designed to help you use this gimbal and provide a starting point for your
own checklists and notes.
If this is your first time with the gimbal, read the safety information in the DJI RSC 2 manual (see KEY
REFERENCES below). These notes are intended to supplement, not replace, the official manual and tutorials
available from DJI. This document is released to the public domain; the author makes no warranty, expressed
or implied, as to the suitability or accuracy of the information in this document.
COMPATIBLE CAMERA AND LENS COMBOS
RSC 2 compatibility information (cameras, lenses, and camera functions and required cables) may be found at:
and it's important to realize this gimbal will not operate
https://www.dji.com/support/compatibility?product=rsc-2
properly with payloads heavier than it was deigned for.
Combinations like the Sony a7iii with the Sigma 24-70 f/2.8 lens can be made to work on the RSC 2, however,
this combination is not on DJI's recommended list. I suggest you will find it easier and more enjoyable to
operate the RSC 2 with a lighter payload. This is why the Zeiss 35mm f/2.8 prime lens is currently included in
the kits from the CAMD Media Center. I recommend this lens over the heavy zoom when using the RSC 2.
If you plan to purchase your own gimbal or you already have one, I suggest looking into custom gear rings for
your lenses from Follow Focus Gears:
, this will enhance the use of the Follow
https://followfocusgears.com/
Focus Motor if you are using one.
KEY REFERENCES
DJI has published a Tutorials Playlist on YouTube that offers excellent starting points using the RSC 2:
https://youtube.com/playlist?list=PL65kukZorPdMczVNuGFN_mpfg1hucD7aM&si=vLRTco5CNqRZe5NF
For important safety information along with detailed instructions, refer to the DJI User Manuals:
• DJI RSC 2 Gimbal:
https://dl.djicdn.com/downloads/DJI_RSC_2/DJI_RSC_2_User_Manual_v1.0_en1.pdf
• Focus Motor:
https://dl.djicdn.com/downloads/DJI_RS_2/DJI_Ronin_Focus_Motor_User_Guide_mul_v1.2.pdf
• RavenEye Image Transmission System:
https://dl.djicdn.com/downloads/DJI_RS_2/
DJI_Ronin_RavenEye_Image_Transmission_System_User_Guide_v1.0_en.pdf
NOTES ON DJI RSC 2 GIMBAL
Revised October 27, 2024 (r4)
Page of
1
8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for dji RSC 2
Summary of Contents for dji RSC 2
- Page 1 If this is your first time with the gimbal, read the safety information in the DJI RSC 2 manual (see KEY REFERENCES below). These notes are intended to supplement, not replace, the official manual and tutorials available from DJI.
- Page 2 FOCUS MOTOR DIAGRAM 1. Communication Port 2. Status Indicator 3. Lock Knob 4. Gear 5. 12mm Rod Mount 6. 12mm Rod 7. Gear Strip (for lenses without 0.8m gears) NOTES ON DJI RSC 2 GIMBAL Revised October 27, 2024 (r4) Page of...
- Page 3 4. Balancing the pan axis. Balance Test. After balancing the RSC 2 you should launch the DJI app, connect to the gimbal with the default password of “12345678” and then run the Balance Test. If the test fails, rebalance, the app will tell you which axis is out of balance.
- Page 4 180° and enter selfie mode. • Front Dial — The default function of the front dial on DJI RSC 2 is to control camera focus. With additional settings, this dial can also be used to control focus motor, ISO, aperture, and the roll axis.
- Page 5 Refer to the manual or tutorials for customizing the follow modes and follow speeds, as well as a variety of advanced settings and modes. You can customize the RSC 2 and save your configurations in three user profiles: M1, M2, and M3 which allows you to switch between custom configurations based on your preferences and shooting style, however, when you're starting out the defaults provide a pretty good starting point.
- Page 6 Return all components to the same location and in the same configuration as you found then. Check the kit contents against the parts inventory upon check out, setting up, and wrapping. 6 TIPS FOR MORE EFFECTIVE USE OF CAMERA MOVEMENT USING THE RSC 2 1. Perform slow movements — unless fast for a reason 2.
- Page 7 Items inside the outline are in the Basic Kit available from the CAMD Media Center. Please check with CAMD Media Center staff for details since inventory is subject to change. NOTES ON DJI RSC 2 GIMBAL Revised October 27, 2024 (r4)
- Page 8 3mm Allen Wrench Carry Case D-Ring Camera Mounting Screw (1/4"-20) × 2 M4 Screw × 6 RSC 2 Axis Arm Knob × 2 Video Cables: Mini-HDMI to HDMI Cable (7.9") Mini-HDMI to Mini-HDMI Cable (7.9") Mini-HDMI to Micro-HDMI Cable (7.9”)
