Summary of Contents for Chauvet Professional WELL BATTEN 14

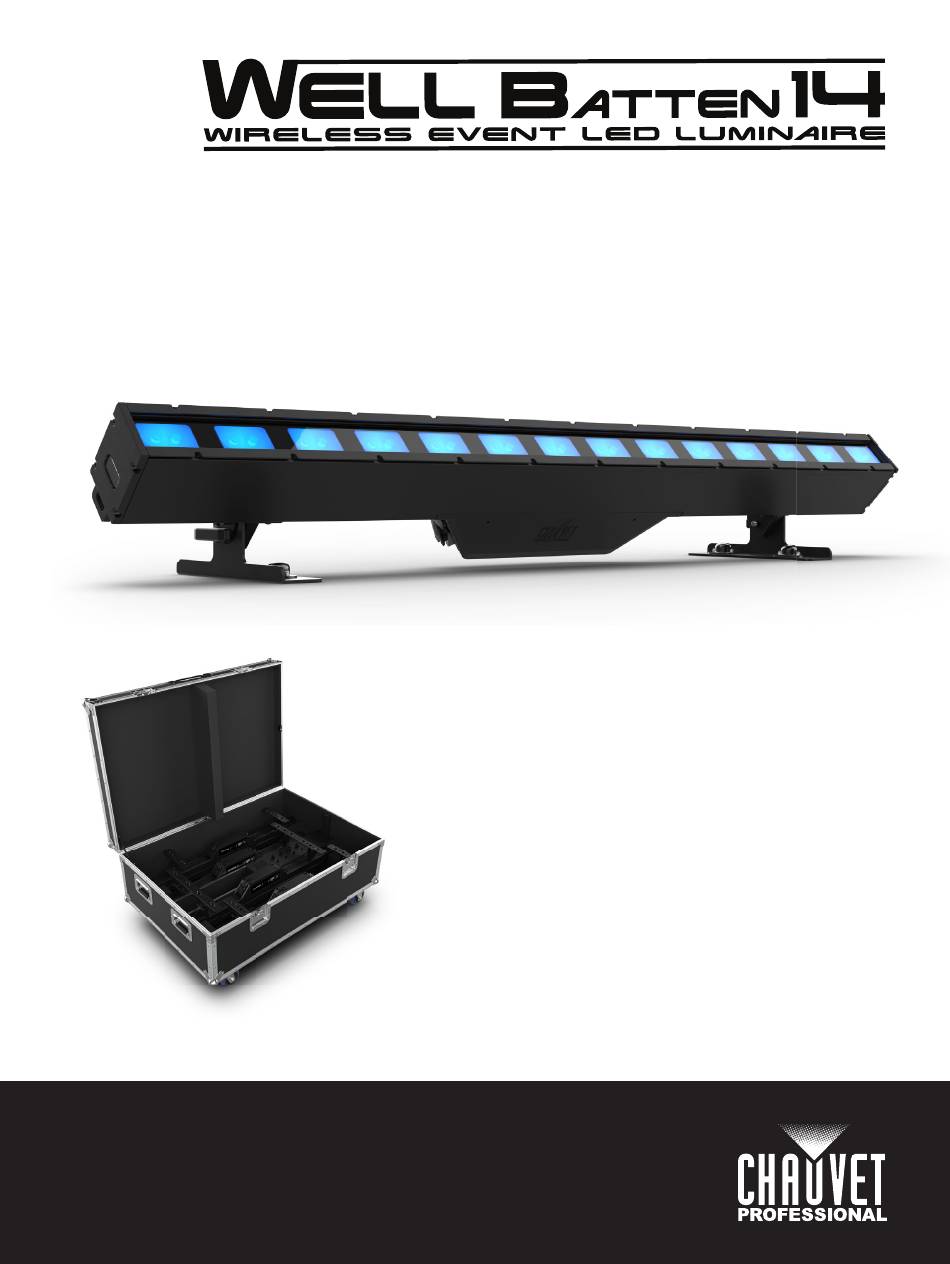

  • Page 1 User Manual Model ID: WELLBATTEN14X4...
  • Page 2: Edition Notes

    Edition Notes The WELL Batten 14 X4 User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the WELL Batten 14 X4 as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and WELL are registered trademarks or trademarks of Chauvet &...
  • Page 3: Table Of Contents

    Procedure......................13 Mounting Diagram......................Multi-Product Horizontal Mounting.................. Glare Shield Installation ....................Filter Installation......................4. Operation ..................Control Panel Description ................Control Options ..................... Programming....................Home Screen ....................Control Panel Lock..................Password ......................17 WELL Batten 14 X4 User Manual Rev. 1...
  • Page 4 Beep Alarm ......................29 Factory Reset..................... 29 Radio Frequency Configuration ..............RF Setting ......................30 RF Controller Operation ..................30 5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................WELL Batten 14 X4 User Manual Rev. 1...
  • Page 5: Before You Begin

    The product has XLR sockets for DMX input and output. • Notice: This control circuit is isolated and belongs to the Class 2 data port. The control circuit has a cumulative leakage current of less than 3.5 mA. WELL Batten 14 X4 User Manual Rev. 1...
  • Page 6: Safety Notes

    • In the event of a serious operating problem, stop using immediately. If this Chauvet product requires service, contact Chauvet Technical Support. WELL Batten 14 X4 User Manual Rev. 1...
  • Page 7: Battery Charge Notes

    Storage Notes Follow the instructions below when storing the WELL Batten 14 X4: • Store charged product(s) in a dry environment, away from direct sunlight.
  • Page 8: Rf Exposure Warning For North America And Australia

    LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. WELL Batten 14 X4 User Manual Rev. 1...
  • Page 9: Introduction

    Built-in PWM Adjustment • Included RF remote • Included 4 pack charging case Product Overview Name LED display Menu buttons DMX in/out Power in/out Safety loop Condensation valve USB-C port On/off button WELL Batten 14 X4 User Manual Rev. 1...
  • Page 10: Product Dimensions

    Do Not Stare at the Operating Light Source 防湿 CHAUVET & SONS, LLC. Made in China 3360 Davie RD, Suite 509, Davie, FL 33314 - USA 2.6 in 65 mm 6.4 in 163.3 mm WELL Batten 14 X4 User Manual Rev. 1...
  • Page 11: Charging Case Overview

    Introduction Charging Case Overview Name Name Power in Fuse holder Power out Indicator WELL Batten 14 X4 User Manual Rev. 1...
  • Page 12: Charging Case Dimensions

    Introduction Charging Case Dimensions 30.9 in 783.9 mm FUSE T5A,250V POWER IN POWER OUT 45.5 in 1156.4 mm 33 in 839 mm 24.3 in 616.4 mm WELL Batten 14 X4 User Manual Rev. 1...
  • Page 13: Accessory Overview / Dimensions

    60 x 10° Filter ° ° The 15 filter may be identified by a single cutout on the lens while the 60X10 filter may be identified two identical cutouts on the lens. WELL Batten 14 X4 User Manual Rev. 1...
  • Page 14: Setup

    4. Screw the fuse holder cap back in place and reconnect power. Power Linking It is possible to power link WELL Batten 14 X4 products. See the table below for the current draw at each voltage and frequency: WELL Batten 14...
  • Page 15: Remote Device Management

    If the WELL Batten 14 X4 has already been paired with the CRMX™ transmitter, the Signal Strength Indicator on top of the display will show the strength of the signal. In this case, the WELL Batten 14 X4 is ready to work in Wireless mode.
  • Page 16: Usb Software Update

    Setup USB Software Update The WELL Batten 14 X4 allows for software update through USB using the built-in USB port. To update the software using a USB flash drive, do the following: 1. Power on the product and plug the flash drive into the USB port.
  • Page 17: Mounting

    Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Procedure The WELL Batten 14 X4 comes with Omega brackets. The user can directly attach a mounting clamp (sold separately) to these Omega brackets. Make sure the clamp is capable of supporting the weight of this product.
  • Page 18: Multi-Product Horizontal Mounting

    Setup Multi-Product Horizontal Mounting The WELL Batten 14 X4 has an interlocking system to align multiple WELL Batten 14 X4 products horizontally. Alignment pin Pin socket Pin release button 1. Press the pin release button of the first product to eject the alignment pin.
  • Page 19: Glare Shield Installation

    Glare Shield Installation The WELL Batten 14 X4 comes with a glare shield, which can be stored or installed in a slot on the side of the product. The product keeps the glare shield and filter in place with a spring-loaded locking plate. To access the glare shield slots: 1.
  • Page 20: Filter Installation

    Setup Filter Installation The filters (sold separately) can be installed by holding down the locking plate and sliding the filter into the grooved channel running the length of the product. WELL Batten 14 X4 User Manual Rev. 1...
  • Page 21: Operation

    Press and hold <MENU> to return to the home screen. Home Screen The WELL Batten 14 X4 has a home screen that shows the current control protocols, personalities, starting addresses, IP addresses, and universes. To see the home screen, press and hold <MENU> until it shows on the display.
  • Page 22: Menu Map

    Operation Menu Map Refer to the WELL Batten 14 X4 product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Selects DMX address DMX Address 001–508 (highest channel restricted to personality chosen) 5 Ch 5-channel: RGBW, control...
  • Page 23 White1 Sets white balance value when selected zone is . . . red, green, blue, or white Red14 Green14 Blue14 White14 1000Hz 2000Hz 3000Hz Sets the PWM frequency Frequency 4000Hz 6000Hz 25KHz WELL Batten 14 X4 User Manual Rev. 1...
  • Page 24 _ _ _ _ _ _.CHL Firmware Fixtures “No such file!” Other Selects an update file for this product, or shows _ _ _ _ _ _.CHL Fixture Type “No such file!” WELL Batten 14 X4 User Manual Rev. 1...
  • Page 25: Dmx Configuration

    To set the starting address in DMX mode: 1. Go to the DMX Address main level. 2. Select the starting address (001–508). Personality Highest Address Products per Universe 5 Ch 8 Ch 15 Ch 66 Ch 85 Ch WELL Batten 14 X4 User Manual Rev. 1...
  • Page 26: Dmx Channel Assignments And Values

    075  079 Linear dimmer curve* 175  249 Reserved for future use 080  084 Square dimmer curve* 250  255 No function 085  089 Inverse square dimmer curve* *Hold for 5 seconds WELL Batten 14 X4 User Manual Rev. 1...
  • Page 27: Automatic Program Chart

    099  106 Automatic program 12 219  226 Automatic program 27 107  114 Automatic program 13 227  255 Automatic program 28 (auto 1-27) 115  122 Automatic program 14 WELL Batten 14 X4 User Manual Rev. 1...
  • Page 28: 85 Ch / 66 Ch / 15 Ch / 8 Ch / 5 Ch

    000  255 0–100% – – – 29 Blue 5 000  255 0–100% – – – 30 White 5 000  255 0–100% – – – – 31 Dimmer 6 000  255 0–100% WELL Batten 14 X4 User Manual Rev. 1...
  • Page 29 – – 68 Strobe 12 011  255 Strobe, slow to fast – – – 69 Red 12 000  255 0–100% – – – 70 Green 12 000  255 0–100% WELL Batten 14 X4 User Manual Rev. 1...
  • Page 30 168  181 Red+blue+white 182  195 Green+blue+white 196  209 Red+green+blue+white 210  223 2800K 224  237 7000K 238  255 Auto – – – Background color dimmer 000  255 0–100% WELL Batten 14 X4 User Manual Rev. 1...
  • Page 31: Standalone Configuration

    2. Select Manual Color Mixer. 3. Select the color to edit (Red, Green, Blue, or White). 4. Set the value for the selected color (0–255). 5. Repeat steps 3 and 4 until product outputs as desired. WELL Batten 14 X4 User Manual Rev. 1...
  • Page 32: Auto Show

    RGBW, 2800K, 7000K, Auto, or Off). Settings Configuration Master/Slave To set the WELL Batten 14 X4 product to master or slave mode: 1. Go to the Master/Slave main level. 2. Select from Master (sends control signal) or Slave (receives control signal).
  • Page 33: Pulse Width Modulation

    Factory Reset To reset the product to factory default settings: 1. Go to the Factory Reset main level. 2. Select No (do not reset) or Yes (reset). WELL Batten 14 X4 User Manual Rev. 1...
  • Page 34: Radio Frequency Configuration

    3. For: • Link: Highlight the Link option, press and hold <Blackout> on the RF Controller, at the same time press <ENTER>. The WELL Batten 14 X4 display will show RF Connected or RF Disconnected. • Group: assign the product to the desired group, from Group 1–4.
  • Page 35: Maintenance

    6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. WELL Batten 14 X4 User Manual Rev. 1...
  • Page 36: Technical Specifications

    DMX I/O Connector Channel Range 5-pin XLR, Wireless Lumenradio CRMX™ 5, 8, 15, 66, or 85 Ordering Product Name Item Name Item Code UPC Number WELL Batten 14 X4 WELLBATTEN14X4 03032590 781462229382 WELL Batten 14 X4 User Manual Rev. 1...
  • Page 37: Contact Us

    For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. WELL Batten 14 X4 User Manual Rev. 1...
