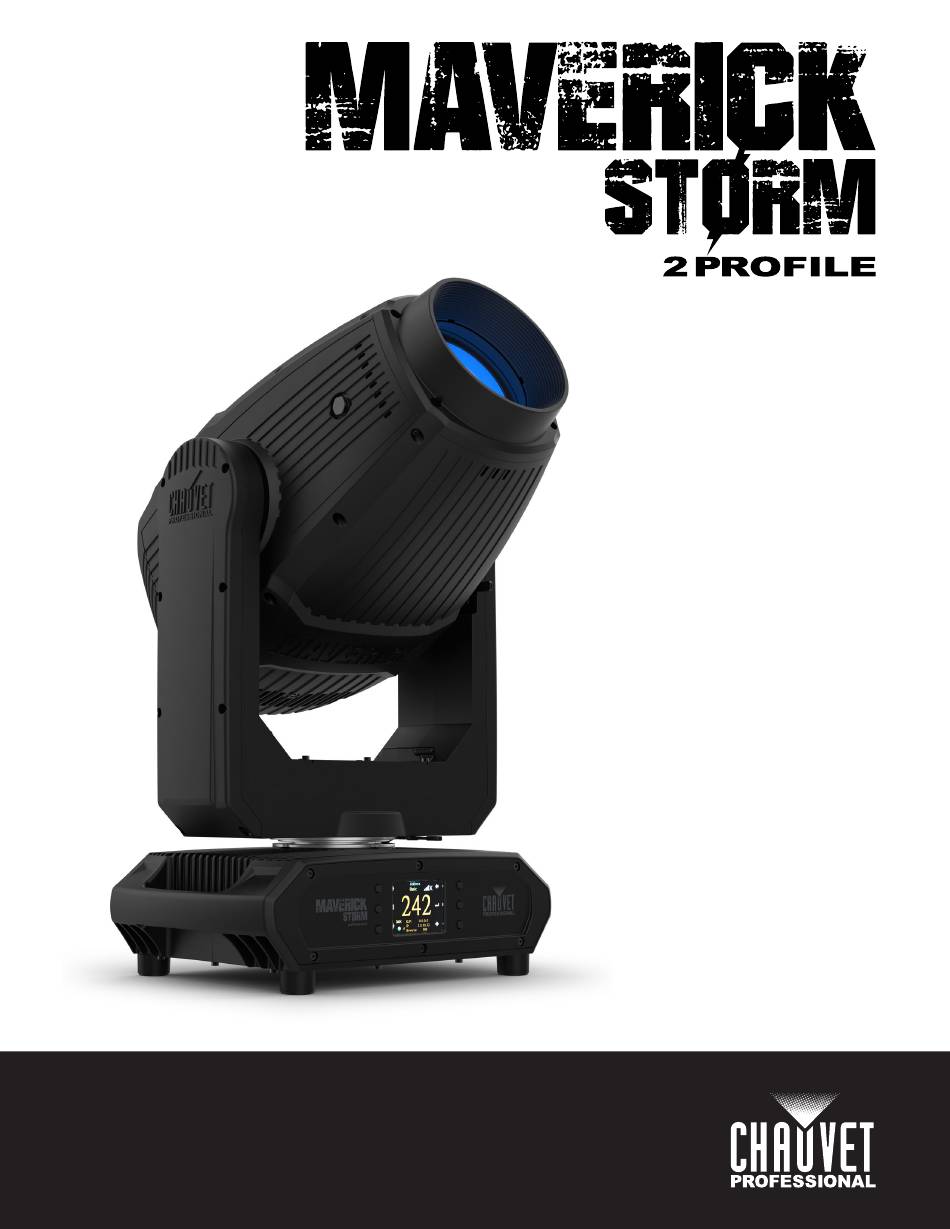

Page 1 User Manual Model ID: MAVERICKSTORM2PROFILE...
Page 2 Edition Notes The Maverick Storm 2 Profile User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Maverick Storm 2 Profile as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Maverick, and Maverick Storm are registered trademarks or trademarks of Chauvet &...
Page 3 Control Panel Lock..................Passcode ......................10 Technician Mode................... Menu Map ..................... Control Configuration ..................Control Mode...................... 15 Control Personalities ..................15 Starting Address....................15 Network Setup....................IP Mode........................... Universe.......................... Manual IP Address......................Maverick Storm 2 Profile User Manual Rev. 3...
Page 4 Gobo Dimensions for Gobo Wheel 1 ..............24 Gobo Replacement .................... 25 5. Maintenance................Product Maintenance ..................Torque Measurements .................. Vacuum Test Measurements ................ 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Maverick Storm 2 Profile User Manual Rev. 3...
Page 5 Any reference to data or power connections in this manual assumes the use of Seetronic IP rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Maverick Storm 2 Profile User Manual Rev. 3...
Page 6 • In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Maverick Storm 2 Profile User Manual Rev. 3...
Page 7 LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Maverick Storm 2 Profile User Manual Rev. 3...
Page 8 2. Introduction Description The Maverick Storm 2 Profile fits a full armory of features into the lightest midsized IP65 moving profile in its division. Drafted to fill designer demand for a double-duty compact powerhouse that combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out.
Page 9 10.12 in 9.92 in 257 mm 252 mm 18.62 in 473 mm 27.52 in 699 mm 14.43 in 366.6 mm 4.7 in 119.4 mm 15.28 in 10.26 in 388 mm 260.7 mm Maverick Storm 2 Profile User Manual Rev. 3...
Page 10 3. Setup AC Power The Maverick Storm 2 Profile has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
Page 11 Setup USB Software Update The Maverick Storm 2 Profile allows for software updates with a USB device using the built-in USB port. To update the software using a USB flash drive, do the following: 1. Power on the product, and plug the flash drive into the USB port.
Page 12 When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Maverick Storm 2 Profile comes with 2 Omega brackets to which the user can directly attach mounting clamps (sold separately). Make sure the clamps are capable of supporting the weight of this product. Use at least two mounting points per product.
Page 13 DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com. DMX Linking The Maverick Storm 2 Profile can link to a DMX controller using a 5-pin DMX connection or a WDMX connection. For more information about DMX, read the DMX primer at: https://www.chauvetprofessional.com/wp-content/uploads/2016/06/DMX_Primer.pdf.
Page 14 <RIGHT> Navigates rightwards through the menu list Battery Powered Display The Maverick Storm 2 Profile has a battery powered display which enables access to the menu when the product is powered off. Press and hold <MENU> until the display activates (approximately 15 seconds).
Page 15 Operation Menu Map Refer to the Maverick Storm 2 Profile product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Address 001–512 Sets the starting address Manual Manually set IP address IP Mode DHCP Network sets IP address...
Page 16 Reset to factory default settings Settings Auto Test Auto test all functions Pan Fine Tilt Test Manually control and test all settings Manual Test Tilt Fine 0–255 through the control panel P/T Speed Dimmer Dimmer Fine Maverick Storm 2 Profile User Manual Rev. 3...
Page 17 Running Mode _ _ _ _ Shows current running mode Fixture Information Information DMX Address _ _ _ Shows current starting address Temperature _ _ _ Shows current product temperature in °C Maverick Storm 2 Profile User Manual Rev. 3...
Page 18 Blade2- 1 Fine Blade2- 2 Blade2- 2 Fine Blade3- 1 Blade3- 1 Fine Blade3- 2 Blade3- 2 Fine Blade4- 1 Blade4- 1 Fine Blade4- 2 Blade4- 2 Fine Blade Rotate Blade. Rota Fine Maverick Storm 2 Profile User Manual Rev. 3...
Page 19 Use control configurations to operate the product with a DMX, Art-Net™, or sACN controller. Control Mode The Maverick Storm 2 Profile works with wired DMX, WDMX, Art-Net™, and sACN control signals. To select which protocol to use: 1. Go to the Settings main level.
Page 20 049  059 Color 7 (CTB) 060  187 Color wheel indexing 188  219 Color scroll, fast to slow 220  223 Stop 224  255 Reverse color scroll, slow to fast Maverick Storm 2 Profile User Manual Rev. 3...
Page 21 106  111 Gobo 2 shaking, slow to fast 112  117 Gobo 1 shaking, slow to fast 118  127 Open 128  191 Gobo scroll, slow to fast 192  255 Reverse gobo scroll, slow to fast Maverick Storm 2 Profile User Manual Rev. 3...
Page 22 064  127 Auto change, slow to fast Iris 128  191 Slow open, fast close, slow to fast 192  255 Fast open, slow close, slow to fast Frost 000  255 0–100% Maverick Storm 2 Profile User Manual Rev. 3...
Page 23 226  230 No function 231  235 Pan/tilt swap on 236  240 Pan/tilt swap off 241  245 Min Zoom Focus off 246  250 Min Zoom Focus on 251  255 No function Maverick Storm 2 Profile User Manual Rev. 3...
Page 24 1. Go to the Settings main level. 2. Select the Backlight Timer option. 3. Select the length of the backlight timer, from 30S (30 seconds), 1M (1 minute), 5M (5 minutes), or ON (always on). Maverick Storm 2 Profile User Manual Rev. 3...
Page 25 1. Connect the Maverick Storm 2 Profile products to receive the Presets by a DMX daisy chain. 2. Make the Maverick Storm 2 Profile with the Presets to transfer the first in the DMX daisy chain. 3. Power on all of the products.
Page 26 3. Select NO (to cancel) or YES (to reset the product configuration). Test Mode Auto Test To have the Maverick Storm 2 Profile automatically test all functions one after the other: 1. Go to the Test main level. 2. Select the Auto Test option.
Page 27 4. Adjust the “zero” position for the selected function from 000–255. Web Server The Maverick Storm 2 Profile Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control setup, manual testing of all functions, firmware updates, and the ability to change the Web Server password.
Page 28 Paperclip Party This Way Orbital Fast Moves Dirty Dirt Laser Rays Box Cutter Limbo Crazy Turns Fractured Mycelium Hex Chem Scribble Aperture Gobo Dimensions for Gobo Wheel 1 25.5 mm 18 mm IMAGE Maverick Storm 2 Profile User Manual Rev. 3...
Page 29 8. Push the gobo holder inwards. DO NOT force the gobo holder into the gobo wheel slot. If correctly installed, the gobo holder should easily slide into the gobo wheel slot. Diagram Locate Pull Back Remove Gobo Holder Gobo Retaining Ring Maverick Storm 2 Profile User Manual Rev. 3...
Page 30 Allen Key screws head covers: 25.5 Kgf.cm, 22.1 lgb.in Vacuum Test Measurements To ensure that the product has been reassembled correctly, use the IP Tester from Chauvet Professional to check the following data has the given measurements for the given method: •...
Page 31 5-pin IP rated XLR Neutrik IP rated RJ45 32 or 48 Ordering Product Name Item Name Item Code UPC Number Maverick Storm 2 Profile MAVERICKSTORM2PROFILE 08011924 781462222727 UL 1573 CSA C22.2 No. 166 E113093 Maverick Storm 2 Profile User Manual Rev. 3...
Page 32 For warranty terms and conditions and return information, please visit our website. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Maverick Storm 2 Profile User Manual Rev. 3...
