Important and Safety Information .................... 2
Specifications .................................................. 3
Assembly - All Tables ...................................... 3
Assembly (Model 2010) ................................... 5
Assembly (Models 2030 & 2040)..................... 6
Assembly (Model 2110) ................................... 8
Assembly (Models 2130 & 2140)..................... 9
Document 2103018 RevC
The Brewer Company, LLC
N88 W13901 Main Street, Suite 100
Menomonee Falls, WI 53051 USA

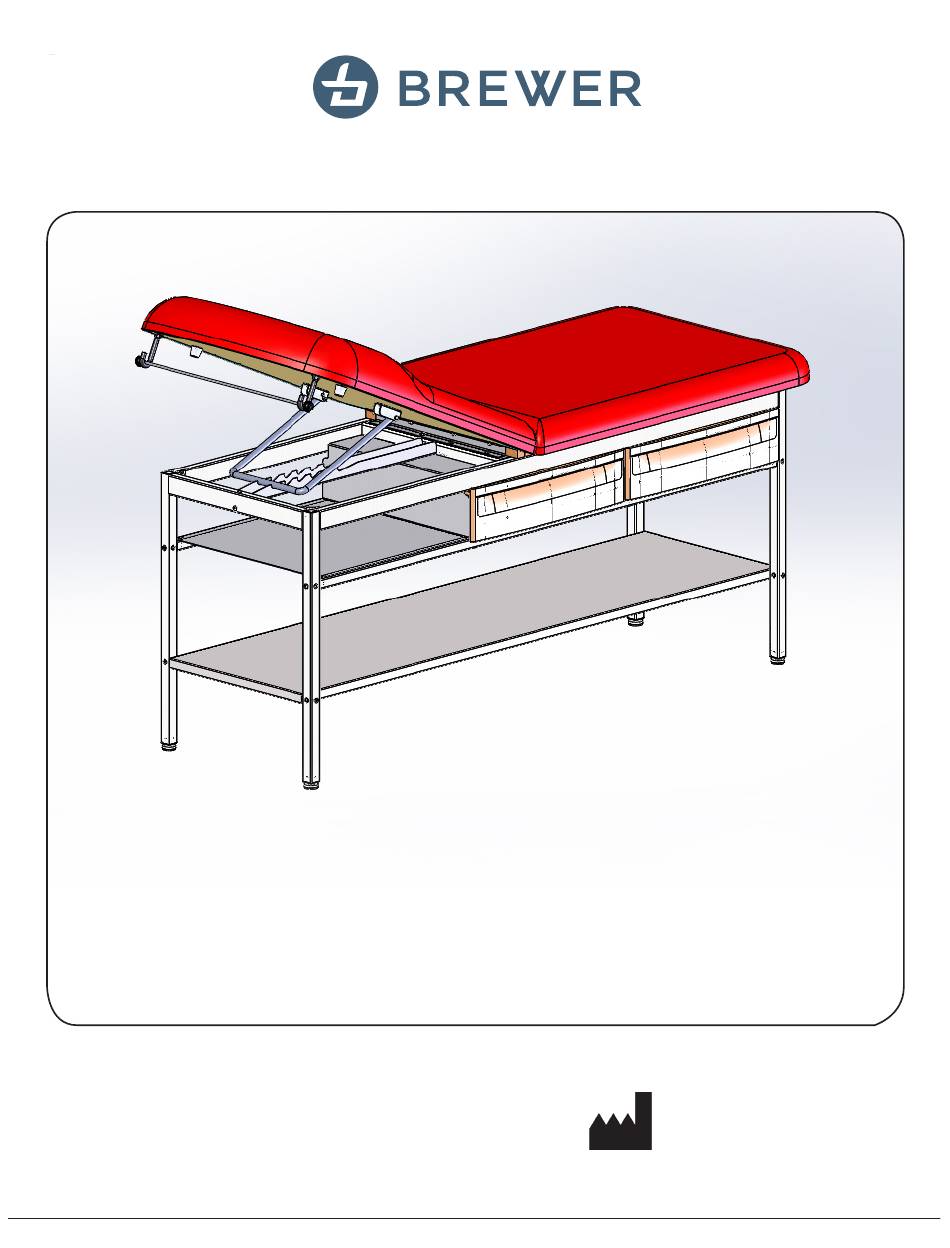

(Model 2240 shown)
Assembly (Model 2210) ................................. 11
Assembly (Models 2230 & 2240)................... 15
Leveling the Table ......................................... 20
Installing the Paper Roll................................. 20
Operating Tilt Back ........................................ 20
Maintenance .................................................. 21
Accessories ................................................... 22
Warranty ........................................................ 22
Printed in USA 2025
