Summary of Contents for Philips PureProtect 3200 Series

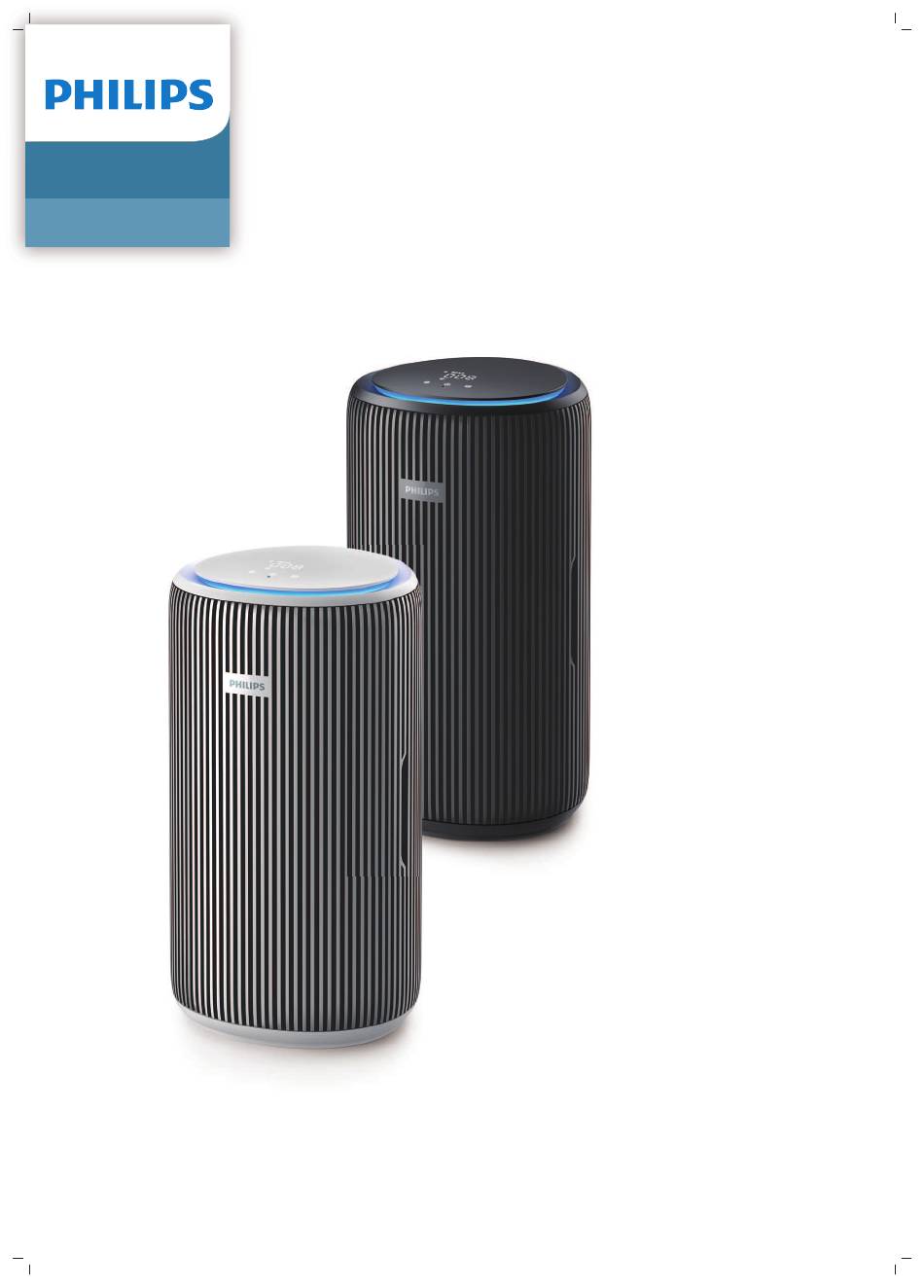

- Page 1 Air purifier AC3220, AC3221...
- Page 5 English 6...
- Page 6 Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect the appliance. If the power cord is damaged, you must have it replaced by Philips, a service center authorized by Philips, or similarly qualified persons in order to avoid a hazard.
-
Page 7: Electromagnetic Fields (Emf)
Do not place the appliance directly below an air conditioner to prevent condensation from dripping onto the appliance. Only use the original Philips filters specially intended for this appliance. Do not use any other filters. Combustion of the filter may cause irreversible human hazard and/or jeopardize other lives. -
Page 8: Your Air Purifier
English Your air purifier Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/support. Product overview... -
Page 9: Controls Overview
English Air outlet Filter (FY3200) Particle sensor Front cover Control panel Adapter (ZD060A240250IN) Controls overview Control buttons: Power on/off button Light function button Mode switch button Long press the button(s) for 3 seconds: Child lock Wi-Fi reset Filter reset Display panel: Auto mode Medium mode Sleep mode... -
Page 10: Getting Started
English The light sensor is located beneath the power button. Please ensure that it is not obstructed by any other objects. Getting started Installing the filters Remove all packaging of the filters before use. Note: Make sure the air purifier is unplugged from the electrical outlet before installing the filters. -
Page 11: Connecting Power
Stable in white Connected to the server Wi-Fi function disabled or device lights are off Wi-Fi connection Setting up the Wi-Fi connection for the first time 1 Download and install the Philips “Air+” app from the App Store or Google Play. - Page 12 4 Launch the Philips “ Air+” app and click on “Add a device” or press the “+” button on the screen. Follow the on-screen instructions to connect the air purifier to your network.
-
Page 13: Using The Air Purifier
English 2 Long press button for 3 seconds at the same time until you hear a beep. The air purifier goes to pairing mode. The Wi-Fi indicator blinks orange. 3 Follow the steps 3-4 in “Setting up the Wi-Fi connection for the first time”section. - Page 14 English 1 Put the plug of the air purifier in the power socket. 2 Press the power button to switch on the air purifier. The air purifier beeps. displays on the screen during warming up. Then the air purifier shows the PM2.5 level after measuring the air quality. The air purifier operates in the Auto mode with PM2.5 displayed on the screen.
- Page 15 English Turbo mode ( ): The air purifier operates on the highest speed. Sleep mode ( ): The air purifier operates quietly at a low speed. After 3 seconds, the display lights turn off. Allergy Seep mode: This mode can be enabled in the Air+ app. Allergy Sleep mode turns your Sleep mode into a more powerful one when you need it.
-
Page 16: Setting The Child Lock
English You can press the button to turn off all lights and the control panel. Press the button again to wake up all lights. Setting the child lock 1 Press the button for 3 seconds to activate the child lock. displays on the screen. -
Page 17: Cleaning Schedule
English Cleaning schedule Frequency Cleaning method When necessary Wipe the plastic part of the appliance with a soft, dry cloth Clean the air outlet cover Every two months Clean the particle sensor with a dry cotton swab displays on the screen Clean the surface of the filter Cleaning the body of the air purifier Regularly clean the inside and outside of the air purifier to prevent dust from... - Page 18 English 3 Clean the particle sensor with a damp cotton swab. 4 Dry all parts thoroughly with a dry cotton swab. 5 Close the air quality sensor. Cleaning the surface of the filters When the filter cleaning alert displays on the screen, clean the surface of the filters with a vacuum cleaner.
- Page 19 English 2 Pull the front cover and remove it from the appliance. 3 Pull the filters out from the appliance. 4 Clean the surface of the filters with a vacuum cleaner. 5 Put the filters back into the appliance. 6 Reattach the front cover.
-
Page 20: Replacing The Filters
English 7 Put the adapter of the air purifier in the power socket. 8 Press the button to switch on the appliance. 9 Press and hold the button for 3 seconds to reset the filter cleaning time. You can also reset the filter cleaning time via the Air+ app. After the reset is successful, the filter cleaning alert disappears from the screen. - Page 21 English Replacing the filters Note: The filters are not washable or reusable. Always turn off the air purifier and unplug from the electrical outlet before replacing the filters. When the filter replacement alert displays on the screen, replace the filter (FY3200).
- Page 22 English 4 Remove all packaging materials of the new filters. 5 Put the new filters back into the appliance. 6 Reattach the front cover. 7 Put the adapter of the air purifier in the power socket. 8 Press the button to switch on the appliance.
-
Page 23: Filter Reset
English 9 Press and hold the button for 3 seconds to reset the filter lifetime counter. You can also reset the filter lifetime via the Air+ app. After the reset is successful, the filter replacement alert disappears from the screen. 10 Wash your hands thoroughly after replacing the filters. -
Page 24: Troubleshooting
English 3 Within 15 seconds after power on, press and hold the button for 3seconds to reset the filter lifetime counter. Storage 1 Turn off the air purifier and unplug from the power socket. 2 Clean the air purifier and the surface of the filters (see Chapter "Cleaning and Maintenance"). - Page 25 This is normal. However, if the appliance produces a burnt smell even if removing the filter, contact your Philips dealer or an authorized Philips service center. The filter may produce smell after being used for a while because of the absorption of indoor gases.
-
Page 26: Warranty And Support
Order parts or accessories If you have to replace a part or want to purchase an additional part, go to your Philips dealer or visit www.philips.com/support. If you have problems obtaining the parts, please contact the Philips Consumer Care Center in your country. - Page 30 PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.
