Air purifier
AC0920, AC0921

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PureProtect Mini 900 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Philips PureProtect Mini 900 Series

Summary of Contents for Philips PureProtect Mini 900 Series

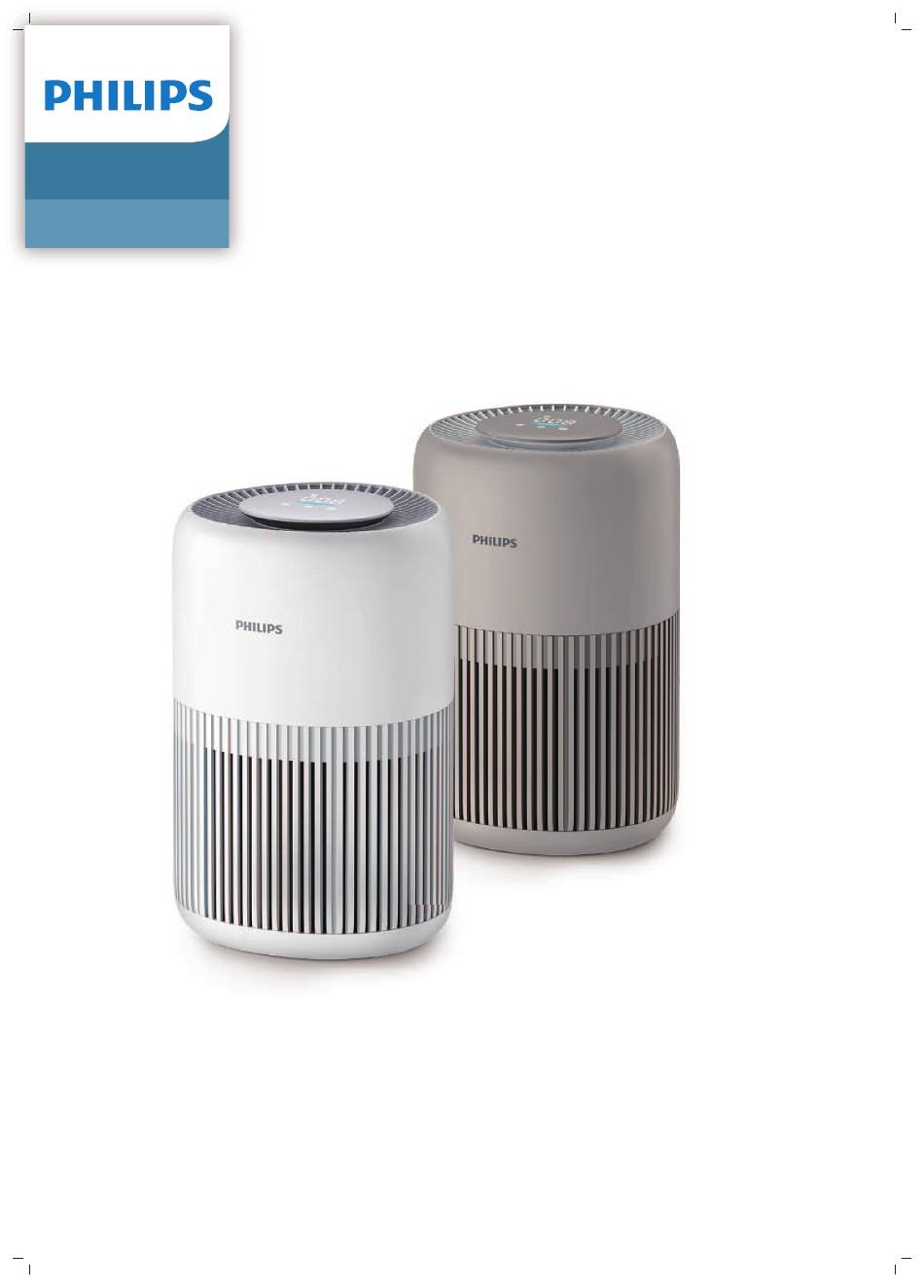

  • Page 1 Air purifier AC0920, AC0921...
  • Page 5 English 6...
  • Page 6 Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect the appliance. If the power cord is damaged, you must have it replaced by Philips, a service center authorized by Philips, or similarly qualified persons in order to avoid a hazard.

  • Page 7: Electromagnetic Fields (Emf)

    The product is in conformance with the restriction of hazardous substances requirement as per the India E-Waste Rule 2022. Your air purifier Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/support.

  • Page 8: Product Overview

    English Product overview Control panel Filter (FY0900)

  • Page 9: Controls Overview

    English Air outlet Base Air quality sensor Adapter (KA2401A-2401000IN) Controls overview Control buttons: Power on/off button Light on/off button Mode switch button Long press the button(s) for 3 seconds: Child lock Filter reset Display panel: Auto mode Medium mode Sleep mode Turbo mode Child lock indicator Filter cleaning alert...

  • Page 10: Connecting Power

    English Note: Make sure the air purifier is unplugged from the electrical outlet before installing the filter. 1 Turn the appliance upside down and place it on a soft cloth. 2 Rotate the base anti-clockwise to remove it from the appliance. Pull the filter out from the appliance.

  • Page 11: Using The Air Purifier

    English Connect the power adapter to: First, the power adapter on the appliance. Then, the wall outlet. Using the air purifier Understanding the air quality light The air quality light automatically goes on when the air purifier is switched on, and lights up all colors in sequence.
  • Page 12 English 1 Put the plug of the air purifier in the power socket. 2 Press the power button to switch on the air purifier. The air purifier beeps. displays on the screen during warming up. Then the air purifier shows the PM2.5 level after measuring the air quality. The air purifier operates in the Auto mode with PM2.5 displayed on the screen.

  • Page 13: Using The Light On/Off Function

    English Turbo mode ( ): The air purifier operates on the highest speed. Sleep mode ( ): The air purifier operates quietly at a low speed. After 3 seconds, the display lights turn off. Using the light on/off function You can press the light on/off button to turn on, dim or turn off all lights and the control panel.

  • Page 14: Setting The Child Lock

    English The control panel is turned off. Setting the child lock 1 Press the button for 3 seconds to activate the child lock. displays on the screen. 2 Press the button for 3 seconds again to deactivate the child lock. disappears from the screen.

  • Page 15: Cleaning Schedule

    English Cleaning schedule Frequency Cleaning method When necessary Wipe the plastic part of the appliance with a soft, dry cloth Clean the air outlet cover Every two months Clean the particle sensor with a dry cotton swab displays on the screen Clean the surface of the filter Cleaning the body of the air purifier Regularly clean the inside and outside of the air purifier to prevent dust from...
  • Page 16 English 3 Clean the particle sensor with a damp cotton swab. 4 Dry all parts thoroughly with a dry cotton swab. 5 Close the air quality sensor. Cleaning the surface of the filter When the filter cleaning alert displays on the screen, clean the surface of the filters with a vacuum cleaner.
  • Page 17 English 3 Rotate the base anti-clockwise to remove it from the appliance. Pull the filter out from the appliance. 4 Clean the surface of the filters with a vacuum cleaner. 5 Put the filter back into the appliance.Reattach the base and rotate it clockwise to fasten the base.

  • Page 18: Replacing The Filter

    English 8 Press and hold the button for 3 seconds to reset the filter cleaning time. After the reset is successful, the filter cleaning alert disappears from the screen. 9 Wash your hands thoroughly after cleaning the filters. Replacing the filter Understanding the healthy air protect lock This air purifier is equipped with a filter replacement indicator to make sure that the air purification filter is in optimal condition when the air purifier is operating.
  • Page 19 English 1 Switch off the air purifier and unplug from the power socket. 2 Turn the appliance upside down and place it on a soft cloth. 3 Rotate the base anti-clockwise to remove it from the appliance. Pull the filter out from the appliance.

  • Page 20: Filter Reset

    English 6 Put the adapter of the air purifier in the power socket. 7 Press the button to switch on the appliance. 8 Press and hold the button for 3 seconds to reset the filter lifetime counter. After the reset is successful, the filter replacement alert disappears from the screen.

  • Page 21: Troubleshooting

    English 1 Press the button to turn off the appliance. Unplug the appliance. 2 Make sure the appliance is completely unplugged, and then put the power adapter in the power socket. 3 Within 15 seconds after power on, press and hold the button for 3seconds to reset the filter lifetime counter.

  • Page 22: Warranty And Support

    This is normal. However, if the appliance produces a burnt smell even if removing the filter, contact your Philips dealer or an authorized Philips service center. The filter may produce smell after being used for a while because of the absorption of indoor gases.

  • Page 23: Order Parts Or Accessories

    Order parts or accessories If you have to replace a part or want to purchase an additional part, go to your Philips dealer or visit www.philips.com/support. If you have problems obtaining the parts, please contact the Philips Consumer Care Center in your country.
  • Page 26 PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.

This manual is also suitable for:

Pureprotect mini ac0920Pureprotect mini ac0921Pureprotect mini ac0920/60
