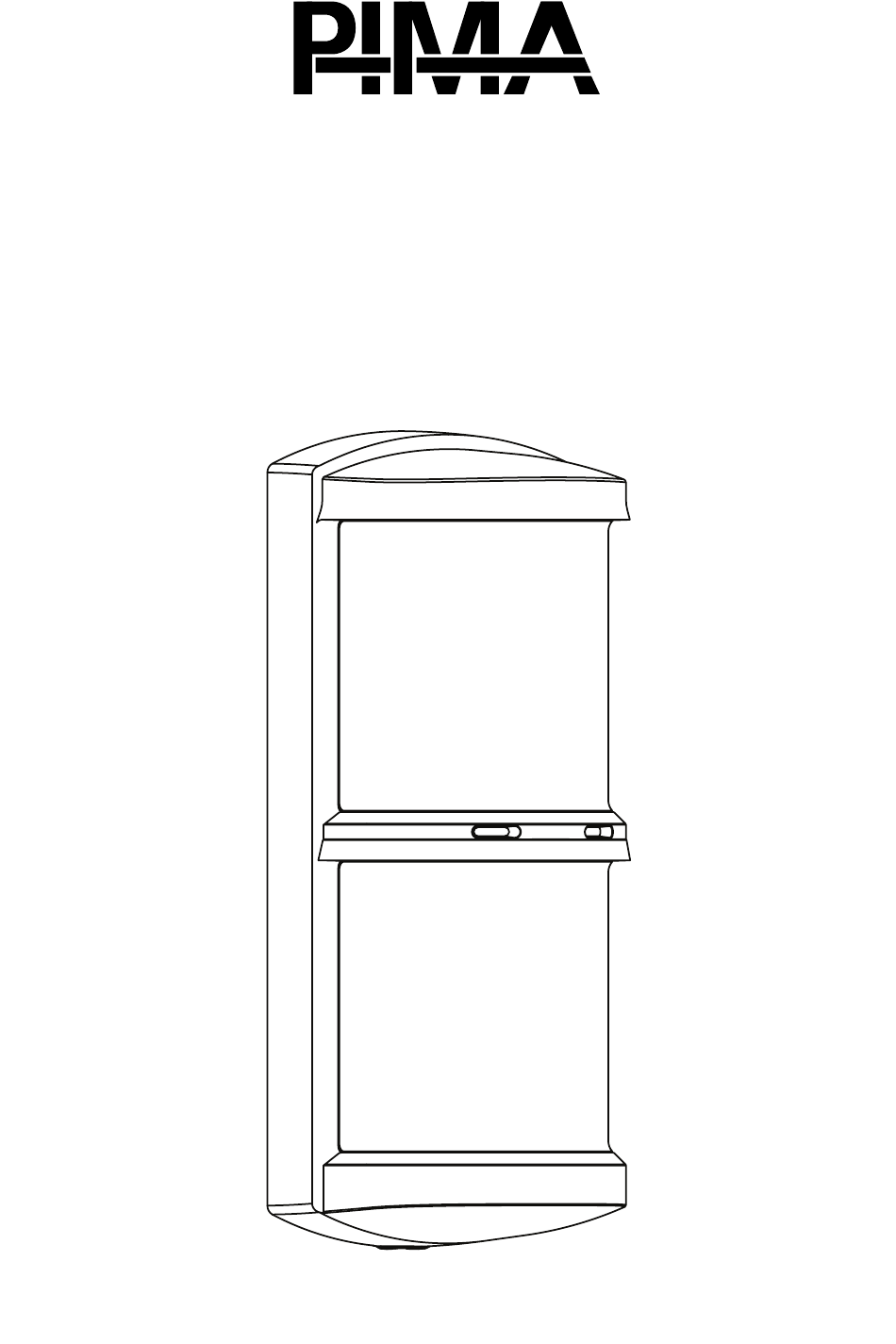

- Page 1 DMX304 180° External Detector 4x PIR, Dual Technology, Anti-Masking Installation Instructions www.pima-alarms.com...
- Page 2 Introduction The DMX304 external detector provides reliable detection over 180° and exceptional false alarm immunity. The detector features four PIRs arranged as two pairs (upper pair and lower pair). Each pair provides 90° coverage via two independent PIR sensors with non-overlapping fields of view.
- Page 3 For sloping ground, the angle of the detector should be adjusted accordingly, either by packing out the back of the detector or by using the optional bracket. DMX304 Example Coverage Pattern. Top View -12m -10m Lower Pair Upper Pair...
- Page 4 Mounting To open the detector undo the locking screw by turning anti-clockwise, then slide the front cover down and away from the backplate. Remove the detector assembly from the wall-plate by undoing the screw at the bottom. Loosen screw Loosen screw...
-
Page 5: Inside View
The detector has a central keyhole slot to aid installation. A central wall tamper screw location is provided to allow for reliable detection of removal from mounting surface. Inside View Spirit Level Wall Tamper Screw Wall Tamper Magnet Optional cable entry Feed Cable Through Here Rear View... -
Page 6: Detector Wiring
Detector Wiring The detector assembly may be hinged away or removed completely from the detector back to aid installation. To ensure that water does not get into the detector follow the dedicated cable route. Bring the cable in through the back following the route shown, piercing the rubber cable grommet to maintain a water tight seal. -
Page 7: Selectable Options
Selectable Options Menu Select Switches Mode Select Switches Program and Status LEDs Program/Learn Button Upper Pair Alarm LED Lower Pair Alarm LED Alarm EOL Jumper Tamper EOL Jumper Upper Pair PIR Sensitivity Lower Pair PIR Sensitivity Sensitivity... - Page 8 Programming The 4-way Menu Select switch is used to select the desired programming menu. Once the menu is selected the status LEDs indicate the current setting. The “Prog” button is then used to change the selected menu options. For Menus 2, 4 & 8 you can select Both Pairs, Upper Pair, or Lower Pair using the Mode Select Switch: Mode Select Function...
- Page 9 Address Menu Select Menu Options LEDs To learn the detector onto the system press the Wireless Learn & Walk Test Select “Prog” button for 1s.To invoke detector “Walk Test” mode press and hold the “Prog” button for 3s. LED & Walk Test Sounder Control LEDs Off, Sounder Off LEDs On, Sounder Off LEDs On, Sounder In Walk Test...
-
Page 10: Walk Testing
Walk Testing To ensure reliable detection it is essential to thoroughly walk test the detector upon installation. To enter walk test mode press and hold the Prog button for 3 seconds. Replace the front cover before walk testing. In “Walk Test Mode” the following apply: •... - Page 11 12m Range 6m Range 2m Range Upper MW Range The microwave ranges may be adjusted via programming option 4 (see page 7), then fine tuned with the trimmer pots on the reverse of the PIR PCBs. Rotate clockwise to increase MW range. Lower MW Range...
-
Page 12: Specification
2 years from the date of purchase. Disclaimer: PIMA will not accept any liability based on a claim that the DMX304 failed to perform correctly as they are Designed and Manufactured in the United Kingdom component parts of an installation and not a complete intruder alarm system.
