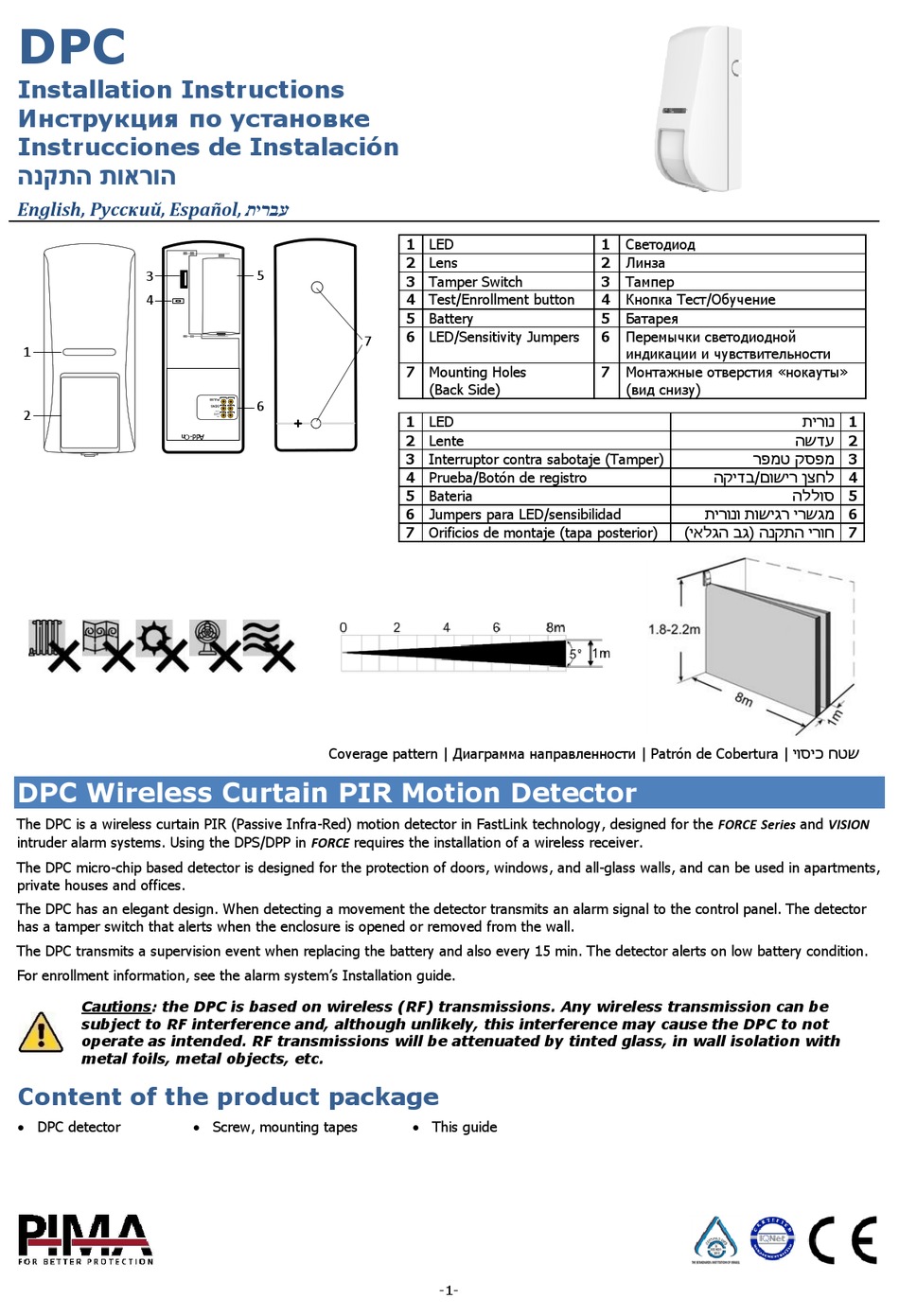

Pima DPC Series Installation Instructions Manual

DPC
Installation Instructions
Инструкция по установке
Instrucciones de Instalación
‫הוראות התקנה‬
English, Русский, Español, ‫עברית‬
3
4
1
2
DPC Wireless Curtain PIR Motion Detector
The DPC is a wireless curtain PIR (Passive Infra-Red) motion detector in FastLink technology, designed for the FORCE Series and VISION
intruder alarm systems. Using the DPS/DPP in FORCE requires the installation of a wireless receiver.
The DPC micro-chip based detector is designed for the protection of doors, windows, and all-glass walls, and can be used in apartments,
private houses and offices.
The DPC has an elegant design. When detecting a movement the detector transmits an alarm signal to the control panel. The detector
has a tamper switch that alerts when the enclosure is opened or removed from the wall.
The DPC transmits a supervision event when replacing the battery and also every 15 min. The detector alerts on low battery condition.
For enrollment information, see the alarm system's Installation guide.
Cautions: the DPC is based on wireless (RF) transmissions. Any wireless transmission can be
subject to RF interference and, although unlikely, this interference may cause the DPC to not
operate as intended. RF transmissions will be attenuated by tinted glass, in wall isolation with
metal foils, metal objects, etc.
Content of the product package
 DPC detector
5
6
Coverage pattern | Диаграмма направленности | Patrón de Cobertura | ‫שטח כיסוי‬
 Screw, mounting tapes
1 LED
2 Lens
3 Tamper Switch
4 Test/Enrollment button
5 Battery
6 LED/Sensitivity Jumpers
7
7 Mounting Holes
(Back Side)
1 LED
2 Lente
3 Interruptor contra sabotaje (Tamper)
4 Prueba/Botón de registro
5 Bateria
6 Jumpers para LED/sensibilidad
7 Orificios de montaje (tapa posterior)
 This guide
