Pima VOX500 Installation Instructions

VOX500
Installation Instructions
‫הוראות התקנה‬
‫עברית‬
English,
1
2
3
4 5

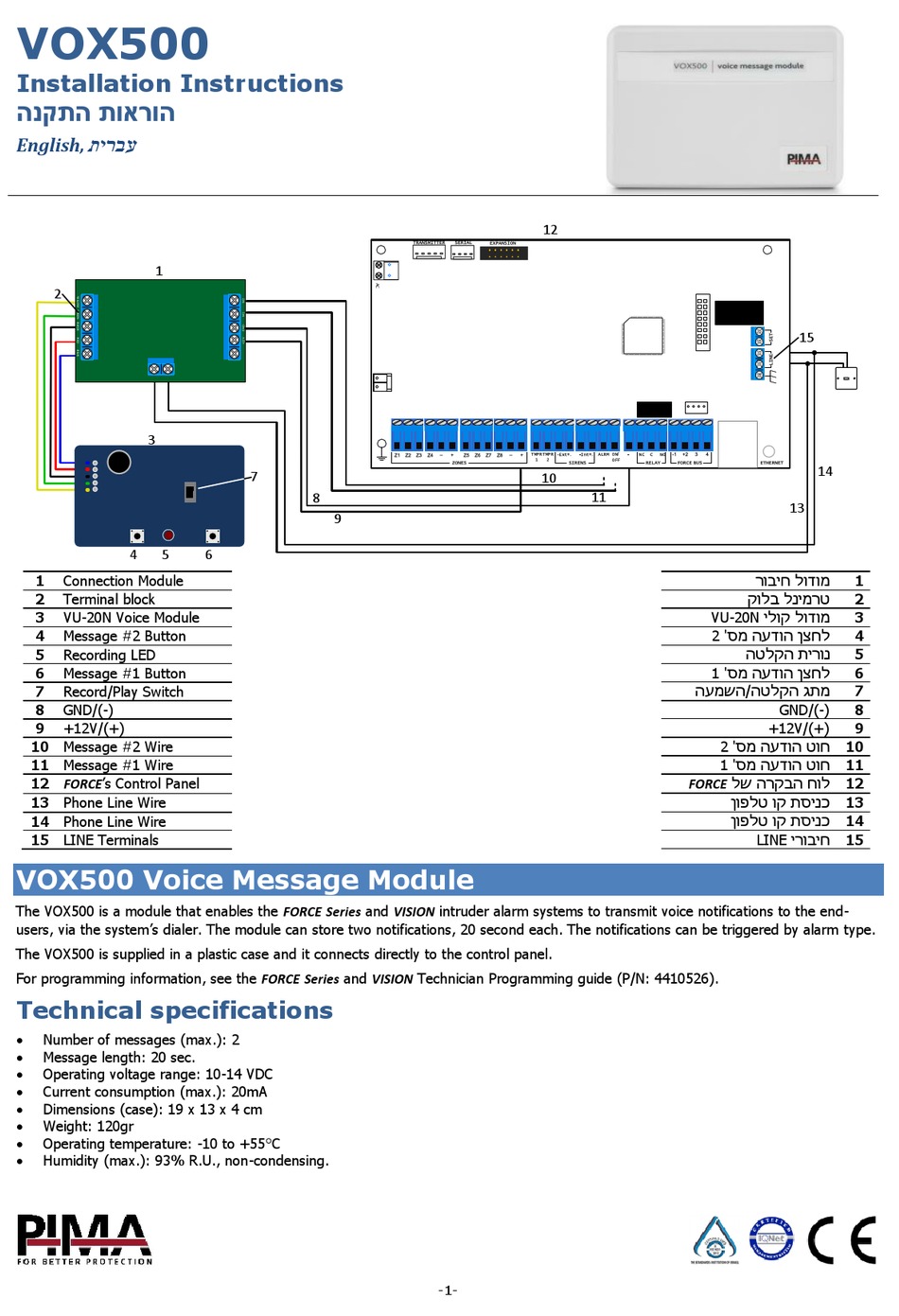

1 Connection Module
2 Terminal block
3 VU-20N Voice Module
4 Message #2 Button
5 Recording LED
6 Message #1 Button
7 Record/Play Switch
8 GND/(-)
9 +12V/(+)
10 Message #2 Wire
11 Message #1 Wire
12 FORCE's Control Panel
13 Phone Line Wire
14 Phone Line Wire
15 LINE Terminals

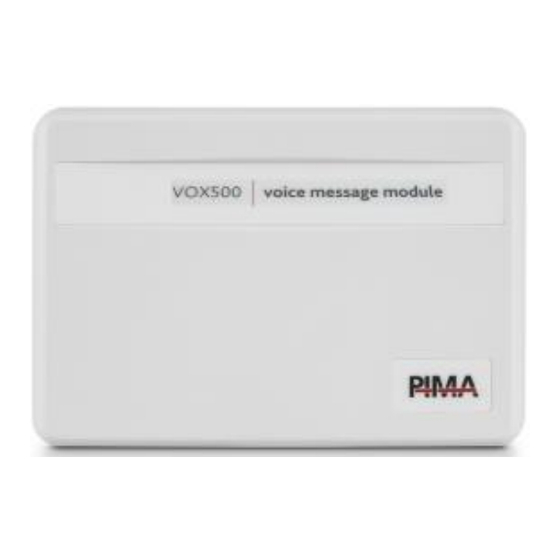

VOX500 Voice Message Module
The VOX500 is a module that enables the FORCE Series and VISION intruder alarm systems to transmit voice notifications to the end-
users, via the system's dialer. The module can store two notifications, 20 second each. The notifications can be triggered by alarm type.
The VOX500 is supplied in a plastic case and it connects directly to the control panel.
For programming information, see the FORCE Series and VISION Technician Programming guide (P/N: 4410526).
Technical specifications
 Number of messages (max.): 2
 Message length: 20 sec.
 Operating voltage range: 10-14 VDC
 Current consumption (max.): 20mA
 Dimensions (case): 19 x 13 x 4 cm
 Weight: 120gr
 Operating temperature: -10 to +55°C
 Humidity (max.): 93% R.U., non-condensing.
7
8
9
6
12
10
11
-1-
15
14
13
‫מודול חיבור‬ 1
‫טרמינל בלוק‬ 2
VU-20N ‫קולי‬ ‫מודול‬ 3
2 '‫מס‬ ‫לחצן הודעה‬ 4
‫נורית הקלטה‬ 5
1 '‫מס‬ ‫לחצן הודעה‬ 6
‫מתג הקלטה/השמעה‬ 7
GND/(-) 8
+12V/(+) 9
2 '‫הודעה מס‬ ‫חוט‬ 10
1 '‫חוט הודעה מס‬ 11
‫לוח הבקרה של‬ 12
FORCE
‫כניסת קו טלפון‬ 13
‫כניסת קו טלפון‬ 14
LINE ‫חיבורי‬ 15
