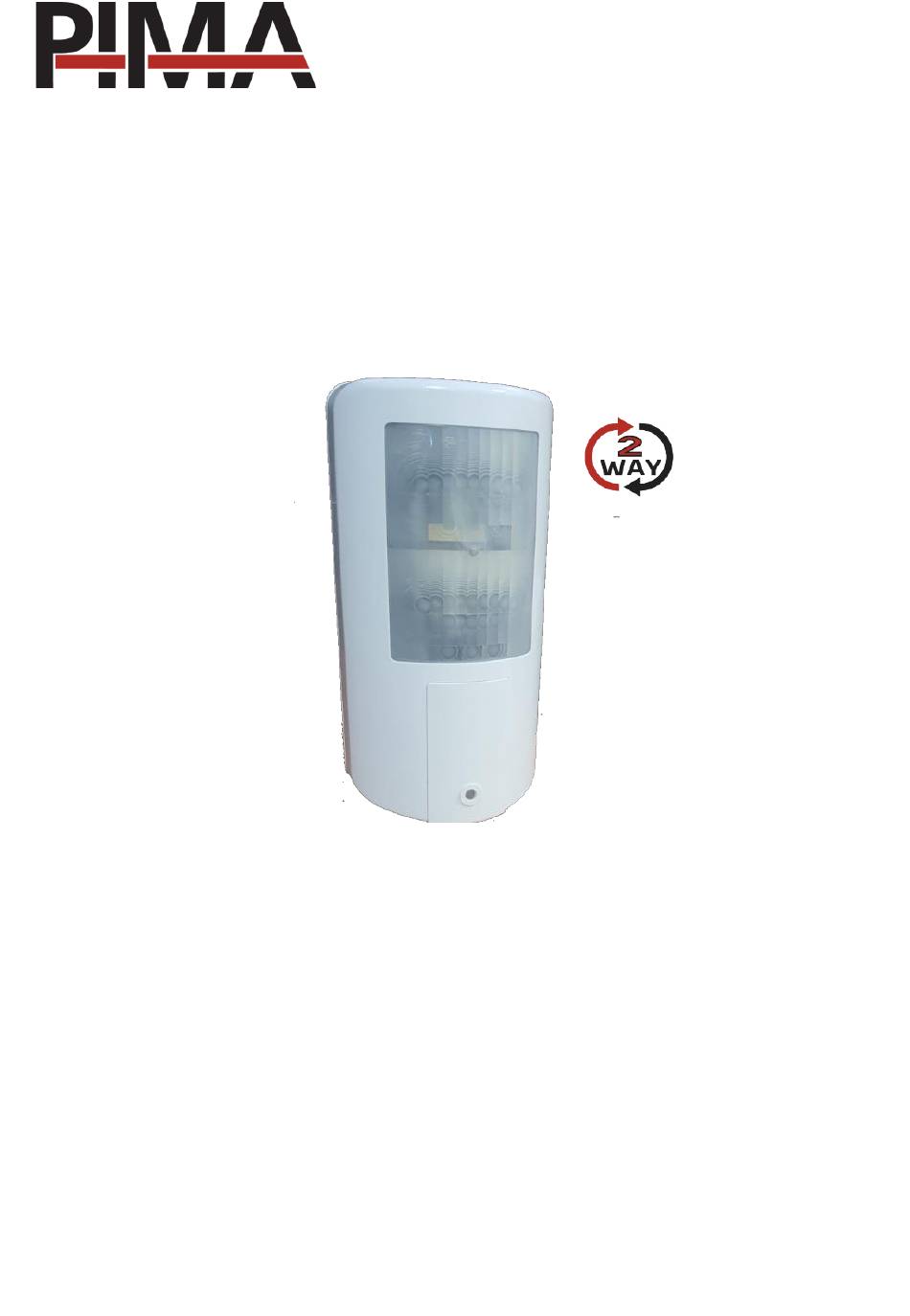

- Page 1 Wireless 2-Way Outdoor DT Detector Installation Instructions Model: DPD743 / DPD786...
-
Page 2: Features Include
Description The DPD743/786 is a battery powered wireless DT detector that has been designed to provide enhanced 24-hour outdoor protection, with Active IR Anti-mask capabilities. Integrated Dual Technology (DT) combines two K-band microwave channels with two PIR sensors for better catch performance and pet immunity, minimizing false alarm. - Page 3 Figure 2 Walking direction must cut across the beam pattern Figure 3 Do not install the device close to any moving objects...
- Page 4 Step 2: Coverage PIR Coverage Mounting height [m] Distance [m] 2.2 (optimal) Note For pet immunity, install the detector at the optimal height of 2.2 meters. PIR Coverage - Using Swivel Bracket Note The table below is relevant when using the Swivel Bracket (Model: BRS180).
- Page 5 2. Enter the serial number and press . 3. Select Enroll and press . Enrolling through the Force Manager Software: You can enroll the detector using Force Manager software; For information refer to the Force Manager Manual. Step 4: Mount the Detector on the Wall Bracket Figure 5 Unscrew and separate detector from mounting bracket.
- Page 6 Figure 8 CAUTION! The detector batteries are supplied inside of the unit, which are covered with plastic wrapping. Remove the plastic wrapping from the batteries before installation. Figure 7 Observing battery polarity, insert 3 CR123 3V Lithium batteries (supplied) into the batteries compartment Secure the wall bracket to the wall using the 5 screws.
-
Page 7: Step 6: Performing A Walk Test
Step 6: Performing a Walk Test Figure 10 The detector automatically enters walk test mode for 10 minutes following tamper closure. Walk through the entire protected area and observe the LEDs to confirm full coverage (see LED Status). Manually initiate a walk test: Select Installer Menu: Diagnostics >... -
Page 8: Detector Configuration
Detector Configuration Being bi-directional, the detectors parameters can be modified from the keypad or from the system configuration software according to your needs. PIR Sensitivity: High/Low* MW Sensititvity: Min. 25%, 50%, 65%*, 85%, max. ** Anti-Mask: Yes/No* LED: On*/Off Operation Mode: Immediate: The detector transmits after each detection Normal –... -
Page 9: Specifications
BRS180 5000020 UKCA and CE RED Compliance Statement Hereby, PIMA declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the CE Declaration of Conformity please refer to our website: www.pima-alarms.com... -
Page 10: Limited Warranty
Limited Warranty PIMA Electronic Systems Ltd. does not represent that its product may not be compromised and/or circumvented, or that the Product will prevent any death, personal and/or bodily injury and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the Product will in all cases provide adequate warning or protection.
