Pima DSK743 Installation Instructions

Wireless
Shock & Contact Detector
Model: DSK743 / DSK786
Installation Instructions
GENERAL DESCRIPTION
The DSK743 / DSK786 combines both a Shock detector and a
Door/Window Contact detector in a single casing for internal use that
provides reliable 24-hour perimeter protection.
The detector employs an advanced digital microprocessor to analyze
the vibration signal received from the piezo electric sensor.
The DSK has a reed switch for protection against opening doors and
windows, and against any attempt to tamper the detector using large
magnets.
This detector operates in conjunction with PIMA's programmable
receivers in the FORCE and VISION Alarm Systems and is powered
by a standard 3-volt lithium battery.
MAIN FEATURES
• Digital Microprocessor with Intelligent Digital Signal Processing
• Tri-color LED enables accurate and reliable calibration, with "over-
sensitive" and "under-sensitive" indications
• Gross attack detections
• Shock and Contact detection reported to separate zones in the
receiver
• Detects attempts of magnet tampering (0.3T)
• Encapsulated bi-morph piezo electric sensor
• Dual stage adjustment potentiometer
• Back & Cover tamper protection
• Operates up to 300m (1000 ft) range (LOS)
• Uses one of more than 16 million addresses codes
• Hold on/off
• Fully supervised
ON
1 2 3 4 5 6
DIPSWITCH
DIPSWITCHES
Dipswitch Description
1 Used to enable or disable LED
Dipswitch LED
Position
ON (Default) Enabled
OFF Disabled
2 Used to determine the sensitivity of the Shock detector
Dipswitch Sensitivity
Position
ON (Default) High
OFF Low
NOTE: For fine tuning use the sensitivity trimmer.
3 Used to determine the detector HOLD status (Contact Only)
Dipswitch Hold Status
Position
ON There will be 2.5 minutes dead time between the
alarm detection transmissions. (Restore
messages will be sent immediately)
NOTE: Only one alarm message is transmitted in
any 2.5 minute period.
OFF (Default) No dead time between alarm detection
transmissions (the unit transmits after each
detection)
4 Used to enable or disable the Contact
Dipswitch Internal Reed Switch (S1)
Position
ON Disable
OFF (Default) Enable
5 Used to enable or disable the anti-sabotage function (Contact Only)
Dipswitch Anti-Sabotage Reed Switch (S2)
Position
ON Enable
OFF (Default) Disable
6 Not applicable
LED INDICATION
After each detection, the LED turns ON momentarily.
On Low Battery condition, the LED will blink during each transmission.
GREEN Indicates an alarm condition for Shock detection
• Under-Sensitive indication of Shock detector
RED
• Indicates an alarm condition for Contact detection
• Tamper indication
• Enrollment message
ORANGE Over-Sensitive indication for Shock detection
FRONT COVER REMOVAL

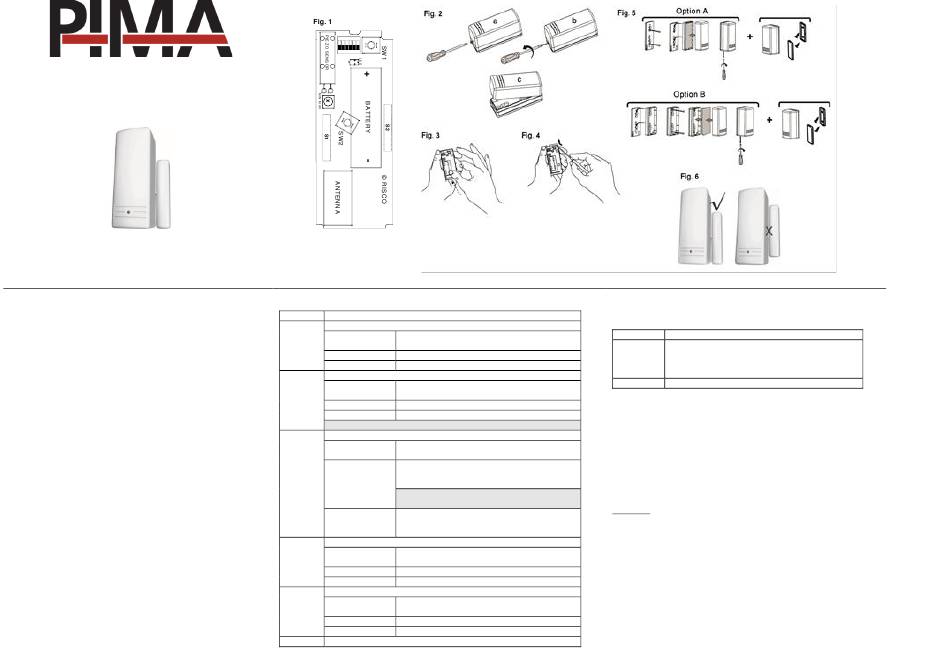

Remove the front cover as described in Figure 2.
DSK Enrollment
For complete description of the wireless configuration and device
enrollment, refer to Programming Guide for the FORCE and VISION
Alarm Systems.
Enrollment of the DSK in the system can be performed manually or
automatically via the keypad.
The Shock detector and the Contact detector must be enrolled
separately. This is accomplished by performing the following steps:
Auto Enrolling (using RF Communication)
1. Enter Installer menu and select: System Configuration > Peripherals >
Wireless Peripherals > Enroll and delete > Detectors >Enroll >Auto
Enrollment.
2. Remove the battery from the insulation material and reinsert it into the
transmitter, paying attention to the polarity (see Fig. 3).
3. Enroll each detector separately for its zone number. Use Dipswitch 3,
as described in the table below, to choose a detector. To enroll the
Shock detector set the Dipswitch to the OFF position and press both
tamper buttons for at least 3 seconds; verify the serial number appears
on the keypad display and press on Enroll
.
