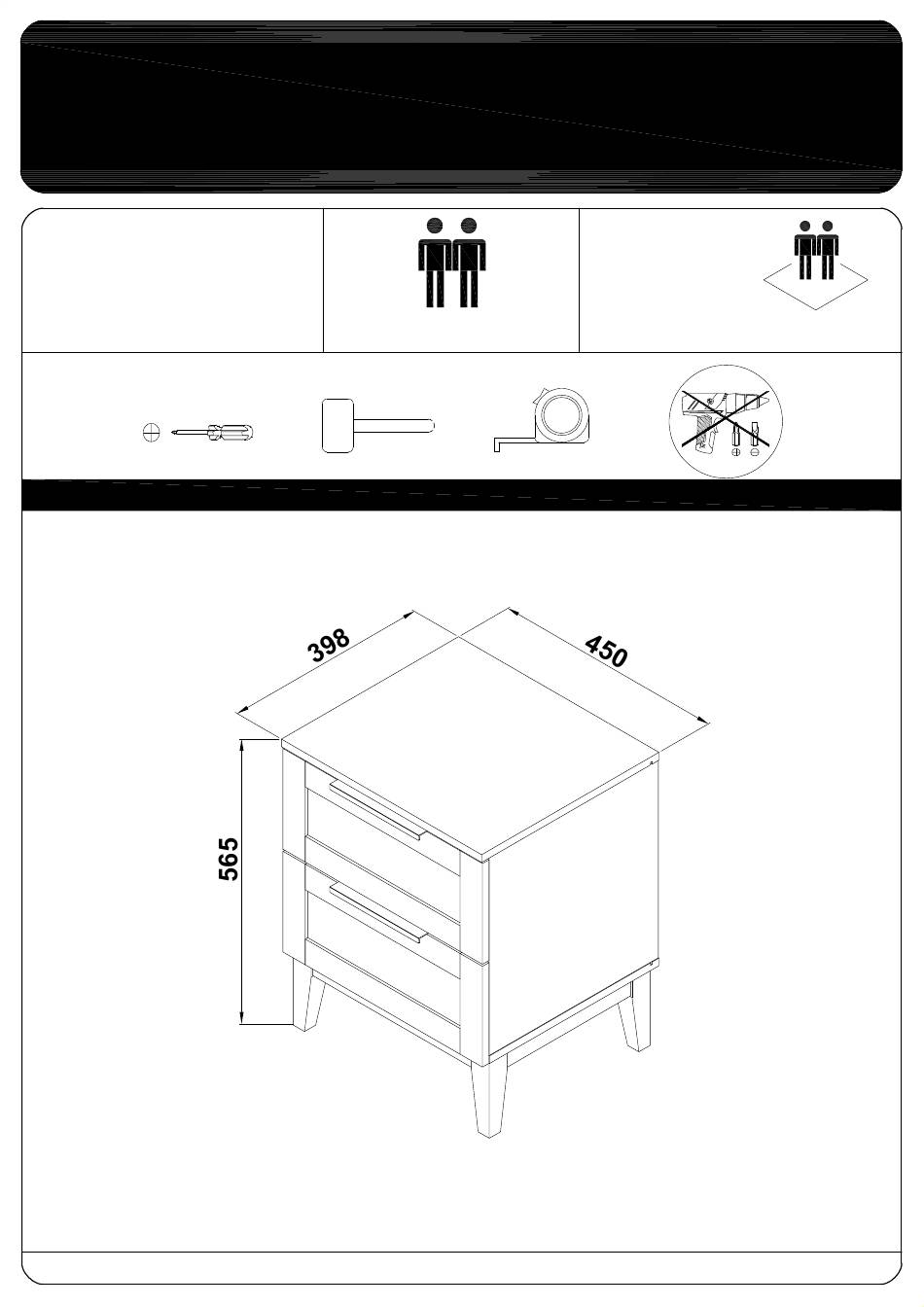

- Page 1 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) FLOOR AREA 1.2M X 1.6M 45 MINS 2 PERSON REQUIRED ASSEMBLY SPACE APPROXIMATE ASSEMBLY TIME ASSEMBLY REQUIRED ASSEMBLY TOOLS MEASURE POZI SCREWDRIVER HAMMER MEASURING TAPE DRILL ASSEMBLED DIMENSIONS ASSEMBLED DIMENSIONS 1/17 CA8344M1710J00-01...
- Page 2 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) Important : Please read these instructions carefully before use and keep for future reference. ¥ This product is intended for domestic use only and is not designed for commercial use. ¥ DO NOT assembly / use this item if any components are missing or damaged. Please contact the retailer straight away.
- Page 3 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) Assembly Tips: For larger items, please ensure that you have sufficient space and people (as indicated on page 1) to assembly your product safely. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Page 4 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) Tips before you start: QUICKFIT QUICKFIT Shoulder Tighten quickfit until shoulder is flush with panel. Do not overtighten or undertighten. CAM LOCK CAM LOCK CORRECT WRONG When fitting cam lock, ensure starting position is correct before you insert connecting quickfit. Quickfit head should be in the centre of the cam lock...
-
Page 5: Top View
TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) Before you insert the drawers into the frame, please ensure that the ball bearing sliders (on the assembled unit) have been placed to the front of the main unit. If the bearings are in the middle of the slider it will be difficult to install the drawers correctly. - Page 6 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) NOTE: CAUTION When removing the drawer,be careful to tip up the safety release tab on the left side,and tip it down on the right side to remove the drawer from the body as shown. 6/17...
-
Page 7: Part List
TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) PART LIST: 7/17... -
Page 8: Hardware List
TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) HARDWARE LIST A X24 B X4 CSK SCREW CSK SCREW JCBC(W) SCREW WOOD DOWEL M3.5 X 12MM M3.5 X 15MM M6 X 40MM Ø6 X 20MM E X14 9047975 BOLT DOWEL WOOD DOWEL DU319 20X5MM Ø8 X 25MM 9064684 CAM 15/15... - Page 9 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) STEP 1 Insert dowel (D) into panels (9 & 10) and insert dowel (E) into panels (1 , 2 , 5, 6 & 7) as shown. D X8 E X14 STEP 2 Take all panels (3 , 5 & 8), using a phillips head screw driver CAM PINS (F) as shown. 9/17...
- Page 10 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) STEP 3 Attach drawer side (9 & 10) to drawer front (8) using CAM LOCKS (H) as shown. 180° H X4 STEP 4 Slot the drawer bottom (12) into the drawer body. 10/17...
- Page 11 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) STEP 5 Attach drawer back (11) to drawer side (9 & 10) using 40mm Screw (C) as shown. Note: Its important not to over-tighten screws on the drawer sides until all sides are aligned and the drawer base is inserted. Tighten screws fully once base is inserted correctly.
- Page 12 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) STEP 7 Attach the drawer glide insert (Z2) to the drawer side (9 & 10) with the 12mm screw (A), ensuring the correct holes as shown in diagram. Z2 X2 STEP 8 Attach drawer glide casing (Z1) to panels (1 & 2) using screw 12mm (A) as shown.
- Page 13 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) STEP 9 Attach panel (4) to panels (1 & 2) using 40mm Screw (C) as shown. C X4 2 PERSON STEP 10 Attach panel (5) to panel (6) using cam locks (G) as shown. Tip : Cams should be pushed deeply into the hole, they dont sit flush with the panel, this will ensure correct placement over the quickfit screw before they are tightened.
- Page 14 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) STEP 11 Attach panel (7) to panel (5) using cam locks (G) as shown. Note: Do not overtighten the cams as it may cause damage to the legs. 180° G X4 STEP 12 Attach panels (5 , 6 &...
- Page 15 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) STEP 13 Slot back panel (13) to frame. STEP 14 Attach top panel (3) to body frame.Fasten into place using CAM LOCKS (G) as shown. Note: Please always ensure cam's are correctly locked to secure and support your item. Refer to Camlock guidelines at the beginning of this manual for further information.
- Page 16 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) STEP 15 Insert the completed drawer boxes into the frame. · PUSH THE ROLLER OF Z1 TO THE FRONT SIDE OF THE BODY. · PUSH IN LEFT & RIGHT SIDE OF THE DRAWER INTO THE BODY SIMULTANEOUSLY.
- Page 17 TENLEY 2 DRAWER BEDSIDE ITEM CODE: 8314-WHT(8344) STEP 16 Attach backply stopper (L) to back panel (13) as shown using 15mm screw (B). Note: It is really important to attach the backply stoppers correctly as this will help with the overall structure and stability of the item.
-
