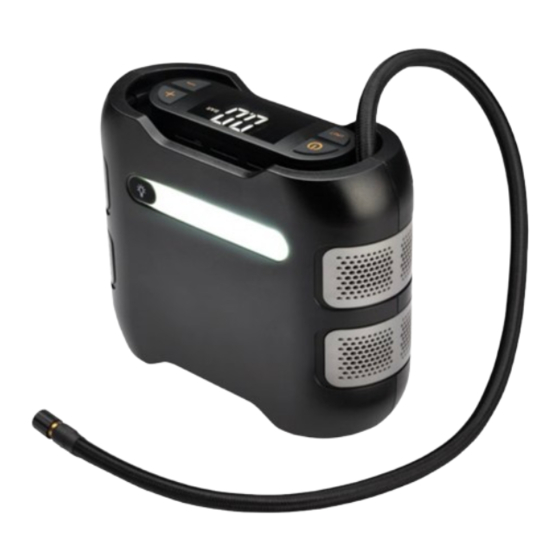

- Page 1 Original Instructions Version 1 12V DIGITAL AIR COMPRESSOR 23624...
- Page 2 All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product.
- Page 3 2. Contents 1. Preface 1.1 Product Reference 1.2 Revisions 1.3 Understanding the Safety Content of This Manual 1.4 Copyright © Notice 2. Contents 3. Product Introduction 3.1 Intended Use 3.2 Specification 4. Health and Safety Information 4.1 General Safety Instructions for Compressors 4.2 Residual Risk 5. Identification and Unpacking 5.1 Product Overview 5.2 What’s in the Box? 5.3 Packaging...
- Page 4 Any other application beyond the conditions It includes an accessory kit for inflating air beds, established for use will be considered misuse. Draper inflatable toys, footballs, paddling pools and beach Tools accepts no responsibility for improper use of this balls.
- Page 5 Check the service until it has been repaired or replaced. manufacturer’s information before every use Contact Draper Tools for repair and and continually monitor the item during replacement options. inflation. Over inflation could result in the item bursting or personal injury.
- Page 6 5. Identification and Unpacking 5.1 Product Overview (10) (12) (14) (13) (15) (12) (11) Air compressor Torch button Power button (10) LED torch LED display screen (11) 12V DC adaptor & cable (+) Increase pressure button (12) Adaptor & cord storage compartment Screen (-) Decrease pressure button Air hose...
- Page 7 If any part is occurred during shipment. damaged or missing, do not attempt to use the product. Please contact the Draper Helpline; contact details can be found at the back of this manual. 1 x Air compressor with air hose...
- Page 8 6. Operating Instructions 6.2 Using the Compressor Important: Before operating this product, read and understand all the safety instructions listed in this manual. Important: Always follow the manufacturer’s recommendations for the pressure levels. For vehicles this is often located on the inside of the door. For bikes check the marking on the tyres.
- Page 9 6. Operating Instructions 6.4 Using the Inflation Adaptors Fig. 5 Fig. 6 5. Use the (+) (4) and (-) (5) buttons to select the required Use the adaptors for inflating footballs, beach balls, air pressure level. beds and inflatable toys. Note: On ‘manual’...
- Page 10 7. Maintenance and Troubleshooting 7.2 Fuse Replacement Important: Any maintenance and repairs should be carried out only by authorised and suitably qualified • A spare fuse for the adaptor is supplied with the personnel. compressor. 7.1 General Maintenance 1. To replace the fuse, unscrew the cap on the head of the adaptor (11).
- Page 11 Helpline for details of your nearest authorised agent. where possible. DO NOT dispose of this product with domestic waste; Draper Tools will endeavour to hold any spare parts, if applicable, for seven years from the date that it sells the most local authorities provide appropriate recycling final matching stock item.
- Page 12 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 General Fax: +44 (0) 23 8026 0784 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited © Published by Draper Tools Limited...
