Before programming your thermostat you should be familiar with the display of the unit
1
2
3
4

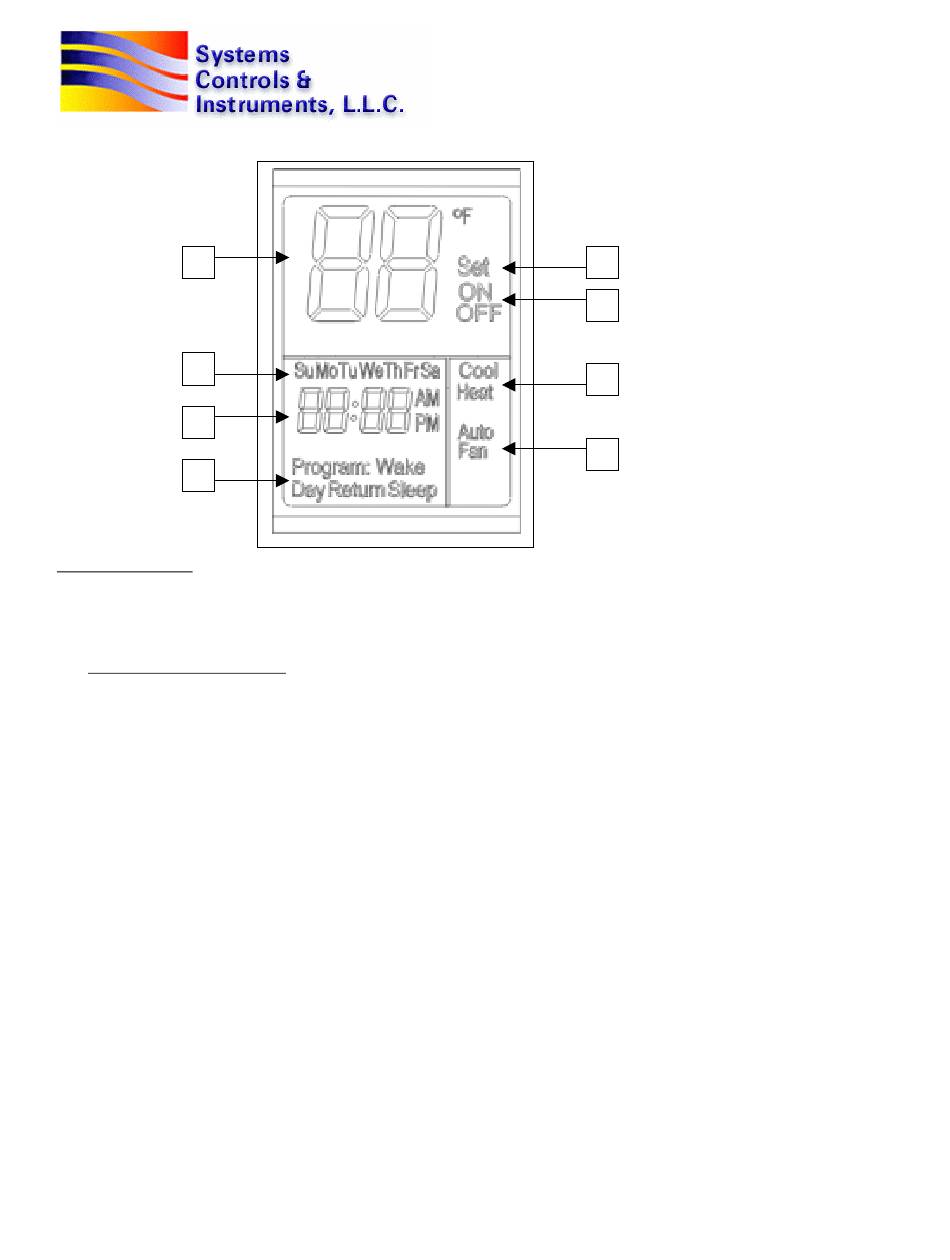

Thermostat Display
1. Temperature digits, in normal display will show the temperature in the room. When +/- are pressed, it will flash ,
and the show the set point.
2. Days of the week: (when setting the program.). It will display the period that you are setting. Example: when display shows:
MON-TUE-WED-THU-FRI, you are setting the week days program. (The program will repeat on each of these days).
In normal display the actual program will show.
3. Real time clock , AM/PM. When setting the program, "COOL" or "HEAT" will display showing
witch set point you are setting.
4. Program that you are setting:
- Wake - program 1.
- Day - program 2.
- Return - program 3.
- Sleep - program 4.
5. When changing the temperature set point, the temperature digits will flash, and the "SET" will appear in the display.
6. ON-OFF , thermostat active or deactivated.
7. MODE, Heat , Cool. When both in the display , AUTOCHANGE (heat+cool)
8. Fan Mode, when the display shows "FAN" that is Fan ON. When "AutoFan" displays it is Auto Fan mode.
File: ETN-24-PROG book - page letter
Rev: 1
- 7 -
Pipersville, PA 18947 USA
Phone: 215-766 1487 Fax: 215-766 1493
Email: info@scillc.com - www.scillc.com
5
6
7
8
Date: 24-06-2002
