EUROCHEF - PRO WALL HOOD

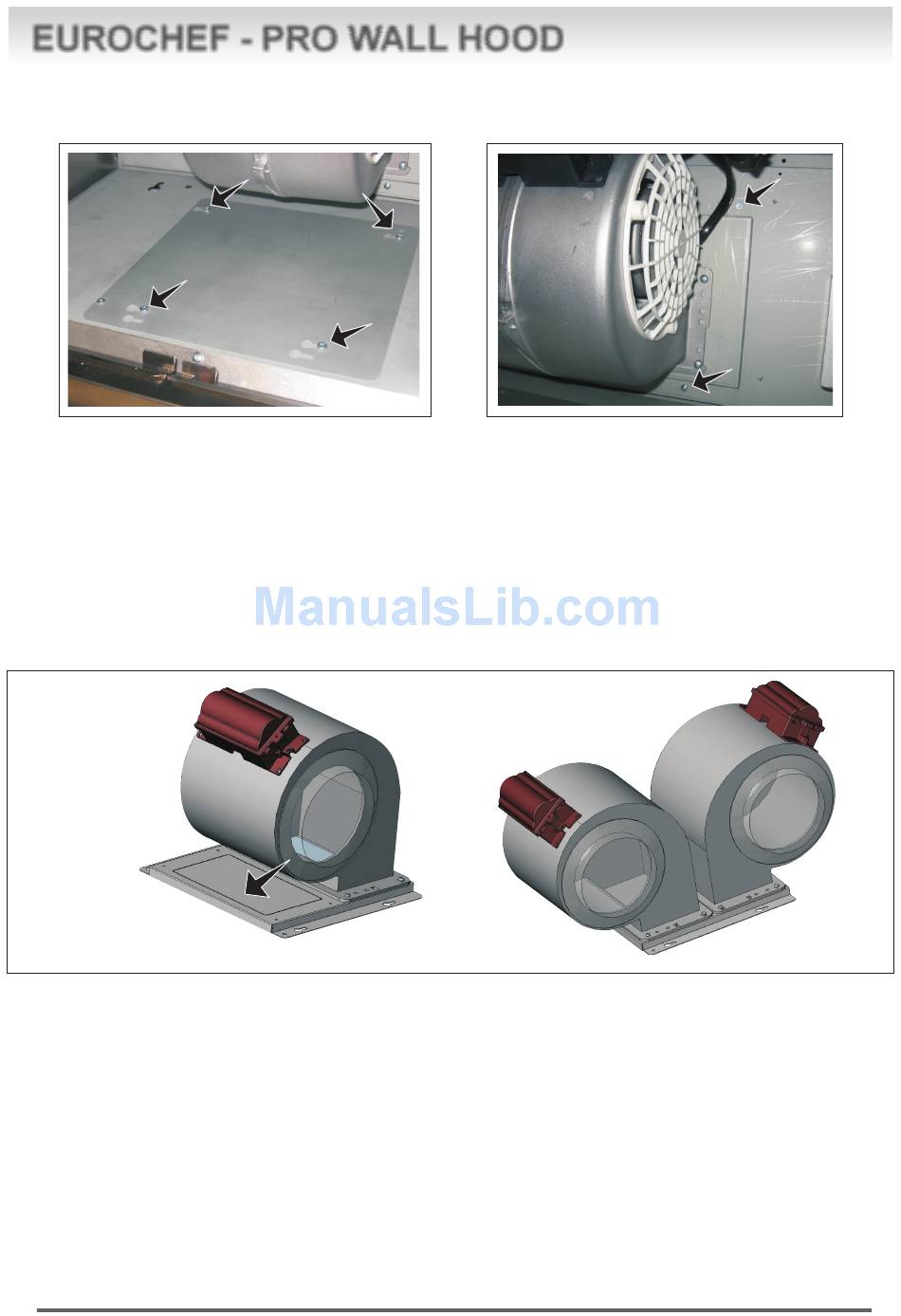

IF CHANGING BLOWER POSITION
1. Disconnect motor from power supply
2. Remove Blower security screw from blower bracket and
remove blower.
3. Loosen 4 screws from blower bracket.
4. Shift blower to right and Remove Blower.
5. Loosen 4 screws and remove sealing plate covering back
venting hole.
6. Reverse this procedure in new locations.
7. Reconnect blower to power supply.
BLOWER UPGRADE KIT 30" AND 36" HOODS
"A"
: remove bracket knock out
before fixing 2 motor
nd
1. Follow steps 1, 2, 3, 4 above.
2. Remove blower from bracket
3. Remove knockout from blower bracket
4. Re-attach blower and blower upgrade kit with screws
provided.
5. Re-attach blower to top of hood only. Double Blowers may
not be installed on back of hood.
6. Tighten 4 screws, and screw in one security screw.
7. Each Blower must be connected to the hood power supply.
Air-2
A

SECURITY SCREW

WARNING:
• disconnect the motor before changing position; reconnect
after it is moved.
ATTENTION:
Débrancher le moteur avant de changer de position, rebrancher
après le changement de position
9
