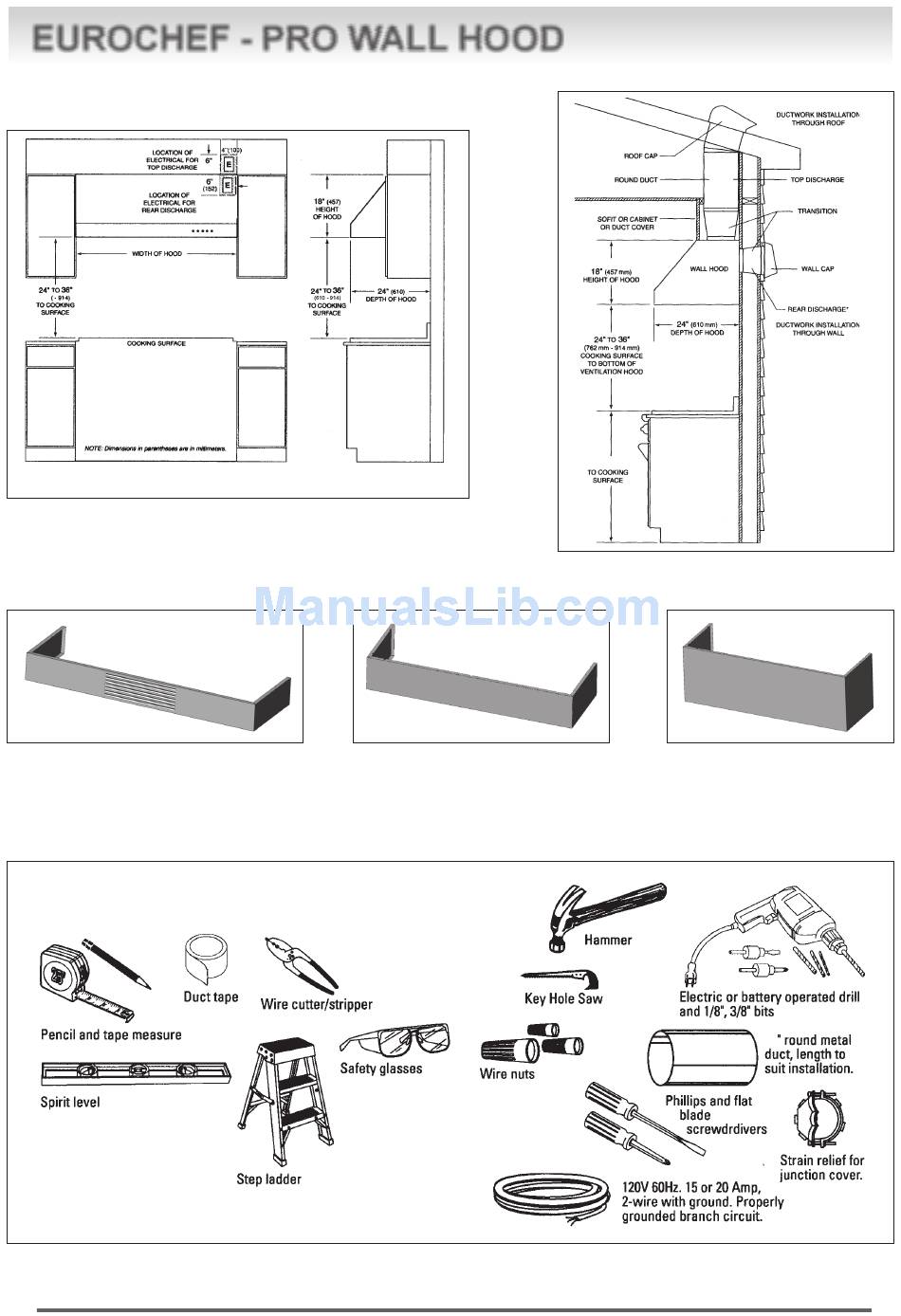

EUROCHEF - PRO WALL HOOD

ADVANCE PLANNING

Cabinetry and electrical placement for 24-inch deep wall hoods.

USING DUCT COVER ACCESSORIES

To avoid gaps, plan the hood installation height for duct cover use.
Recirculating Kit Cover 4" (if used)
1. Duct covers and Recirculating Kit covers are stackable.
2. The hood is 18" tall and can be installed from 24" to 36" above cooking surface (30" to 36" is optimum).
3. Locate hood so that duct covers and Recirculating Kit Cover (If used) leave no gap between hood and ceiling.
TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED)
Air-2
36" (914 mm)
Duct cover 6"
lnstallatian
dimensions
for 24 deep
wall hoods.
Duct cover 12"
