EUROCHEF - PRO WALL HOOD
STEP 1 DETERMINE HOOD, DUCTWORK
AND WIRING LOCATIONS
• Use a level to draw the cooktop centerline vertically up the
wall to the ceiling.
• Measure desired distance from the bottom of the hood to
the cooking surface, 24" min. to 36" max.
Note: If installing with Duct Cover Kit or Recirculating Kit, see
"Using Duct Cover Accessories", pg 5 to eliminate gaps at ceiling.
• Use a level to draw a straight horizontal pencil line
indicating the bottom of the hood.
FOR VERTICAL (Straight Up) DUCTING:
• Affix enclosed paper template to wall.
• If venting out the ceiling, extend the centerline forward on
the ceiling or soffit.
• Locate the centerline of a 8-1/2" diameter hole on the ceiling
or soffit by measuring 6" from the wall.
FOR DUCTING THROUGH WALL PLEASE SEE
TEMPLATE:
Use template to identify wall exit hole location, wood wall bracket
location, and wiring location.
STEP 2 PREPARE HOOD FOR
INSTALLATION
Air-2

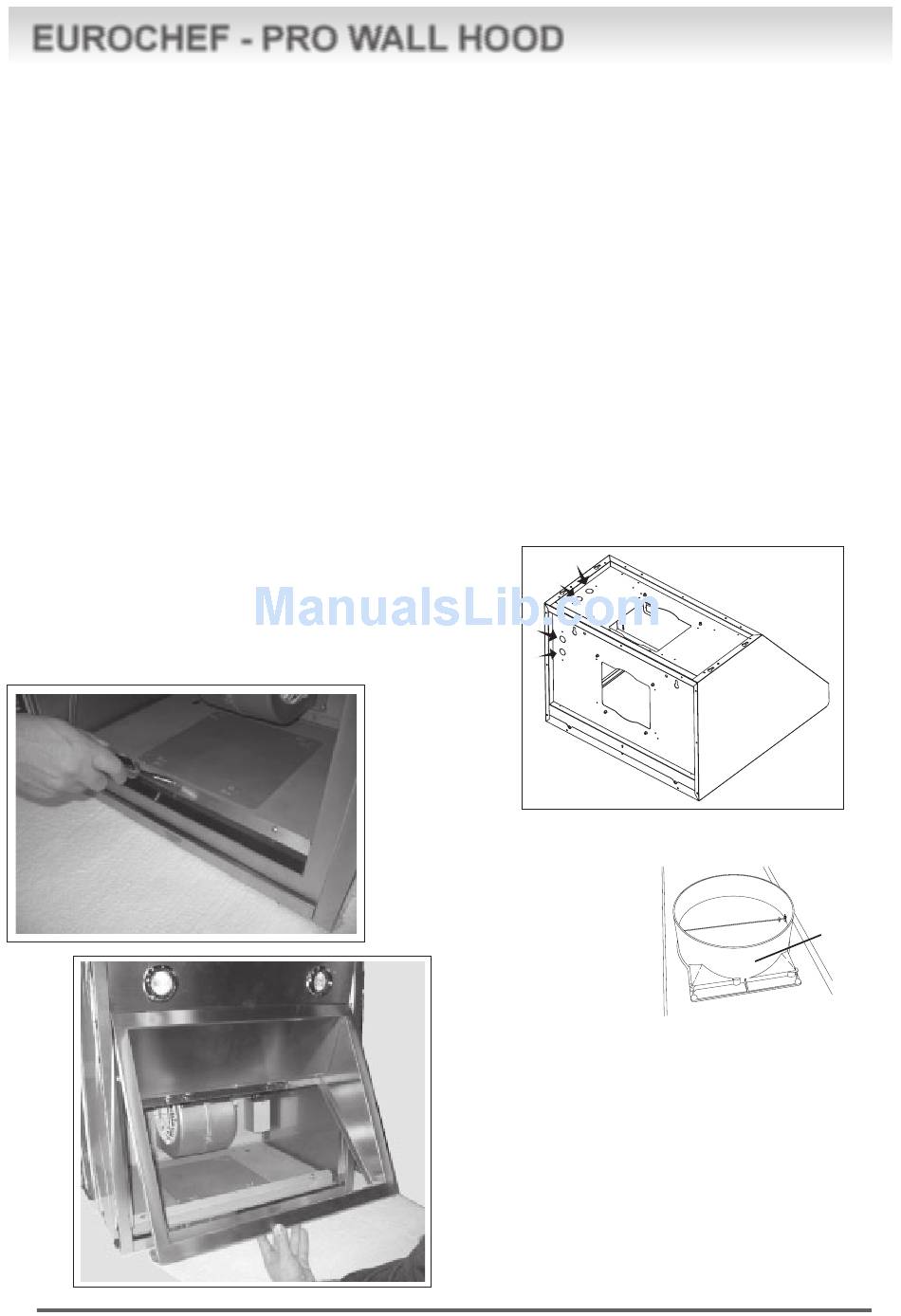

REMOVE FILTER FRAME
- Remove Filter Frame per photographs
- Store Filter Frame in safe place so it will not be damaged.
- Do not loose the Filter Frame screws, re-screw them loosely,
back into the hood.
OTHER PREPARATIONS
• Move blower to back if necessary.
• Install transition to top or back.
• If using Recirculating Kit, affix 90° transition from kit. Must
install the hood to the wall. (step 3A)
• If using Warming Lamps Kit: install kit now or later.
• If using Blower Upgrade Kit ( 30"-36" only): install kit now or
later.
• Move junction box from top to back if preferred.
• Install strain relief in junction box

JUNCTION BOX LOCATION:

• The junction box is fastened to the top of the hood. Relocate
to back if preferred.
• Remove junction box cover and one knockout.
Install strain relief.
Install Transition Onto Top or Back of Hood
IMPORTANT:
Remove shipping tape
from damper and
check that damper
moves freely.
• Place the transition piece over the hood exhaust and secure
with 4 screws provided.
• Use duct tape to seal the connection. Check to be sure the
damper moves freely.
Duct Transition
Top of Hood
7
