Inline Spray Handle - Flowzone ZEPHYR FZSATJ-3 Operation Manual

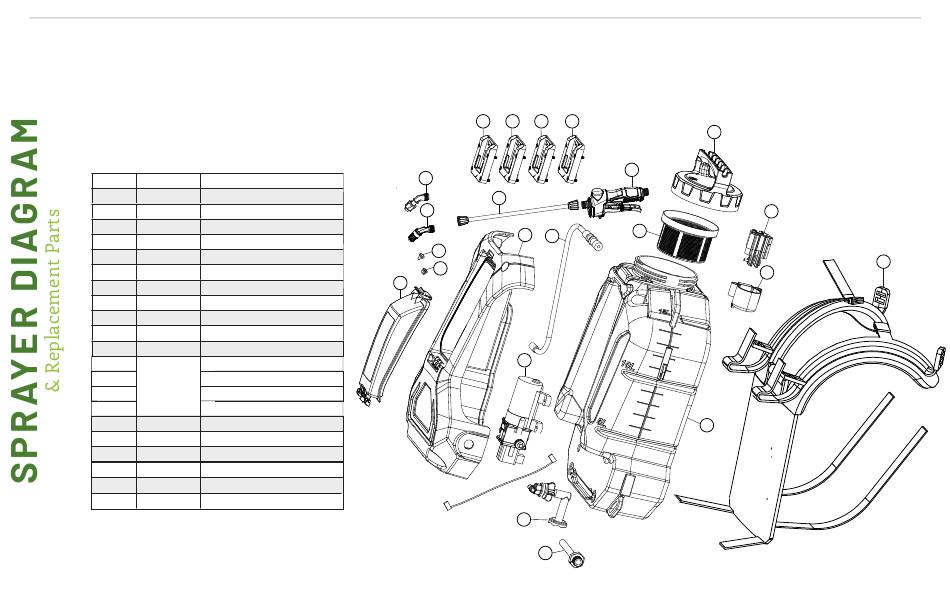

ZEPHYR TOOL ONLY
OPERATION GUIDE
FZSATJ-3TO
1 FZRARV Tank Lid with Wand Holster
FZRABW
Tank Strainer
2
FZRAMZ 4-Gallon Tank
3
FZRANL
4 Upper Holster
FZRANK
5 Lower Holster
Pump
6 FZRATL
FZRAOG
7 Pump Outlet Hose & Nut
8 FZRAGK Pump Inlet Filter
9 FZAATA FlowZone QuickSwap™ Battery Adapter
10 FZAATB DeWalt/Milwaukee QuickSwap™ Adapter
11 Makita QuickSwap™ Adapter
FZAATC
Bosch QuickSwap™ Adapter
12
FZAATD
13 45° Fan w/ 45° Base Assembly
14 Adjustable Cone w/ 45° Base Assembly
FZRASV
15 0° Pin Stream Nozzle Tip
16 80° Fan Nozzle Tip
17 FZRAQX-V1

Inline Spray Handle

18 FZRADK 18-in. Carbon Fiber Wand
19 FZRAOF 5-ft. UV-Resistant Hose
20 FZRATK Backpack Straps
21 FZRAEG Battery Door Assembly
22 FZRATM
Front Cover Plate
TOOL ONLY VERSION
FZSATJ-3TO
9 10 11
13
18
14
22
19
15
16
21
6
8
7
- 24 -
12
1
17
2
3
© WESSOL, LLC
4
20
5
