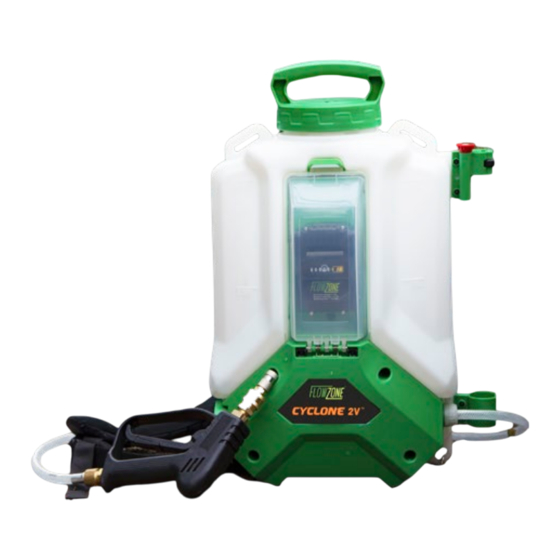

- Page 1 OPERATION GUIDE “patent pending” FZVAAJ-2 “CYCLONE 2V” 4-GALLON VARIABLE PRESSURE LITHIUM-ION BACKPACK SPRAYER...
- Page 2 If there is pressure in the pump, do not try to remove it with tools. Do not try to make modifications to the sprayer. Always use FlowZone branded replacement parts from the manufacturer.
- Page 3 You have chosen one of the leading battery-powered, multi-purpose sprayers available today! LET’S This sprayer can spray any number of solutions and solvents for both home and professional use. Please read and follow this manual carefully to ensure that you get the most out of your new sprayer.
- Page 4 WARNINGS SPECIFICATIONS important considerations to follow sprayer capabilities and specifications TROUBLESHOOTING INSIDE resolving common issues what’ s included in the box SET UP PARTS assembling your new sprayer upgrades and commonly replaced parts SPRAYING WARRANTY getting started with your new sprayer WESSOL limited warranty AFTERCARE proper cleaning and storage instructions...
- Page 5 WHAT IS YOUR SPRAYER CAPABLE OF? This FlowZone sprayer is a highly efficient sprayer that is suitable for spraying many kinds of chemicals and solutions. This includes fertilizers, pesticides, cleaning products, etc. Never operate the sprayer with strong acids, strong bases or flammable liquids. Powered by a 18V lithium-ion battery, this sprayer results in 7x more efficiency than a manual sprayer.
- Page 6 C YCLONE 2V 1. 4-GALLON TANK 2. TANK CAP 3. INTAKE FILTER WHAT’S IN 4. TOP & BOTTOM HOLSTER / BOLTS 5. BACKPACK STRAPS 6. HIGH PRESSURE SPRAY WAND 7. THREADED HOSE THE BOX? 8. 18V/2.6A LITHIUM-ION BATTERY 9. BATTERY CHARGER 10.
- Page 7 STEP 1. Set up as a backpack sprayer: Remove the nuts and bolts, holster, and nozzles from liquid intake filter. Attach holster to tank and tighten with the nuts and bolts. Place nozzles in the holster for easy access. Attach the high pressure spray wand to the spray gun by pulling down on quick-connect collar and inserting the wand.
- Page 8 STEP 2. Preparing to spray: Fully charge the battery prior to first operation. NOTE: The flashing green light on charger indicates that battery is charging when all lights stop flashing, the battery is fully charged. Fill the tank with pre-prepared liquid through the intake filter and securely tighten the tank cap.
- Page 9 STEP 3. After you finish spraying: Rinse out the solution you sprayed with water and spray water through the sprayer for 3-5 minutes to completely rid the tank of the chemicals. NOTE: Many spray materials will harden if left in the sprayer and clog the nozzle, or hose. Never use gasoline to clean out the sprayer.
- Page 10 Do not dispose of lithium-ion battery with household waste; recycle where facilities exist. The sprayer is susceptible to water damage if left in wet conditions. Always store it in a cool, dry place. Always use FlowZone® original replacement parts. Copyright © WESSOL, LLC Copyright © WESSOL, LLC...
- Page 11 POSSIBLE REASON(S) SOLUTION Battery is not charged. Charge battery. Sprayer does not turn on. Contact FlowZone® Support at +1 (803) Loose wire. 339-2500 for service. Remove screws and remove the Input and/or output hose(s) plastic covering to expose pump. Leaks from tank area.
- Page 12 Copyright © WESSOL, LLC Copyright © WESSOL, LLC...
- Page 13 FZAAEL ACCESSORY & REPLACEMENT PARTS FZRAED FZAADL FZRAES FZAABC FZAAAZ FZAACC PRODUCT NAME FZRAED Backpack straps FZAAEN 18V/2.6A battery pack FZAAEP 21V/1A battery charger FZAABC Trolley FZAAAZ Trolley & 20’ extension hose kit FZAADL Quick-connect to 11/16” threaded FZAAEM female adaptor FZRAEF FZAACC Garden hose connector...
- Page 14 FZRAEK FZRAAS FZAAAP FZAAAR FZRAEJ FZAAAQ FZRABV FZRAEG FZRAEH PRODUCT NAME FZRAAS Stainless steel high-pressure wand FZAAAR Quick-connect adjustable cone nozzle FZAAAQ Quick-connect 25º fan nozzle FZAAAP Quick-connect 0º jet nozzle FZRACM FZRABW FZRABV Quick-connect spray gun FZRAEJ Top wand holster FZRAEK Bottom wand holster FZRAEH...
- Page 15 FLOWZONE® LIMITED WARRANTY Copyright © WESSOL, LLC...
- Page 16 WESSOL, LLC warrants (to the original purchaser) that this product will continue to function as intended if used in accordance with operating instructions (under normal consumer use) for a period of one year. If the product fails to function as intended, DO NOT RETURN TO STORE; call our customer support hotline at +1 (803) 339-2500 , email warranty@wessol.com, or fill out the form at fzspray.com/warranty-claims.
- Page 17 fzspray.com +1 (803) 339-2500 spraysquad@fzspray.com WESSOL, LLC 6420 Rea Rd. Suite A1-104 Charlotte, NC 28277 Copyright © WESSOL, LLC...
