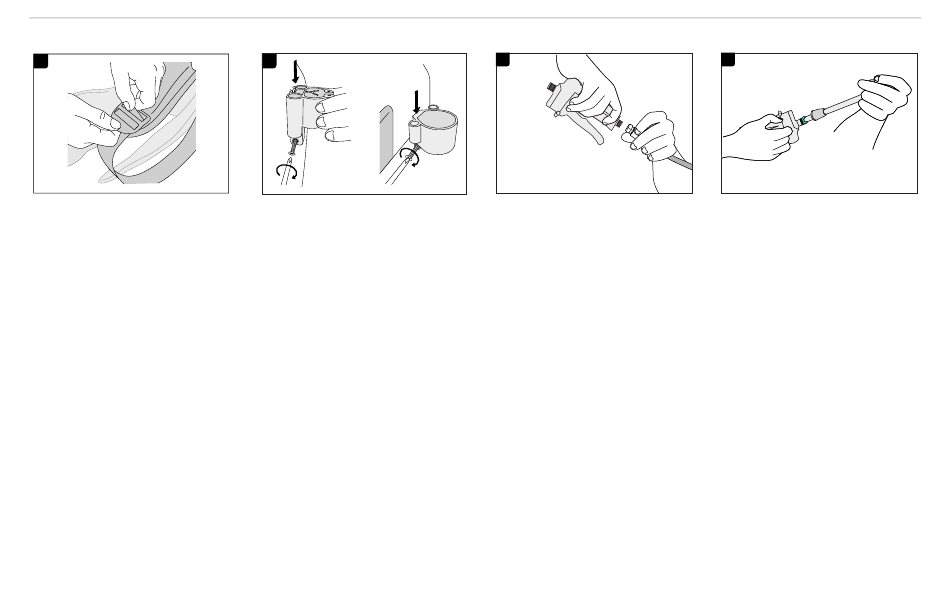

4
If the shoulder straps
arrive detached, attach the
bottom to the adjustable
buckle using the same
method as before.
5
A B
Slide the top wand holster
onto protruding holster
mount on the sprayer tank.
Insert a nut on one side of the
hexagonal slot on the bottom
of the holster and screw
the bolt through the other
side using a Phillip' s head
screwdriver until the bolt
fastens into the nut. Repeat
for the bottom holster/slot.
6
Take the inline spray handle
(10) and attach it to the
threaded fitting on the end
of the hose (12). Tighten
the fitting to ensure the
gasket properly seals the
connection.
- 11 -
© WESSOL, LLC
7
If spraying with the carbon
fiber spray wand (9), thread
either end of the wand
to the spray handle male
threads. Make sure the
o-ring sits flush with the
threads, and then twist the
cap into place.
